SELECT A DIAGRAM
1 - Cabinet & Components

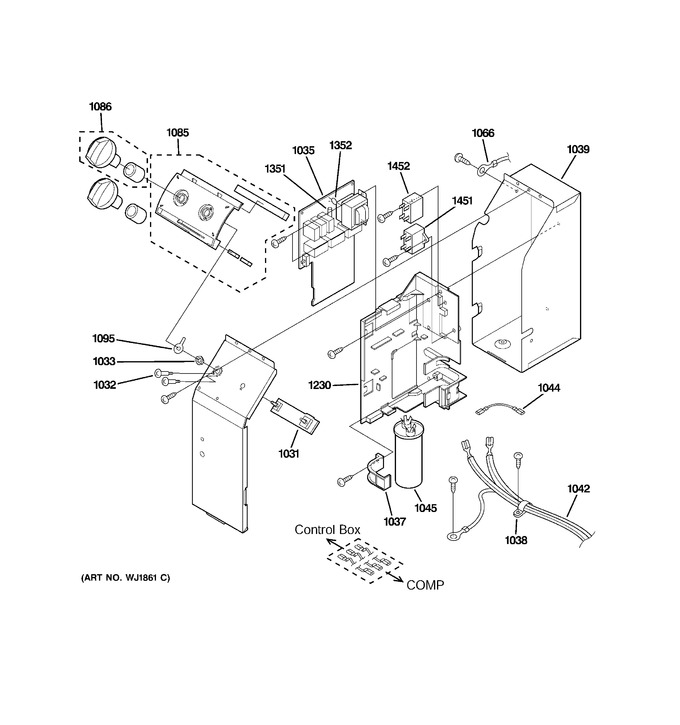

2 - Control Parts
3 - Sealed System & Components
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1031 | WJ29X10014 | Main Swt Asm |
|
- | |||||
| 1032 | WJ01X10032 | Special Screw |
|
- | |||||
| 1033 | WJ01X10042 | Special Nut |
|
- | |||||
| 1035 | WJ28X10039 | Control Unit |
|
- | |||||
| 1037 | WJ03X10027 | Capacitor Clamp |
|
- | |||||
| 1038 | WJ03X10006 | Wire Holder |
|
- | |||||
| 1039 | WJ76X10232 | Control Box |
|
- | |||||
| 1042 | WJ35X10090 | Power Cord |
|
- | |||||
| 1044 | WJ37X10021 | Lead Wire |
|
- | |||||
| 1045 | WJ20X10110 | Run Capacitor |
|
- | |||||
| 1066 | WJ37X10001 | Lead Wire |
|
- | |||||
| 1085 | WJ11X10019 | Knob Base |
|
- | |||||
| 1086 | WJ12X10072 | Control Knob Asm |
|
- | |||||
| 1095 | WJ28X10022 | Temp. Control Cover |
|
- | |||||
| 1230 | WJ01X10139 | Pwb Holder |
|
- | |||||
| 1351 | WP23X10003 | Fuse |
|
- | |||||
| 1352 | WP27X10002 | Varistor |
|
- | |||||
| 1451 | WJ20X10115 | Fan Mtr Capacitor |
|
- | |||||
| 1452 | WJ20X10116 | Fan Mtr Capacitor |
|
- |
