1 - Cabinet & Components

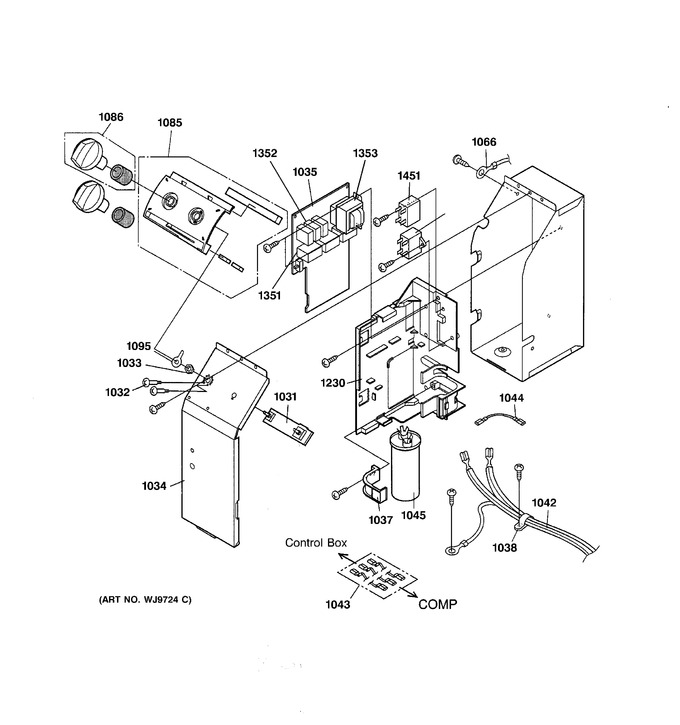

2 - Control Parts
3 - Sealed System Components
4 - Mounting Parts & Frame
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1031 | WJ29X10013 | Operation Unit |
|
- | |||||
| 1032 | WJ01X10032 | Special Screw |
|
- | |||||
| 1032 | WJ23X10003 | Wire Netting |
|
- | |||||
| 1033 | WJ01X10042 | Special Nut |
|
- | |||||
| 1034 | WJ79X10063 | Control Box Cover |
|
- | |||||
| 1035 | WJ26X10040 | Control Unit |
|
- | |||||
| 1037 | WJ03X10027 | Capacitor Clamp |
|
- | |||||
| 1038 | WJ03X10010 | Wire Holder |
|
- | |||||
| 1042 | WJ35X10008 | Power Cord |
|
- | |||||
| 1043 | WJ27X10038 | Comp. Wiring |
|
- | |||||
| 1044 | WJ37X10021 | Lead Wire |
|
- | |||||
| 1045 | WJ20X10007 | Running Capacitor |
|
- | |||||
| 1066 | WJ37X10001 | Lead Wire |
|
- | |||||
| 1085 | WJ12X10050 | Knob Base |
|
- | |||||
| 1086 | WJ12X10048 | Control Knob Ass'y |
|
- | |||||
| 1095 | WJ28X10022 | Temp. Control Cover |
|
- | |||||
| 1230 | WJ01X10139 | Pwb Holder |
|
- | |||||
| 1351 | WJ23X10008 | Fuse, Trans. Primary |
|
- | |||||
| 1352 | WJ27X10008 | Varistor |
|
- | |||||
| 1353 | WJ27X10009 | Transformer |
|
- | |||||
| 1451 | WJ20X10018 | Fan Motor Capacitor |
|
- |
