SELECT A DIAGRAM

1 - Grille, Heater & Base Parts


2 - Motor & Chassis Parts

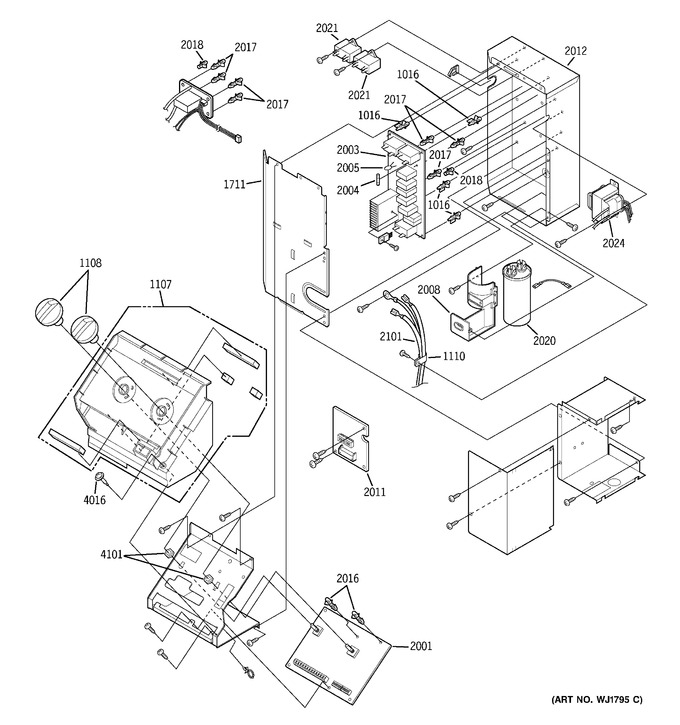

3 - Control Parts


4 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1016	WP01X10010		Spacer		Appelez-nous	-
1107	WP07X10004		Knob Base K		Appelez-nous	-
1108	WJ12X10009		Control Knob Ass'y		Appelez-nous	-
1110	WJ03X10006		Wire Holder		Appelez-nous	-
1711	WP79X10012		Control Box F		Appelez-nous	-
2001	WP26X10016		Mode & T-start Pwb		Appelez-nous	-
2003	WP26X10024		Drive Pwb		Appelez-nous	-
2004	WP23X10009		Fuse,transformer Primary		Appelez-nous	-
2005	WP27X10015		Varistor		Appelez-nous	-
2008	WP03X10004		Capacitor Clamp		Appelez-nous	-
2011	WP07X10005		Knob Base Holder		Appelez-nous	-
2012	WP76X10025		Control Box		Appelez-nous	-
2016	WJ01X10157		Spacer		Appelez-nous	-
2017	WJ01X10155		Spacer		Appelez-nous	-
2018	WJ01X10043		Spacer		Appelez-nous	-
2020	WP20X10015		Running Capacitor		Appelez-nous	-
2021	WP20X10014		Capacitor For Fmo		Appelez-nous	-
2024	WP27X10029		Transformer		Appelez-nous	-
2101	WJ35X10052		Power Supply Cord		Appelez-nous	-
4016	WJ01X10059		Special Screw		Appelez-nous	-
4101	WJ01X10042		Special Nut		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
