SELECT A DIAGRAM

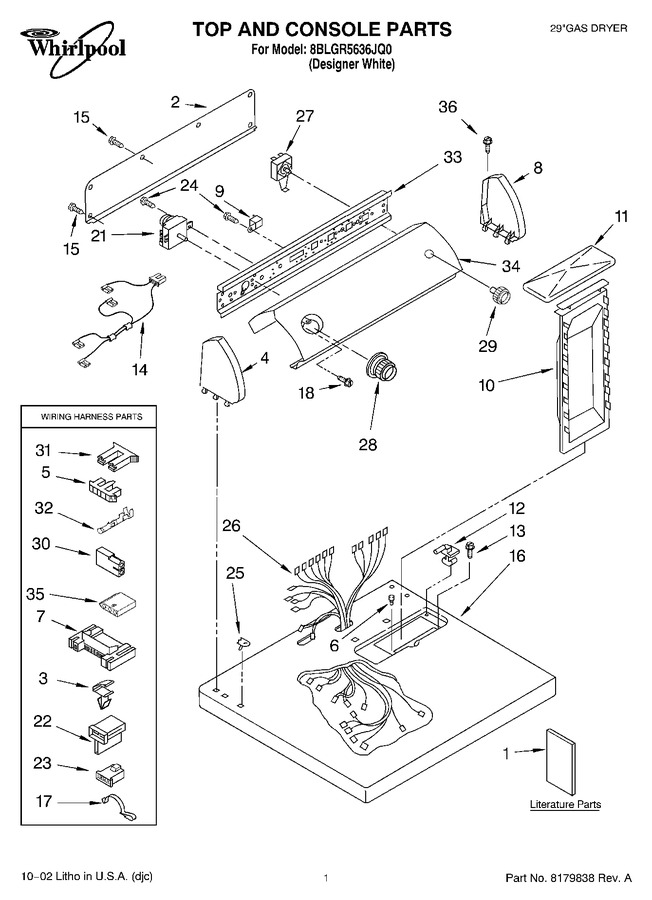

01 - Top And Console, Literature


02 - Cabinet


03 - Bulkhead


04 - 8318273 Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8528187		Literature Parts (wiring Diagram)		Appelez-nous	-
1	LIT8318415		Literature Parts (guide, Use & Care)		Appelez-nous	-
2	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 135.31
3	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
4	8271365		Cap, End (l.h.)		Appelez-nous	-
5	3397269		Connector, Timer				$ 25.55
6	297535		Bumper, Lint Lid		Appelez-nous	-
7	3395683		Housing, Connector (motor)			Immediately	$ 54.45
8	8271359		Cap, End (r.h.)		Appelez-nous	-
9	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
10	WP349639		Handle & Lint Screen Assembly   (Replaces: 349639)			Immediately	$ 37.21
11	8283378		Cover, Lint Screen				$ 44.80
12	WPW10044470		Hinge, R.h.   (Replaces: 3978605)				$ 8.11
12	WPW10044480		Hinge, L.h.   (Replaces: 3978606)				$ 8.11
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
14	3397692		Wire, Jumper		Appelez-nous	-
15	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.55
16	8271390		Top		Appelez-nous	-
17	WP98997		Clip   (Replaces: 98997)				$ 11.64
18	3400859		Screw, Grounding				$ 13.88
21	WP3976584		Timer Assembly (60 Hz.)   (Replaces: 3976584)				$ 380.18
22	WP3403499		Connector, 2-position Gas Valve   (Replaces: 3403499)				$ 6.02
23	WP3403498		Connector, 3-position (gas Valve)   (Replaces: 3403498)				$ 7.30
24	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 8.03
25	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.76
26	8299876		Harness, Wiring		Appelez-nous	-
27	3395384		Switch, Push-to-start		Appelez-nous	-
28	WP3957754		Timer Knob Assembly   (Replaces: 8312687)				$ 62.86
29	WP3957799		Knob, Push-to-start   (Replaces: 8271339)				$ 55.06
30	717252		Receptacle, 2 Way		Appelez-nous	-
31	3354925		Connector H-pod		Appelez-nous	-
32	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05
33	8271418		Bracket, Control				$ 57.15
34	8528130		Panel, Control		Appelez-nous	-
35	3936144		Connector (door Switch)				$ 21.22
36	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
36	4392065		Kit, Dryer Repair   (Replaces: 279948)			Immediately	$ 53.85
36	W11224254		Kit, Dryer Vent Testing   (Replaces: 8522199)				$ 12.34
36	3404351		Dry Rack				$ 89.81
36	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
36	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
36	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
36	WP388326		Screw, Console   (Replaces: 388326)				$ 9.29
	LIT677818		Manual, Do-it- Yourself Repair (dryer)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
