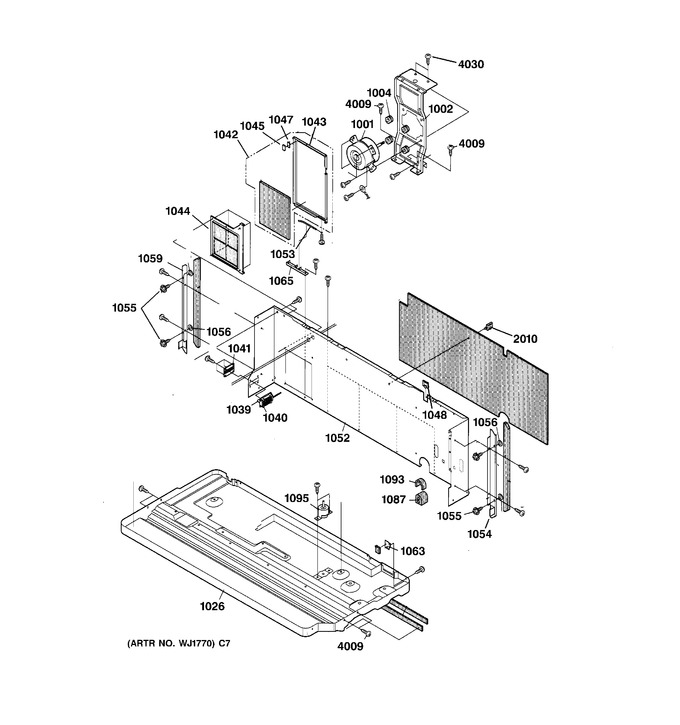

2 - Base & Chassis Parts
3 - Control Parts
4 - Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1001 | WP94X10085 | Motor-fan O.d. |
|
- | |||||
| 1002 | WJ65X10048 | Out Motor Angle |
|
- | |||||
| 1004 | WJ01X10034 | Motor Cushion |
|
- | |||||
| 1026 | WJ89X10059 | Base Pan Asm |
|
- | |||||
| 1039 | WJ14X10008 | Damper Lever |
|
- | |||||
| 1040 | WJ05X10014 | Damper Holder |
|
- | |||||
| 1041 | WJ80X10002 | Damper Cover |
|
- | |||||
| 1042 | WP70X10044 | Damper Asm |
|
- | |||||
| 1043 | WP70X10018 | Damper |
|
- | |||||
| 1044 | WP76X10002 | Frame |
|
- | |||||
| 1045 | WP01X10001 | Magnet |
|
- | |||||
| 1047 | WP01X10002 | Magnet Seal |
|
- | |||||
| 1048 | WJ03X10007 | Wire Holder |
|
- | |||||
| 1052 | WP76X10039 | Bulkhead |
|
- | |||||
| 1053 | WP01X10003 | Damper Wire |
|
- | |||||
| 1054 | WJ82X10023 | Cab. Angle Asm |
|
- | |||||
| 1055 | WP01X10004 | Special Screw |
|
- | |||||
| 1056 | WP01X10005 | Rubber Washer |
|
- | |||||
| 1059 | WJ82X10024 | Cab. Angle Asm Lh |
|
- | |||||
| 1063 | WP01X10006 | Supporter |
|
- | |||||
| 1065 | WJ82X10005 | Wire Angle |
|
- | |||||
| 1087 | WJ40X10006 | Bulkhead Insulator |
|
- | |||||
| 1093 | WJ40X10007 | Bulkhead Insulator |
|
- | |||||
| 1095 | WJ58X10017 | Drain Valve |
|
- | |||||
| 2010 | WP01X10009 | Cord Holder L |
|
- | |||||
| 4009 | WJ01X10037 | Special Screw |
|
- | |||||
| 4030 | WP01X10018 | Special Screw |
|
- |
