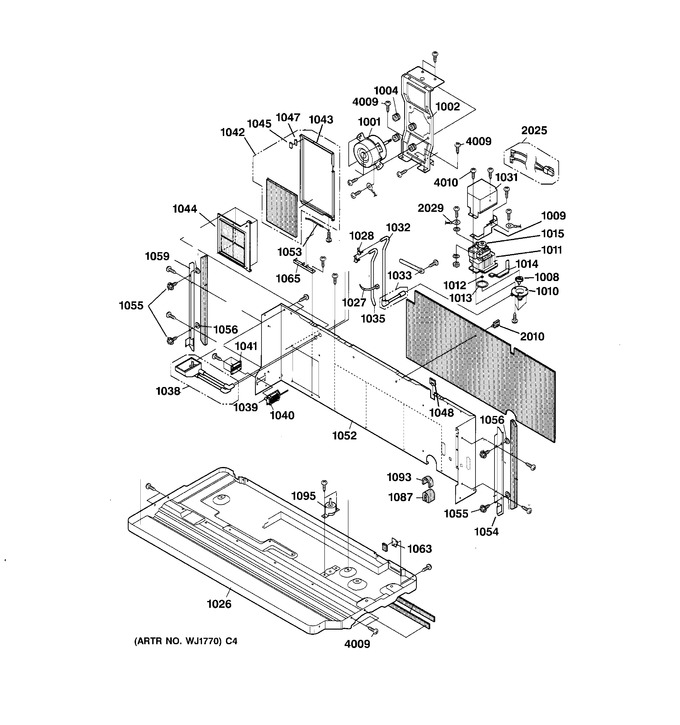

2 - Base & Chassis Parts
3 - Control Parts
4 - Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1001 | WP94X10097 | Fan Motor |
|
- | |||||
| 1002 | WJ65X10046 | Out Door Motor Mount |
|
- | |||||
| 1004 | WJ01X10034 | Motor Cushion |
|
- | |||||
| 1008 | WP73X10002 | Fan |
|
- | |||||
| 1009 | WP79X10005 | Pump Cover B |
|
- | |||||
| 1010 | WP76X10009 | P. Fan Housing |
|
- | |||||
| 1011 | WP76X10010 | P. Fan Housing |
|
- | |||||
| 1012 | WJ05X10015 | O Ring S |
|
- | |||||
| 1013 | WJ05X10016 | O Ring L |
|
- | |||||
| 1014 | WJ40X10008 | Pump Insulator |
|
- | |||||
| 1015 | WP94X10027 | Icr Pump Motor |
|
- | |||||
| 1026 | WJ89X10012 | Base Pan Assay |
|
- | |||||
| 1027 | WJ03X10012 | Wire Fixing Band |
|
- | |||||
| 1028 | WP03X10002 | Rubber Clamp |
|
- | |||||
| 1031 | WP79X10006 | Pump Cover |
|
- | |||||
| 1032 | WJ57X10001 | Suction Tube 2 |
|
- | |||||
| 1033 | WJ57X10002 | Suction Pipe K1 |
|
- | |||||
| 1035 | WJ40X10009 | Over Flow Tube 2 |
|
- | |||||
| 1038 | WJ46X10001 | Receiver Tank K |
|
- | |||||
| 1039 | WJ14X10008 | Damper Lever |
|
- | |||||
| 1040 | WJ05X10014 | Damper Holder |
|
- | |||||
| 1041 | WJ80X10002 | Damper Cover |
|
- | |||||
| 1042 | WP70X10013 | Damper Ass'y |
|
- | |||||
| 1043 | WP70X10014 | Damper |
|
- | |||||
| 1044 | WP76X10002 | Frame |
|
- | |||||
| 1045 | WP01X10001 | Magnet |
|
- | |||||
| 1047 | WP01X10002 | Magnet Seal |
|
- | |||||
| 1048 | WJ03X10007 | Wire Holder |
|
- | |||||
| 1052 | WP76X10003 | Bulkhead |
|
- | |||||
| 1053 | WP01X10003 | Damper Wire |
|
- | |||||
| 1054 | WJ82X10023 | Cab. Angle Ass'y |
|
- | |||||
| 1055 | WP01X10004 | Special Screw |
|
- | |||||
| 1056 | WP01X10005 | Rubber Washer |
|
- | |||||
| 1059 | WJ82X10024 | Cab. Angle Ass'y Lh |
|
- | |||||
| 1063 | WP01X10006 | Supporter |
|
- | |||||
| 1065 | WJ82X10005 | Wire Angle |
|
- | |||||
| 1087 | WJ40X10006 | Bulkhead Insulator |
|
- | |||||
| 1093 | WJ40X10007 | Bulkhead Insulator |
|
- | |||||
| 1095 | WJ58X10017 | Drain Valve |
|
- | |||||
| 2010 | WP01X10009 | Cord Holder L |
|
- | |||||
| 2025 | WJ37X10025 | Icr Lead Wire |
|
- | |||||
| 4009 | WJ01X10037 | Special Screw |
|
- | |||||
| 4010 | WJ01X10012 | Special Screw |
|
- |
