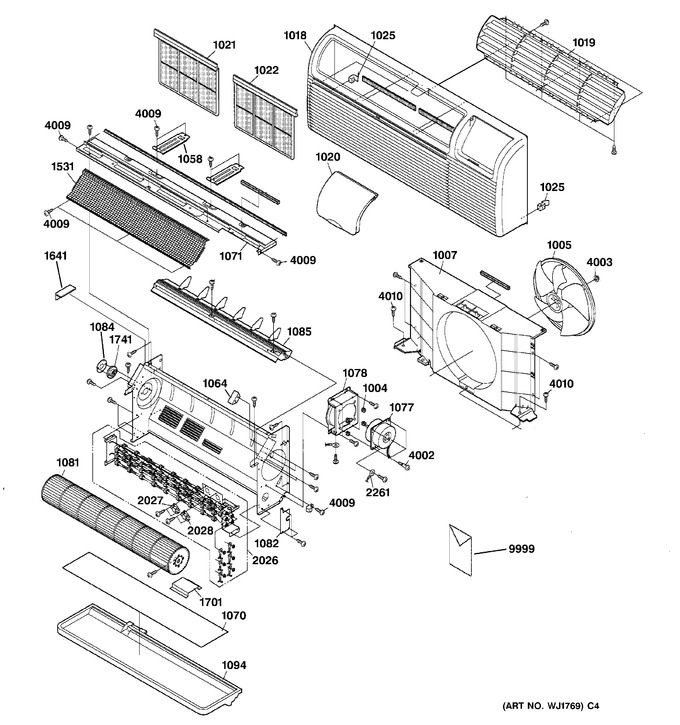

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1004 | WJ01X10034 | Motor Cushion |
|
- | |||||
| 1005 | WJ73X10047 | Propeller Fan |
|
- | |||||
| 1007 | WP76X10001 | Condenser Shroud |
|
- | |||||
| 1018 | WP71X10009 | Front Panel |
|
- | |||||
| 1019 | WP71X10003 | R. Louver |
|
- | |||||
| 1020 | WP71X10004 | Control Cover |
|
- | |||||
| 1021 | WP85X10003 | Air Filter L |
|
- | |||||
| 1022 | WP85X10004 | Air Filter R |
|
- | |||||
| 1025 | WP02X10001 | Spring |
|
- | |||||
| 1058 | WP65X10001 | Brace |
|
- | |||||
| 1064 | WJ82X10004 | Blower Angle |
|
- | |||||
| 1070 | WP79X10001 | Drain Cover |
|
- | |||||
| 1071 | WP79X10002 | Bulkhead Cover Ass'y |
|
- | |||||
| 1077 | WP94X10107 | Fan Motor |
|
- | |||||
| 1078 | WJ82X10006 | In Motor Ang. Ass'y |
|
- | |||||
| 1081 | WP73X10001 | Cross Flow Fan |
|
- | |||||
| 1082 | WP01X10008 | Heater Read Cover |
|
- | |||||
| 1084 | WJ11X10005 | Bearing Plate |
|
- | |||||
| 1085 | WP71X10010 | Stabi Ass'y |
|
- | |||||
| 1094 | WP70X10015 | Drain Tray |
|
- | |||||
| 1531 | WP71X10006 | Wire Netting |
|
- | |||||
| 1641 | WJ82X10025 | Blower Angle-l |
|
- | |||||
| 1701 | WP79X10003 | Drain Cover B |
|
- | |||||
| 1741 | WP76X10006 | Bearing Ass'y |
|
- | |||||
| 2026 | WP70X10006 | Heater Ass'y. |
|
- | |||||
| 2027 | WP23X10014 | Protector |
|
- | |||||
| 2028 | WP23X10015 | Protector |
|
- | |||||
| 2261 | WJ37X10024 | Heater Wire Ass'y |
|
- | |||||
| 4002 | WJ01X10035 | Special Screw |
|
- | |||||
| 4003 | WJ1X981 | Special Nut |
|
- | |||||
| 4009 | WJ01X10037 | Special Screw |
|
- | |||||
| 4010 | WJ01X10012 | Special Screw |
|
- | |||||
| 9999 | 31-60794 | Mini-manual |
|
- | |||||
| 9999 | 49-7416 | Use&care Manual |
|
- |
