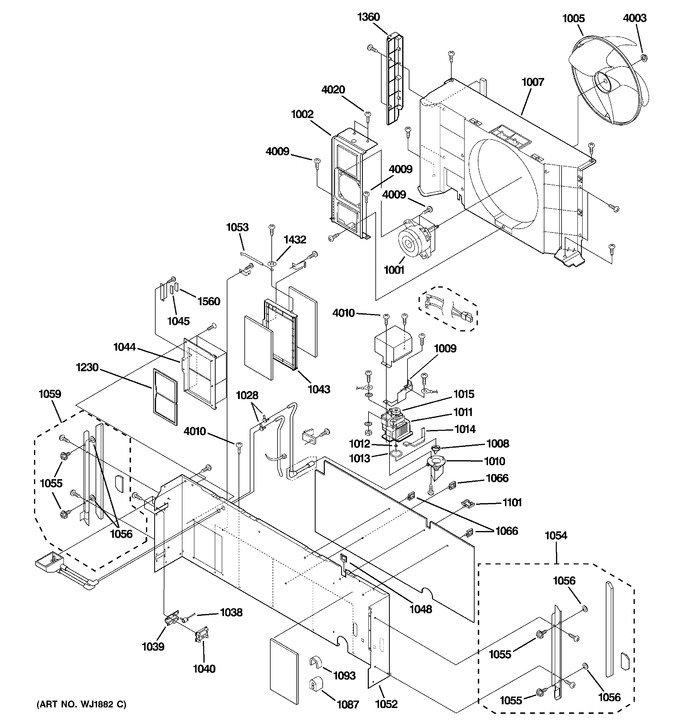

SELECT A DIAGRAM

1 - Grille & Chassis Parts


2 - Base & Chassis Parts


3 - Control Parts


4 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1001	WP94X10175		Dc Fan Motor Out Door				$ 239.25
1002	WP65X10009		Out Door Motor Angle		Appelez-nous	-
1005	WJ73X10047		Propeller Fan		Appelez-nous	-
1007	WP76X10033		Condenser Shroud		Appelez-nous	-
1008	WP73X10002		Fan		Appelez-nous	-
1009	WP79X10005		Pump Cover B		Appelez-nous	-
1010	WP76X10009		P. Fan Housing		Appelez-nous	-
1011	WP76X10032		P. Fan Housing		Appelez-nous	-
1012	WJ05X10015		O Ring S		Appelez-nous	-
1013	WJ05X10016		O Ring L		Appelez-nous	-
1014	WJ40X10008		Pump Insulator		Appelez-nous	-
1015	WP94X10221		Pump Motor		Appelez-nous	-
1028	WP03X10002		Rubber Clamp		Appelez-nous	-
1038	WP70X10031		Damper Lever		Appelez-nous	-
1039	WP70X10039		Damper Lever Cover		Appelez-nous	-
1040	WP70X10040		Damper Holder		Appelez-nous	-
1043	WP70X10032		Damper Plate		Appelez-nous	-
1044	WP76X10028		Filter Frame		Appelez-nous	-
1045	WP01X10001		Magnet		Appelez-nous	-
1048	WP03X10010		Wire Holder		Appelez-nous	-
1052	WP76X10035		Bulkhead		Appelez-nous	-
1053	WP01X10028		Damper Wire		Appelez-nous	-
1054	WP66X10005		Cab. Angle Asm		Appelez-nous	-
1055	WP01X10029		Special Screw		Appelez-nous	-
1056	WP01X10005		Rubber Washer		Appelez-nous	-
1059	WP66X10006		Cab. Angle Asm		Appelez-nous	-
1066	WJ03X10008		Wire Fixing Band		Appelez-nous	-
1087	WJ40X10014		Bulkhead Insulator		Appelez-nous	-
1093	WJ40X10015		Bulkhead Insulator		Appelez-nous	-
1101	WP01X10009		Cord Holder L		Appelez-nous	-
1230	WP85X10007		D Filter		Appelez-nous	-
1360	WJ79X10134		Condenser Plate		Appelez-nous	-
1432	WP02X10003		Push Nut		Appelez-nous	-
1560	WP01X10002		Magnet Seal		Appelez-nous	-
4003	WJ01X10283		Special Nut		Appelez-nous	-
4009	WJ01X10037		Special Screw		Appelez-nous	-
4010	WJ01X10012		Special Screw		Appelez-nous	-
4020	WP01X10021		Special Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
