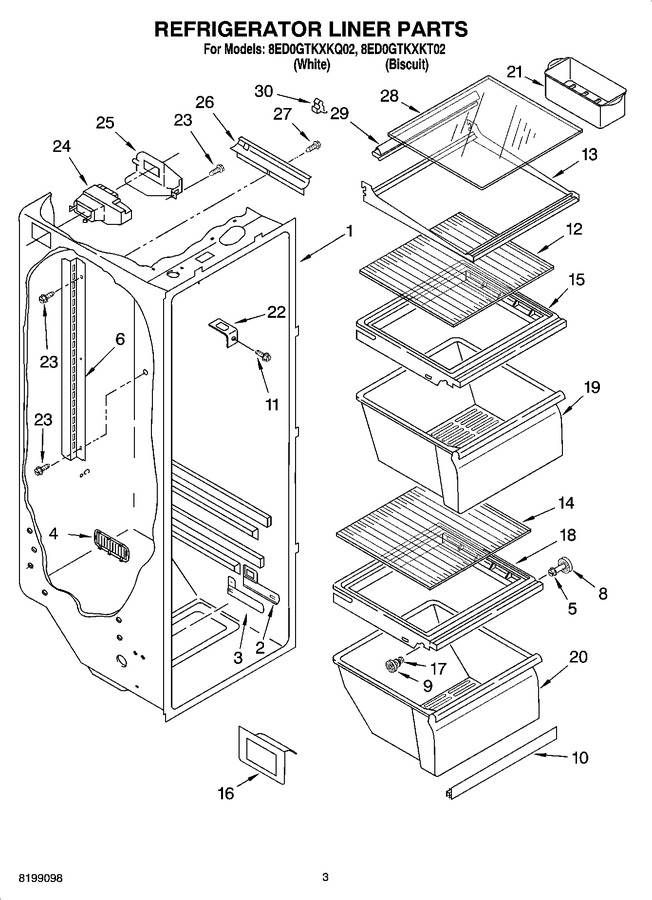

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	2194744		Escutcheon, Meat Pan Control				$ 91.28
3	2182757		Slide Meat Pan Control				$ 75.15
4	2257741		Louver		Appelez-nous	-
5	WP3400806		Screw   (Replaces: 8281158)				$ 7.71
6	2206270		Shelf Ladder (2)		Appelez-nous	-
8	WP2196483		Stud Assembly   (Replaces: 2196483)				$ 10.35
9	W11223328		Stud Assembly   (Replaces: 2196485)			Immediately	$ 14.07
10	2209704		Extension		Appelez-nous	-
11	WP488488		Screw (2)   (Replaces: 489290)				$ 7.68
12	W10864399		Glass, Cover   (Replaces: 2174150)				$ 220.98
13	2173178		Shelf, Cantilever		Appelez-nous	-
14	W10864399		Glass, Cover   (Replaces: 2179259)				$ 220.98
15	W10508993		Crisper Cover   (Replaces: 2209698)				$ 291.29
16	2179350		Deflector				$ 81.80
17	WP3-24004-109		Screw   (Replaces: 3400894)				$ 8.05
18	2217039		Meat Pan Cover		Appelez-nous	-
19	WP2188661		Crisper Pan   (Replaces: 2188653)			Immediately	$ 162.07
20	WP2188664		Meat Pan   (Replaces: 2188654)			Immediately	$ 85.30
21	W10136387A		Egg Bin   (Replaces: 2216624)				$ 18.61
22	WP2256085		Bracket, Retainer   (Replaces: 1123919)				$ 34.38
23	WP489478		Screw   (Replaces: 489478)				$ 7.75
24	WPW10151374		Air Diffuser Assembly   (Replaces: 2209753)			Immediately	$ 99.78
25	2152019		Air Diffuser Cover				$ 86.03
26	2150330		Cover, Conduit		Appelez-nous	-
27	W10759522		Screw   (Replaces: 486298)				$ 7.75
28	2177978		Glass, Shelf		Appelez-nous	-
29	1125594		Retainer		Appelez-nous	-
30	2215823		Clip, Air Duct   (Replaces: 842534)				$ 10.42
