SELECT A DIAGRAM
1 - Backsplash Assembly

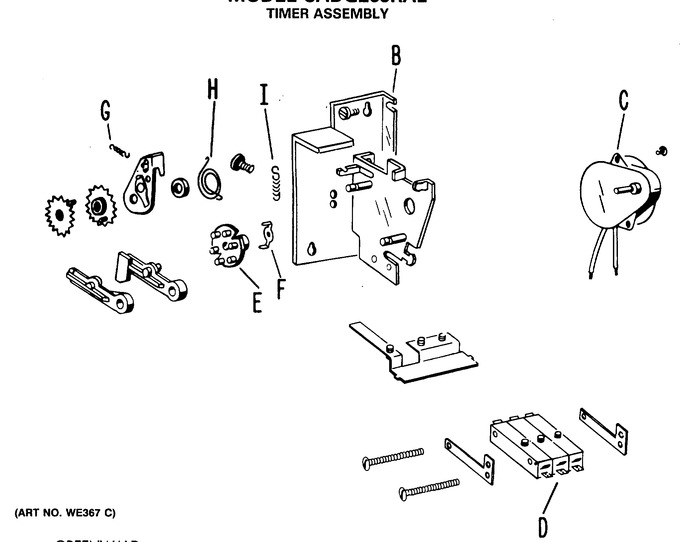

2 - Timer Assembly
3 - Cabinet Assembly
4 - Drum & Duct Assembly
5 - Cabinet Front Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 75-44 | Mounting Bracket |
|
- | |||||
| 2 | 50-61-13 | Timing Motor, 115v-60 Hz., 1/180 R.p.m. Other Motors Available. Specify Voltage, Frequency And Speed |
|
$ 119.36 | |||||
| 3 | 00-6163 | Enclosed Snap Switch (Replaces: 00-6164) |
|
$ 25.47 | |||||
| 4 | 50-161-4 | Timing Cam. 4-pin. Other Timing Cams Available. Specify P/n50-161 And Number Of Pins (from 1 Thru 12, Except 11) |
|
- | |||||
| 5 | 59-9999 | Drive (timing Cams) |
|
- | |||||
| 6 | 00-8003 | Coil Spring (pawl) |
|
$ 39.10 | |||||
| 7 | KIT-1585 | Torsion Spring (ratchet Asm) |
|
- | |||||
| 8 | 59-204 | Coil Spring (index Lever) |
|
- |
