SELECT A DIAGRAM

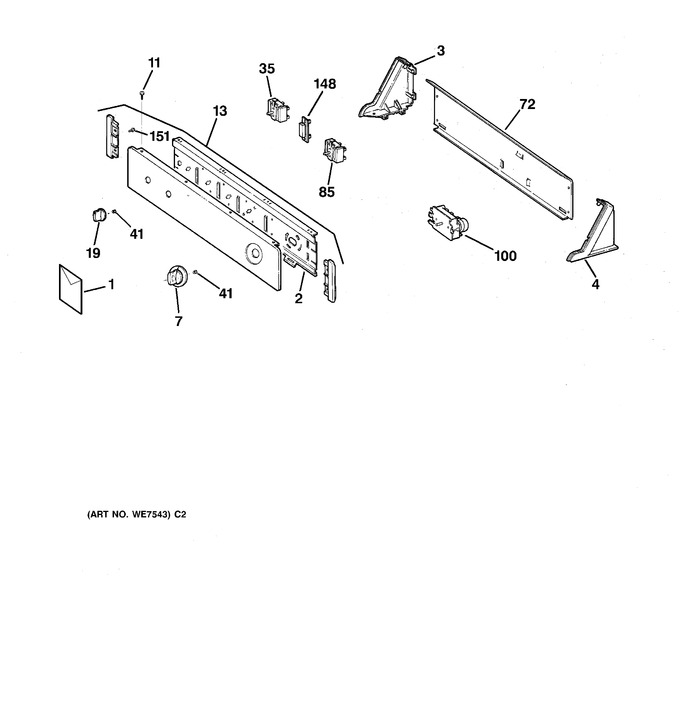

1 - Control Assembly
2 - Cabinet & Top
3 - Cabinet Front
4 - Drum, Heater Asm., Blower & Drive Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-1730 | Install Instructions |
|
- | |||||
| 1 | 31-2747 | Mini-manual |
|
- | |||||
| 1 | 49-9846 | Use & Care Manual |
|
- | |||||
| 1 | 31-15050 | Mini Manual |
|
- | |||||
| 2 | WH46X340 | Support Switch |
|
- | |||||
| 3 | WE19X1002 | End Cap L.h. |
|
- | |||||
| 4 | WE19X1003 | End Cap R.h. |
|
- | |||||
| 7 | WE1X1264 | Knob, Timer |
|
- | |||||
| 11 | WE1X1270 | Scr 8-18 Abflt 5/8 Sn |
|
- | |||||
| 13 | WE19X993 | Control Panel Asm |
|
- | |||||
| 19 | WE1X1208 | Knob & Clip Asm Ad |
|
- | |||||
| 35 | WG04F03522 | Switch Rotary Start (Replaces: WE4X881) |
|
Immediately | $ 110.98 | ||||
| 41 | WE1X980 | U Clip |
|
- | |||||
| 72 | WE20X814 | Panel Back |
|
- | |||||
| 85 | WE4X880 | Switch Rotary Temp |
|
- | |||||
| 100 | WE4X882 | Timer Dryer |
|
- | |||||
| 148 | WE4X799 | Resistor & Board Asm |
|
- | |||||
| 151 | WH2X1210 | Scr 8-18 B Ihw 1/2 S N |
|
- | |||||
| 461 | WZ05X0158 | Screw 8-32x3/8 |
|
- | |||||
| 769 | WB1X500 | Scr 8-18 B Hxw 1/4 S |
|
- |
