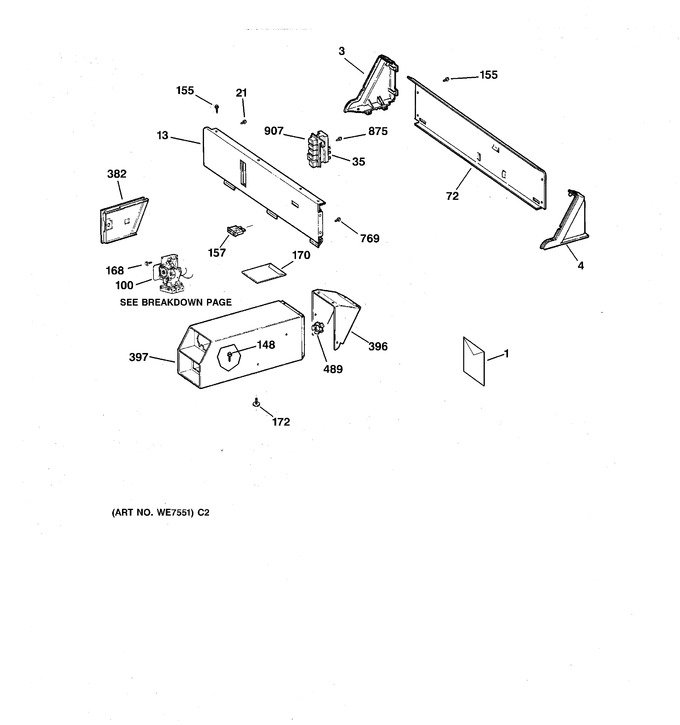

SELECT A DIAGRAM

1 - Control Assembly


2 - Cabinet & Top


3 - Cabinet Front


4 - Drum, Heater Asm., Blower & Drive Assembly


5 - Timer Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-15059		Mini Manual		Appelez-nous	-
1	31-1746		Instruction Install		Appelez-nous	-
1	49-9891		Manual Use And Care		Appelez-nous	-
3	WE19X1002		End Cap Lh Ad		Appelez-nous	-
4	WE19X1003		End Cap Rh Ad		Appelez-nous	-
13	WE19X1008		Control Panel Asm		Appelez-nous	-
21	WH2X1185		Scr 8-18 B Ihw 5/16 S		Appelez-nous	-
35	WE4X885		Switch Pushbutton		Appelez-nous	-
72	WE20X814		Panel Back		Appelez-nous	-
100	WE4X886		Timer Bracket Assm		Appelez-nous	-
148	WB1X5763		Screw		Appelez-nous	-
155	WH2X1233		Scr 8-18 Ab Trt 5/8 S		Appelez-nous	-
157	WG04F07410		Lamp Asm-amber   (Replaces: WE1X950)				$ 10.81
168	WZ02X0468		Scr 10-32 M Hs 1/8 S		Appelez-nous	-
170	WH49X264		Pm Envelope Asm Lockdown		Appelez-nous	-
172	WE2X404		Scr 1/4 20 Mch Pnt .95n		Appelez-nous	-
382	WH42X2505		Door Meter Case Ad		Appelez-nous	-
396	WH42X2504		Adapter Meter Case Ad		Appelez-nous	-
397	WE20X818		Meter Case Ad		Appelez-nous	-
489	WH1X2572		Sleeve Split		Appelez-nous	-
769	WB1X500		Scr 8-18 B Hxw 1/4 S		Appelez-nous	-
875	WG04A00781		Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930)			Immediately	$ 3.97
907	WD9X206		Pushbutton		Appelez-nous	-
