SELECT A DIAGRAM

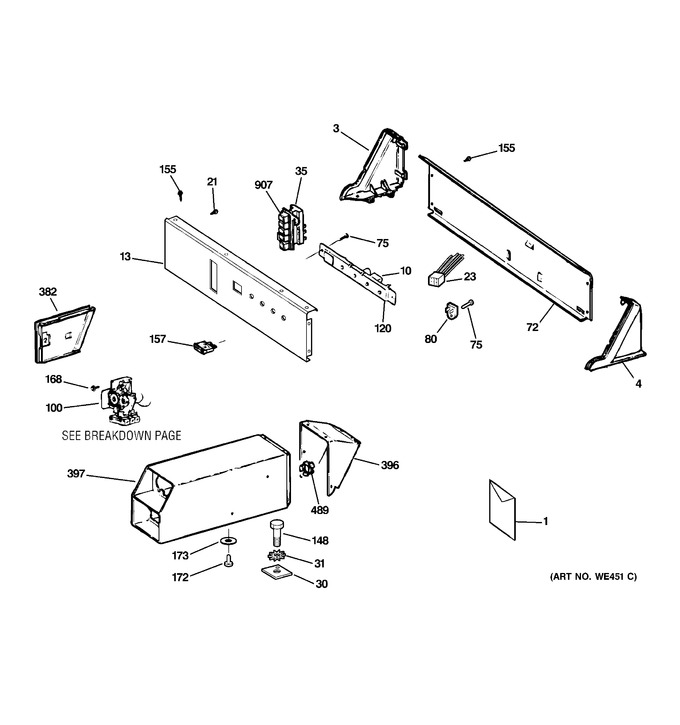

1 - Control Panel & Coin Box Assembly


2 - Front Panel & Door


3 - Cabinet


4 - Drum


5 - Blower & Drive Assembly


6 - Timer Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-16073		Instr Install		Appelez-nous	-
1	31-16091		Mini-manual Coin Electri		Appelez-nous	-
1	49-90162		Use & Care "gea" Coin		Appelez-nous	-
3	WE19M938		End Cap Lh Bk		Appelez-nous	-
4	WE19M939		End Cap Rh Bk		Appelez-nous	-
10	WE4M313		Control Coin-op Asm		Appelez-nous	-
13	WE19M1372		Switch Trim Asm		Appelez-nous	-
21	WE2M175		Screw # 8		Appelez-nous	-
23	WE5M20		Harness Countdown Contro		Appelez-nous	-
30	WE1M533		Plate Secur Coin Box		Appelez-nous	-
31	WD2X322		Screw		Appelez-nous	-
35	WE4M210		P.b. Switch		Appelez-nous	-
72	WE20X811		Rear Panel		Appelez-nous	-
75	WE2M173		Screw		Appelez-nous	-
80	WE4M307		Resistor (3500ohm) Beige		Appelez-nous	-
100	WH65M185		Timer & Bracket Asm		Appelez-nous	-
120	WH01X10072		Pcb Cover Coin-op		Appelez-nous	-
148	WE2M183		Bolt 1/4"		Appelez-nous	-
155	WH2X1233		Scr 8-18 Ab Trt 5/8 S		Appelez-nous	-
157	WG04F07410		Lamp Asm. - Amber   (Replaces: WE1X950)				$ 10.81
168	WZ02X0468		Scr 10-32 M Hs 1/8 S=		Appelez-nous	-
172	WH2X735		Screw		Appelez-nous	-
173	WE2M182		Washer Lock		Appelez-nous	-
382	WH42X10399		Door & Latch Asm		Appelez-nous	-
396	WE1M534		Adapter Meter Case Bisqu		Appelez-nous	-
397	WE1M535		Meter Case		Appelez-nous	-
489	WH1X2572		Sleeve Split		Appelez-nous	-
907	WD9X206		Pushbutton		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
