SELECT A DIAGRAM
1 - Component Group
2 - Component Group
3 - Cabinet Front Asm.
4 - Drum & Heater Asm.
SELECT A DIAGRAM
New Model Search:

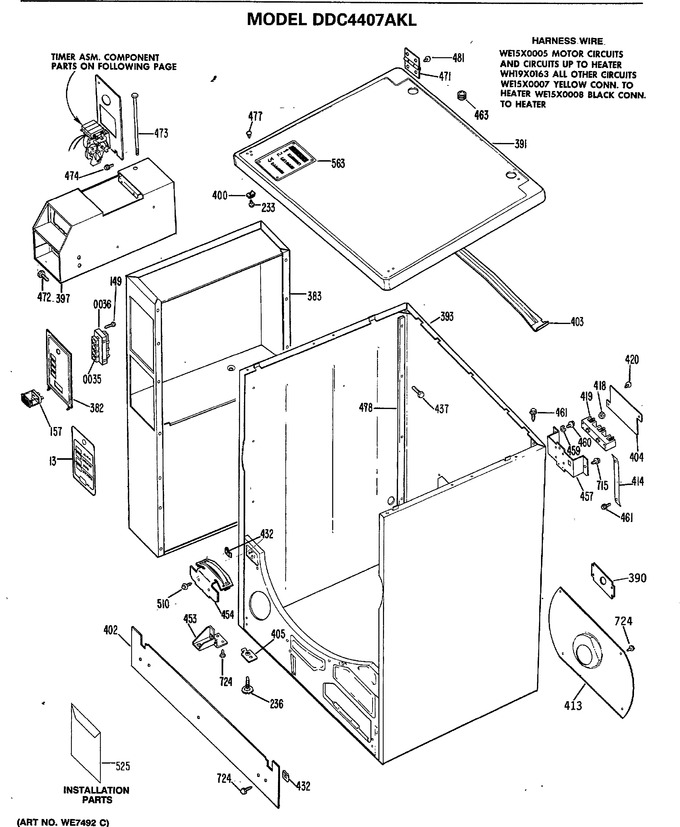

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-1700 | Pm Instruction Instal |
|
- | |||||
| 1 | 31-1701 | Pm Instruction Instal |
|
- | |||||
| 13 | WE1X977 | Switch Trim Asm |
|
- | |||||
| 35 | WE4X569 | Switch Asm 4 Button |
|
- | |||||
| 36 | WH1X2257 | Button Switch |
|
- | |||||
| 70 | WH2X937 | Screw |
|
- | |||||
| 149 | WZ04X0280 | Screw 8-18 Hxw |
|
- | |||||
| 157 | WE1X976 | Lamp Asm |
|
- | |||||
| 169 | WH1X2194 | Tube Plug |
|
- | |||||
| 177 | WH2X923 | Nut Clip |
|
- | |||||
| 204 | WZ04X0345 | Screw |
|
- | |||||
| 210 | WE13X160 | Bracket Belt Switch |
|
- | |||||
| 233 | WZ04X0236 | Scr |
|
- | |||||
| 236 | WG04L00345 | Screw Levelling 5/16-24 (Replaces: WE2X355) |
|
Immediately | $ 4.04 | ||||
| 237 | WE4X532 | Switch Asm |
|
- | |||||
| 238 | WE1X945 | Spacer Switch |
|
- | |||||
| 239 | WE2X272 | Scr 4-40 M Hx 7/8 S |
|
- | |||||
| 253 | WE2X245 | Nut Stop |
|
- | |||||
| 255 | WE1X844 | Shield Switch |
|
- | |||||
| 257 | BUY LOCAL | Oven Lamp |
|
- | |||||
| 382 | WE10X265 | Door Asm Painted Wh |
|
- | |||||
| 382 | WE10X263 | Door Asm Painted Ad |
|
- | |||||
| 382 | WE10X264 | Door Asm Painted Ha |
|
- | |||||
| 383 | WE20X603 | Housing Asm Painted Wh |
|
- | |||||
| 383 | WE20X599 | Housing Asm Painted Ad |
|
- | |||||
| 383 | WE20X601 | Housing Asm Painted Ha |
|
- | |||||
| 390 | WE1X1174 | Plate |
|
- | |||||
| 391 | WE20X610 | Weld Asm Cover Wh |
|
- | |||||
| 391 | WE20X608 | Weld Asm Cover Ad |
|
- | |||||
| 391 | WE20X609 | Weld Asm Cover Ha |
|
- | |||||
| 393 | WE20X757 | Cabinet Asm Wh |
|
- | |||||
| 393 | WE20X755 | Cabinet Asm Ad |
|
- | |||||
| 393 | WE20X756 | Cabinet Asm Ha |
|
- | |||||
| 397 | WE20X656 | Meter Case Painted Ad |
|
- | |||||
| 397 | WE20X658 | Meter Case Painted Wh |
|
- | |||||
| 397 | WE20X657 | Meter Case Painted Ha |
|
- | |||||
| 400 | WE2X134 | Clip |
|
- | |||||
| 402 | WE20X347 | Toeboard |
|
- | |||||
| 404 | WE1X425 | Plate |
|
- | |||||
| 405 | WE1X468 | Plate Leveling Screw |
|
- | |||||
| 413 | WE14X212 | Panel Access |
|
- | |||||
| 414 | WE1X339 | Ground Strap |
|
- | |||||
| 418 | WZ07X0031 | Nut |
|
- | |||||
| 419 | WE4X168 | Block Terminal |
|
$ 29.10 | |||||
| 420 | WH2X893 | Scr 10-16 Hx 3/8 S |
|
- | |||||
| 432 | WL02X0071 | Nut |
|
- | |||||
| 437 | WZ02X0514 | Scr 1/4-20 M Hx 13/16 S |
|
- | |||||
| 453 | WE13X80 | Support Leveling Screw |
|
- | |||||
| 454 | WE25X60 | Slide Asm |
|
$ 15.15 | |||||
| 457 | WE13X162 | Bracket Terminal Block |
|
- | |||||
| 460 | WZ04X0264 | Scr 10-16 Ab Hxw 1 S |
|
- | |||||
| 461 | WZ05X0158 | Screw 8-32x3/8 |
|
- | |||||
| 463 | WE1X956 | Bushing |
|
- | |||||
| 471 | WE1X964 | Hinge |
|
- | |||||
| 473 | WE2X283 | Scr 5/16-18 Cap Hx 8 S |
|
- | |||||
| 477 | WE1X966 | Plug |
|
- | |||||
| 478 | WE1X965 | Cabinet Strap Asm |
|
- | |||||
| 481 | WH2X967 | Scr 12-14 Ab Hxw 1/2 S |
|
- | |||||
| 510 | WE2X263 | Screw |
|
- | |||||
| 525 | WE25X143 | Pk Pack Asm Installation |
|
- | |||||
| 563 | WE1X975 | Pm Instruction Plate Asm |
|
- | |||||
| 724 | WZ04X0288 | Scr 10-16 Ab Hxw 1/2s #8 |
|
- |
