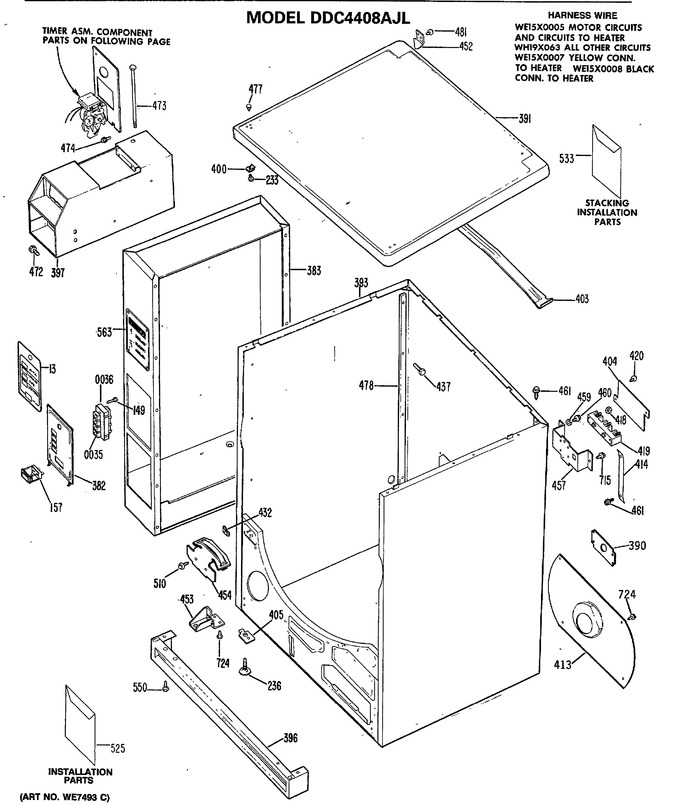

SELECT A DIAGRAM

1 - Component Group


2 - Component Group


3 - Cabinet Front Asm.


4 - Drum & Heater Asm.


5 - Component Group


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
13	WE1X977		Switch Trim Asm		Appelez-nous	-
35	WE4X569		Switch Asm 4 Button		Appelez-nous	-
36	WH1X2257		Button Switch		Appelez-nous	-
149	WZ04X0280		Scr 8-18 B Hxw 3/4 S		Appelez-nous	-
157	WE1X976		Lamp Asm		Appelez-nous	-
233	WZ04X0236		Scr 8-15 A Ov 1/2 S		Appelez-nous	-
236	WG04L00345		Screw Levelling 5/16-24   (Replaces: WE2X355)			Immediately	$ 4.04
382	WE10X263		Door Asm Painted Ad		Appelez-nous	-
382	WE10X265		Door Asm Painted Wh		Appelez-nous	-
382	WE10X264		Door Asm Painted Ha		Appelez-nous	-
383	WE20X604		Housing Asm Painted Wh		Appelez-nous	-
383	WE20X600		Housing Asm Painted Ad		Appelez-nous	-
383	WE20X602		Housing Asm Painted Ha		Appelez-nous	-
390	WE1X1174		Plate		Appelez-nous	-
391	WE20X609		Weld Asm Cover Ha		Appelez-nous	-
391	WE20X608		Weld Asm Cover Ad		Appelez-nous	-
391	WE20X610		Weld Asm Cover Wh		Appelez-nous	-
393	WE20X756		Cabinet Asm Ha		Appelez-nous	-
393	WE20X755		Cabinet Asm Ad		Appelez-nous	-
393	WE20X757		Cabinet Asm Wh		Appelez-nous	-
396	WE20X612		Panel Asm Painted Ha		Appelez-nous	-
396	WE20X611		Panel Asm Painted Ad		Appelez-nous	-
396	WE20X613		Panel Asm Painted Wh		Appelez-nous	-
397	WE20X657		Meter Case Painted Ha		Appelez-nous	-
397	WE20X656		Meter Case Painted Ad		Appelez-nous	-
397	WE20X658		Meter Case Painted Wh		Appelez-nous	-
400	WE2X134		Clip		Appelez-nous	-
403	WE14X37		Brace Cabinet Top		Appelez-nous	-
404	WE1X425		Plate		Appelez-nous	-
405	WE1X468		Plate Leveling Screw		Appelez-nous	-
413	WE14X212		Panel Access		Appelez-nous	-
414	WE1X339		Strap Ground		Appelez-nous	-
418	WZ07X0031		Nut		Appelez-nous	-
419	WE4X168		Block Terminal				$ 29.10
420	WH2X893		Scr 10-16 B Hxw 3/8 S		Appelez-nous	-
432	WL02X0071		Nut Clip		Appelez-nous	-
437	WZ02X0514		Scr 1/4-20 M Hx 13/16 S		Appelez-nous	-
452	WE1X1094		Bracket Hinge		Appelez-nous	-
453	WE13X104		Bracket Level Scr Supt		Appelez-nous	-
454	WE25X60		Slide Asm				$ 15.15
457	WE13X162		Bracket Terminal Block		Appelez-nous	-
460	WZ04X0264		Scr 10-16 Ab Hxw 1 S		Appelez-nous	-
461	WZ05X0158		Scr 8-32 D Hxw 3/8 S		Appelez-nous	-
473	WE2X283		Scr 5/16-18 Cap Hx 8 S		Appelez-nous	-
474	10-32X1/2		Scr 10-32 M Hx 1/2 S		Appelez-nous	-
477	WE1X966		Plug		Appelez-nous	-
478	WE1X965		Cabinet Strap Asm		Appelez-nous	-
481	WH2X967		Scr 12-14 Ab Hxw 1/2 S		Appelez-nous	-
510	WE2X263		Scr 10-16 Ab Hxw 1/2 S		Appelez-nous	-
525	WE25X143		Pack Asm Installation		Appelez-nous	-
533	WE25X144		Parts Pack-stack Dryer		Appelez-nous	-
550	WE2X281		Scr 8-18 Ab Hxw 3/8 S		Appelez-nous	-
563	WE1X975		Pm Instruction Plate Asm		Appelez-nous	-
715	WD2X5063		Screw		Appelez-nous	-
724	WZ04X0288		Scr 10-16 Ab Hxw 1/2 S		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
