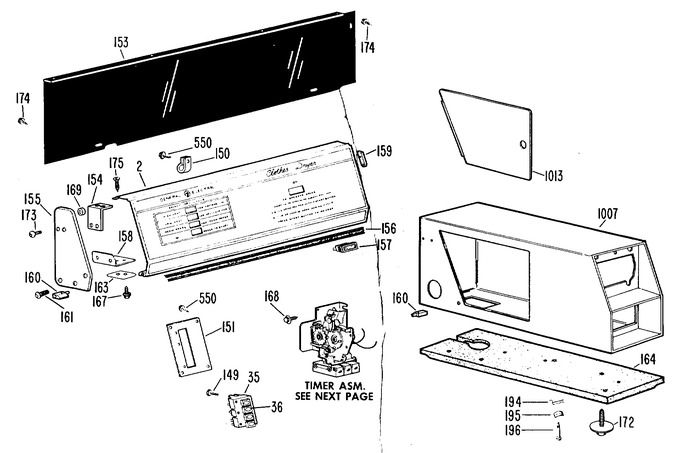

SELECT A DIAGRAM

1 - Component Group


2 - Component Group


3 - Component Group


4 - Drum & Duct Asm.


5 - Cabinet Front Asm. (gas)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WE19X723		Housing Asm Controls		Appelez-nous	-
35	WE4X569		Switch Asm 4 Button		Appelez-nous	-
36	WH1X2257		Button Switch		Appelez-nous	-
46	WZ04X0238		Scr 8-18 Ab Hw 1/2 S		Appelez-nous	-
149	WZ04X0280		Screw 8-18 Hxw		Appelez-nous	-
150	WZ20X0007		Hanger Cable		Appelez-nous	-
151	WE13X125		Bracket-switch		Appelez-nous	-
153	WE1X911		Panel Rear		Appelez-nous	-
154	WE1X913		Bracket Mounting		Appelez-nous	-
155	WE1X948		Trim End		Appelez-nous	-
156	WE1X949		Gasket Control Hsg		Appelez-nous	-
157	WG04F07410		Lamp Asm-amber   (Replaces: WE1X950)				$ 10.81
158	WE1X951		Gusset		Appelez-nous	-
159	WE1X952		Support Housing		Appelez-nous	-
160	WE1X953		Block Pivot		Appelez-nous	-
161	WE2X273		Scr 10-14 Pt Sh 7/16 S		Appelez-nous	-
162	WE2X274		Scr 8-16 Pt Hxw 3/8 S		Appelez-nous	-
163	WE9X48		Gasket		Appelez-nous	-
164	WE9X50		Gasket Coin Box		Appelez-nous	-
167	WE2X186		Screw		Appelez-nous	-
168	WZ02X0468		Scr 10-32 M Hs 1/8 S		Appelez-nous	-
169	WH1X2194		Tube Plug		Appelez-nous	-
172	WH2X735		Scr 1/4-20 M Sh .900 Cs		Appelez-nous	-
173	WH2X932		Scr 8-32 Tt Sh 1/2 S		Appelez-nous	-
174	WH2X934		Scr 12-14 Ab Sh 1/2 S		Appelez-nous	-
175	WH2X933		Scr 8-16 Plt T Pa 1/2 S		Appelez-nous	-
194	WH1X1728		Clip		Appelez-nous	-
195	WH2X885D		Nut   (Replaces: WH2X885)		Appelez-nous	-
196	WH2X783		Stud Hold Down		Appelez-nous	-
403	WE14X37		Brace Cabinet Top		Appelez-nous	-
460	WZ04X0264		Scr 10-16 Ab Hxw 1 S		Appelez-nous	-
462	WE4X203		Board Asm Terminal		Appelez-nous	-
548	WE17X151		Terminal		Appelez-nous	-
550	WE2X281		Scr 8-18 Ab Hwx 3/8 S		Appelez-nous	-
610	WE9X28		Gasket Door		Appelez-nous	-
611	WH12X416		Housing Terminal		Appelez-nous	-
1007	WH42X1191		Meter Case-painted Wh		Appelez-nous	-
1007	WH42X1192		Meter Case-painted Fa		Appelez-nous	-
1007	WH42X1193		Meter Case-painted Ha		Appelez-nous	-
1007	WH42X1194		Meter Case-painted Ad		Appelez-nous	-
1007	WH42X1195		Meter Case-painted Cf		Appelez-nous	-
1013	WH42X1098		Door-mtr Case Access Ha		Appelez-nous	-
1013	WE1X908		Door-mtr Case Access Wh		Appelez-nous	-
1013	WH42X1097		Door-mtr Case Access Fa		Appelez-nous	-
1013	WH42X1168		Door-mtr Case Access Cf		Appelez-nous	-
1013	WH42X1165		Door-mtr Case Access Ad		Appelez-nous	-
9999	49-9035		Installation Instr		Appelez-nous	-
9999	49-9335		Use - Care Book		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
