View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Component Group
2 - Component Group

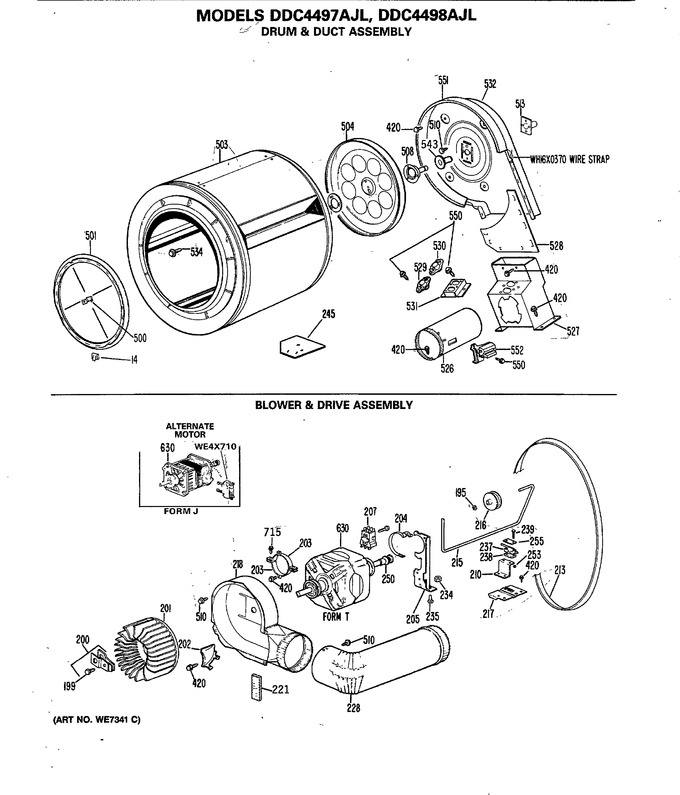

3 - Drum & Duct Assembly
4 - Cabinet Front Assembly
5 - Component Group
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 14 | WE1X762 | Clip Ground |
|
- | |||||
| 195 | WH2X885D | Nut (Replaces: WH2X885) |
|
- | |||||
| 199 | WE2X280 | Scr 14-10 A Hx 1 S |
|
- | |||||
| 200 | WG04A01065 | Clamp Asm (Replaces: WE1X688) |
|
$ 73.76 | |||||
| 201 | WW02A00073 | Wheel Blower (Replaces: WE16X17) |
|
Immediately | $ 64.24 | ||||
| 202 | WE1X689 | Baffle Blower Housing |
|
- | |||||
| 203 | WE13X182 | Strap Motor |
|
- | |||||
| 204 | WE1X921 | Bracket Motor |
|
- | |||||
| 205 | WE13X161 | Bracket Motor |
|
- | |||||
| 207 | WE4X344 | Switch Start (form T) |
|
- | |||||
| 210 | WE13X160 | Bracket Belt Switch |
|
- | |||||
| 213 | WG03F00846 | Belt Drive (Replaces: WE12X82) |
|
Immediately | $ 52.50 | ||||
| 215 | WE3X69 | Spring Idler |
|
- | |||||
| 216 | WE12X83 | Pulley Idler |
|
$ 40.00 | |||||
| 217 | WE13X159 | Bracket Idler Spring |
|
- | |||||
| 218 | WE14X134 | Housing Blower |
|
- | |||||
| 221 | WE1X1171 | Air Seal |
|
- | |||||
| 228 | WE14X139 | Elbow Exhaust |
|
- | |||||
| 234 | WE2X154 | Nut Sheet Metal |
|
$ 55.13 | |||||
| 235 | WE2X194 | Scr 5/16-12 B Hx 3/4 S |
|
- | |||||
| 237 | WE4X532 | Switch Asm |
|
- | |||||
| 238 | WE1X945 | Spacer Switch |
|
- | |||||
| 239 | WE2X272 | Scr 4-40 M Hx 7/8 S |
|
- | |||||
| 245 | WE1X1055 | Shield-wire |
|
- | |||||
| 250 | WE12X41 | Pulley Drive |
|
- | |||||
| 253 | WE2X245 | Nut Stop |
|
- | |||||
| 255 | WE1X844 | Shield Switch |
|
- | |||||
| 420 | WH2X893 | Scr 10-16 B Hxw 3/8 S |
|
- | |||||
| 500 | WE1X299 | Clip |
|
- | |||||
| 501 | WE9X30 | Seal Asm |
|
- | |||||
| 503 | WE21X49 | Drum Asm |
|
- | |||||
| 504 | WE14X86 | Deflector |
|
- | |||||
| 508 | WE25M40 | Shaft & Bracket Asm (Replaces: WE3X39) |
|
Immediately | $ 157.05 | ||||
| 510 | WE2X263 | Scr 10-16 Ab Hxw 1/2 S |
|
- | |||||
| 513 | WG04A00067 | Retainer Bearing (Replaces: WE1X461) |
|
$ 8.14 | |||||
| 526 | WE14X112 | Chamber Combustion |
|
- | |||||
| 527 | WE14X83 | Duct Asm |
|
- | |||||
| 528 | WE14X72 | Plate Diffuser |
|
- | |||||
| 529 | WE4X583 | Thermostat L150-15 |
|
- | |||||
| 530 | WE4X592 | Thermostat L300-40 |
|
- | |||||
| 531 | WE13X127 | Bracket Thermostat |
|
- | |||||
| 532 | WE14X125 | Diffuser & Seal Asm |
|
- | |||||
| 534 | WE2X153 | Scr 10-14 Tf Tr 1/2 S |
|
- | |||||
| 543 | WE3X72 | Bearing Drum |
|
- | |||||
| 550 | WE2X281 | Scr 8-18 Ab Hxw 3/8 S |
|
- | |||||
| 551 | WH12X417 | Housing Terminal |
|
- | |||||
| 551 | WE9X44 | Pad Felt K |
|
- | |||||
| 552 | WE4X448 | Detector Asm |
|
- | |||||
| 630 | WG04F00726 | Motor Asm (form T) (Replaces: WE17X32) |
|
Immediately | $ 290.62 | ||||
| 715 | WD2X5063 | Screw |
|
- |
