View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Component Group
2 - Component Group
3 - Upper Cabinet
4 - Lower Cabinet
5 - Component Group
6 - Blower & Drive Assembly
7 - Gas Valve & Burner Assembly
SELECT A DIAGRAM
New Model Search:

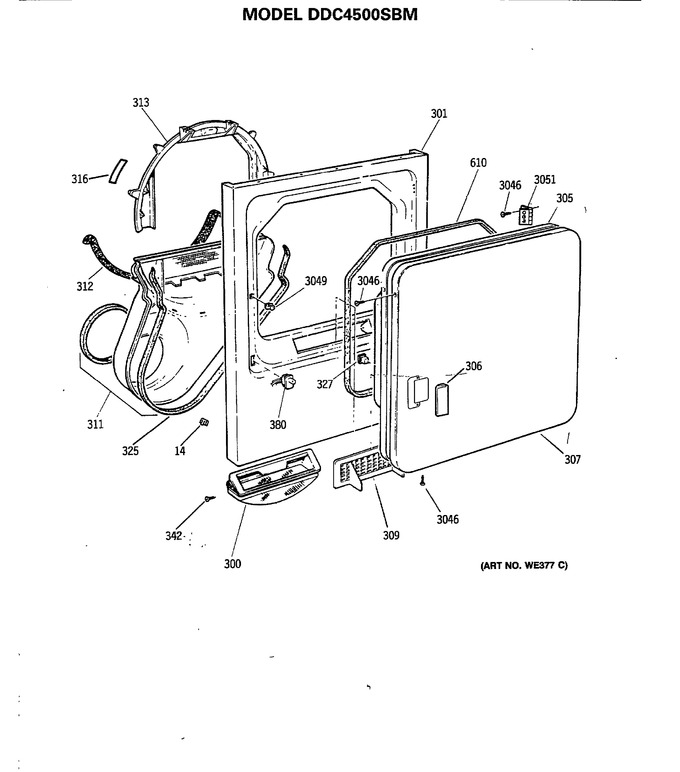

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 14 | WE1X762 | Clip Grounding |
|
- | |||||
| 300 | WE18M17 | Lint Trap |
|
- | |||||
| 301 | WE20M241 | Front Cabinet Wh |
|
- | |||||
| 301 | WE20M242 | Front Cabinet Ad |
|
- | |||||
| 305 | WE10M78 | Panel Door Inner Wh |
|
- | |||||
| 305 | WE10M79 | Panel Door Inner Ad |
|
- | |||||
| 306 | WE1M342 | Handle Ad |
|
- | |||||
| 306 | WE1M305 | Handle Wh |
|
- | |||||
| 307 | WE10M89 | Panel Outer Ad |
|
- | |||||
| 307 | WE10M88 | Panel Outer Wh |
|
- | |||||
| 309 | WE1M306 | Screen |
|
- | |||||
| 311 | WE14M58 | Duct Air |
|
- | |||||
| 312 | WE9M10 | Felt |
|
- | |||||
| 313 | WE3M16 | Bearing Drum |
|
- | |||||
| 316 | WW02A00129 | Slide Drum (bl/gry) (Replaces: WE1M316) |
|
Immediately | $ 17.47 | ||||
| 316 | WG04L00096 | Slide Drum (wh) (Replaces: WE1M333) |
|
Immediately | $ 3.97 | ||||
| 325 | WE1M376 | Gasket |
|
$ 26.89 | |||||
| 327 | 5366021400 | Latch (Replaces: WE1X903) |
|
Immediately | $ 62.21 | ||||
| 342 | WE2M170 | Screw |
|
- | |||||
| 380 | W10169313 | Switch Door (Replaces: WE4M157) |
|
Immediately | $ 35.24 | ||||
| 610 | WE9X28 | Gasket Door |
|
- | |||||
| 3046 | WW02A00097 | Screw (Replaces: WE2M153) |
|
$ 3.97 | |||||
| 3049 | 5366021400 | Strike (Replaces: WE1M314) |
|
Immediately | $ 62.21 | ||||
| 3051 | WE1M315 | Hinge Door |
|
- |
