1 - Backsplash Asm.
2 - Cabinet Asm.
3 - Drum & Duct Asm.
4 - Cabinet Front Asm.
5 - Timer Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

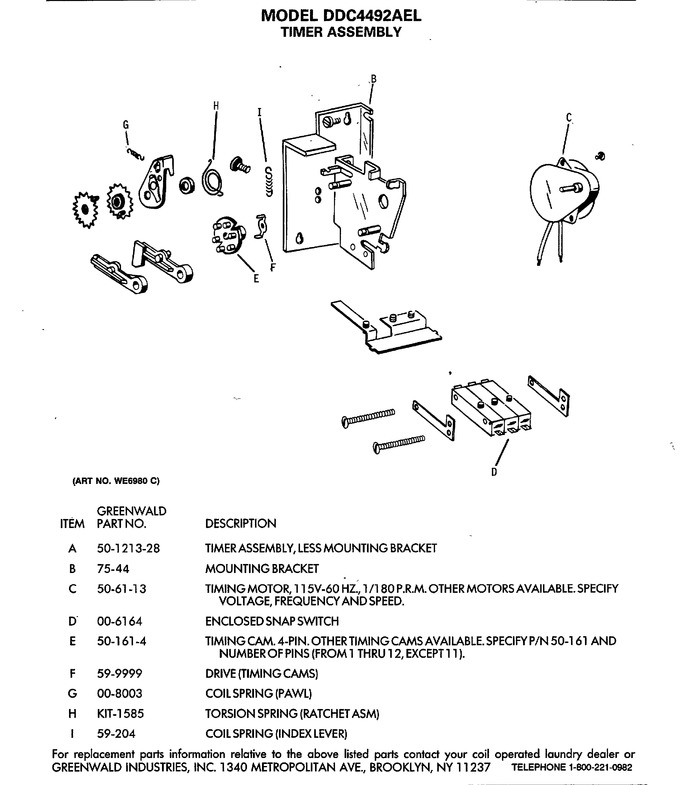

| 32767 | 50-1213-28 | Timer Assembly, Less Mounting Bracket |
|
- | |||||
| 32767 | KIT-1585 | Torsion Spring (ratchet Asm) |
|
- | |||||
| 32767 | 75-44 | Mounting Bracket |
|
- | |||||
| 32767 | 59-9999 | Drive (timing Cams) |
|
- | |||||
| 32767 | 59-204 | Coil Spring (index Lever) |
|
- | |||||
| 32767 | 50-61-13 | Timing Motor, 115v-60 Hz., 1/180 P.r.m. Other Motors Available. Specify Voltage, Frequency And Speed. |
|
$ 119.36 | |||||
| 32767 | 50-161-4 | Timing Cam. 4-pin. Other Timing Cams Available. Specify P/n 50-161 And Number Of Pins (from 1 Thru 12, Except 11). |
|
- | |||||
| 32767 | 00-8003 | Coil Spring (pawl) |
|
$ 39.10 | |||||
| 32767 | 00-6163 | Enclosed Snap Switch (Replaces: 00-6164) |
|
$ 25.47 |
