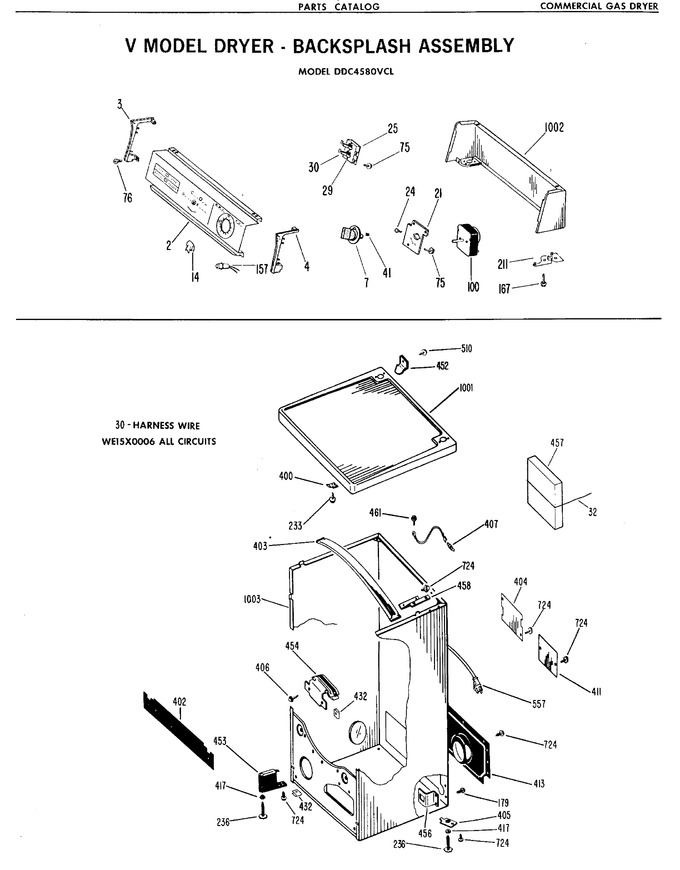

1 - V Model Dryer - Backsplash Assembly
2 - Drum & Duct Asm.
3 - Cabinet Front Asm. (gas)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WE19X732 | Escutcheon Asm |
|
- | |||||
| 3 | WE19X654 | Trim-end |
|
- | |||||
| 4 | WE19X655 | End Trim-rh |
|
- | |||||
| 7 | WE1X946 | Knob - Clip Asm |
|
- | |||||
| 14 | WE1X762 | Clip Grounding |
|
- | |||||
| 21 | WE13X76 | Plate Control |
|
- | |||||
| 24 | WZ02X0510 | Screw |
|
- | |||||
| 25 | WE4X352 | Switch Asm 2 Togl |
|
- | |||||
| 29 | WH1X1394 | Pin |
|
- | |||||
| 30 | WH1X835 | Key-switch |
|
- | |||||
| 32 | WH16X370 | Strap Steel |
|
- | |||||
| 41 | WE1X5201 | Clip Knob |
|
- | |||||
| 70 | WH2X937 | Screw-type A |
|
- | |||||
| 75 | WG04A00781 | Screw 8-18 Ab Hxw 3/8 (Replaces: WH2X930) |
|
Immediately | $ 3.97 | ||||
| 76 | WZ05X0120 | Screw |
|
- | |||||
| 100 | WE4X525 | Timer Asm |
|
- | |||||
| 157 | WE1X915 | Lamp Asm |
|
- | |||||
| 167 | WE2X186 | Screw |
|
- | |||||
| 179 | WZ04X0288 | Scr 10-16 Ab Hxw 1/2s #8 |
|
- | |||||
| 211 | WE1X553 | Gasket Insulating |
|
- | |||||
| 233 | WZ04X0236 | Scr |
|
- | |||||
| 236 | WG04L00345 | Scr 5/16-24 Lvl 2 S (Replaces: WE2X229) |
|
Immediately | $ 4.04 | ||||
| 243 | WZ05X0155 | Scr 8-18 Ab Hx 3/8 Ss |
|
- | |||||
| 400 | WE2X134 | Clip |
|
- | |||||
| 402 | WE20X347 | Toeboard |
|
- | |||||
| 403 | WE14X37 | Brace Cabinet Top |
|
- | |||||
| 404 | WE1X425 | Plate |
|
- | |||||
| 405 | WE1X468 | Plate Leveling Screw |
|
- | |||||
| 406 | WZ04X0236 | Scr |
|
- | |||||
| 411 | WE1X426 | Wrapper Cabinet Knockout |
|
- | |||||
| 413 | WE14X66 | Box Recess |
|
- | |||||
| 417 | WZ07X0038 | Nut |
|
- | |||||
| 432 | WE2X282 | Nut Clip |
|
- | |||||
| 452 | WH16X431 | Bracket Hinge |
|
- | |||||
| 453 | WE13X80 | Support Level Screw |
|
- | |||||
| 454 | WE25X60 | Slide Asm |
|
$ 15.15 | |||||
| 456 | WE1X617 | Clamp-pipe |
|
- | |||||
| 457 | WE1X937 | Counterweight Dryer |
|
- | |||||
| 458 | WE1X411 | Bracket Terminal Board |
|
- | |||||
| 460 | WZ04X0264 | Scr 10-16 Ab Hxw 1 S |
|
- | |||||
| 461 | WZ05X0158 | Screw 8-32x3/8 Grd Scr |
|
- | |||||
| 462 | WE4X203 | Board Asm Terminal |
|
- | |||||
| 510 | WE2X263 | Screw 10-16x1/2 Hxw |
|
- | |||||
| 557 | WE8X23 | Cordset Asm Grounding |
|
- | |||||
| 724 | WZ04X0288 | Scr 10-16 Ab Hxw 1/2s #8 |
|
- | |||||
| 1001 | WE20X555 | Weld Asm-cover Fa |
|
- | |||||
| 1001 | WE20X556 | Weld Asm-cover Ha |
|
- | |||||
| 1001 | WE20X557 | Weld Asm-cover Cf |
|
- | |||||
| 1001 | WE20X558 | Weld Asm-cover Ad |
|
- | |||||
| 1001 | WE20X492 | Weld Asm Cover Wh |
|
- | |||||
| 1001 | WE20X530 | Weld Asm-cover Wh |
|
- | |||||
| 1002 | WH46X213 | Weld Asm-housing Cf |
|
- | |||||
| 1002 | WH46X211 | Weld Asm-housing Wh |
|
- | |||||
| 1002 | WH46X212 | Weld Asm-housing Ad |
|
- | |||||
| 1002 | WH46X214 | Weld Asm-housing Fa |
|
- | |||||
| 1002 | WH46X215 | Weld Asm-housing Ha |
|
- | |||||
| 1003 | WE20X560 | Base - Wrapper Asm Ha |
|
- | |||||
| 1003 | WE20X559 | Base - Wrapper Asm Fa |
|
- | |||||
| 1003 | WE20X561 | Base - Wrapper Asm Cf |
|
- | |||||
| 1003 | WE20X562 | Base - Wrapper Asm Ad |
|
- | |||||
| 1003 | WE20X396 | Base - Wrapper Asm Wh |
|
- | |||||
| 9999 | 49-9332 | Use - Care Book |
|
- | |||||
| 9999 | 49-9260 | Instruction Sheet |
|
- | |||||
| 9999 | 49-9035 | Installation Instr |
|
- |
