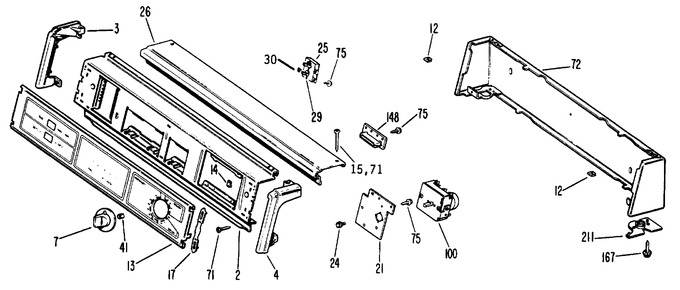

1 - Component Group


2 - Cabinet & Top


3 - Cabinet Front


4 - Drum & Heater Asm.


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-1702		Pm Instruction Instal		Appelez-nous	-
2	WE19X719		Escutcheon Asm		Appelez-nous	-
3	WE19X796		Trim-end L. H.		Appelez-nous	-
4	WE19X797		Trim-end R. H.		Appelez-nous	-
7	WE1X978		Knob & Clip Asm		Appelez-nous	-
12	WB1X358		Speednut		Appelez-nous	-
13	WE19X891		Switch Trim Asm		Appelez-nous	-
17	WH1X2008		Clip Trim		Appelez-nous	-
21	WE13X76		Plate Control		Appelez-nous	-
24	WZ02X0510		Screw		Appelez-nous	-
25	WE4X249		Switch Asm 1 Togl		Appelez-nous	-
29	WH1X1394		Pin		Appelez-nous	-
41	WE1X980		U Clip		Appelez-nous	-
70	WH2X937		Screw		Appelez-nous	-
71	WH2X947		Screw		Appelez-nous	-
72	WH46X215		Weld Asm-housing Ha		Appelez-nous	-
72	WH46X211		Weld Asm-housing Wh		Appelez-nous	-
72	WH46X212		Weld Asm-housing Ad		Appelez-nous	-
100	WE4X758		Timer Asm		Appelez-nous	-
167	WE2X186		Screw		Appelez-nous	-
178	WH2X939		Scr 6-19 Pt Hx 1/4 S		Appelez-nous	-
204	WZ04X0345		Screw		Appelez-nous	-
211	WE1X553		Gasket Insulating		Appelez-nous	-
300	WG04F00431		Filter Asm Lint   (Replaces: WE18X26)			Immediately	$ 26.73
404	WE1X425		Plate		Appelez-nous	-
414	WE1X339		Ground Strap		Appelez-nous	-
457	WE13X162		Bracket Terminal Block		Appelez-nous	-
610	WE9X28		Gasket Door		Appelez-nous	-
32767	49-9662		Pm Manual Use & Care		Appelez-nous	-
