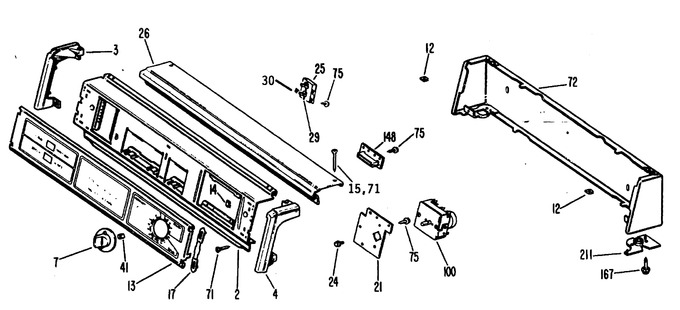

1 - Component Group
2 - Cabinet & Top
3 - Cabinet Front
4 - Drum & Heater Asm.
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WE19X719 | Escutcheon Asm |
|
- | |||||
| 3 | WE19X796 | Trim-end L. H. |
|
- | |||||
| 4 | WE19X797 | Trim-end R. H. |
|
- | |||||
| 7 | WE1X978 | Knob Clip Asm |
|
- | |||||
| 12 | WB1X358 | Speednut |
|
- | |||||
| 13 | WE19X892 | Switch Trim Asm |
|
- | |||||
| 14 | WE1X762 | Clip Grounding |
|
- | |||||
| 17 | WH1X2008 | Clip Trim |
|
- | |||||
| 21 | WE13X76 | Plate Control |
|
- | |||||
| 24 | WZ02X0510 | Screw |
|
- | |||||
| 25 | WE4X352 | Switch Asm 2 Togl |
|
- | |||||
| 29 | WH1X1394 | Pin |
|
- | |||||
| 30 | WE1X835 | Key Switch |
|
- | |||||
| 41 | WE1X980 | Clip Knob |
|
- | |||||
| 71 | WH2X947 | Screw |
|
- | |||||
| 72 | WH46X212 | Weld Asm-housing Ad |
|
- | |||||
| 72 | WH46X211 | Weld Asm-housing Wh |
|
- | |||||
| 72 | WH46X215 | Weld Asm-housing Ha |
|
- | |||||
| 75 | WG04A00781 | Screw 8-18 Ab Hxw 3/8 (Replaces: WH2X930) |
|
Immediately | $ 3.97 | ||||
| 100 | WE4X738 | Timer Asm |
|
- | |||||
| 167 | WE2X186 | Screw |
|
- | |||||
| 185 | WZ20X0007 | Hanger Cable |
|
- | |||||
| 211 | WE1X553 | Gasket Insulating |
|
- | |||||
| 9999 | 31-1702 | Pm Instruction Instal |
|
- | |||||
| 9999 | 49-9663 | Pm Manual Use Care |
|
- |
