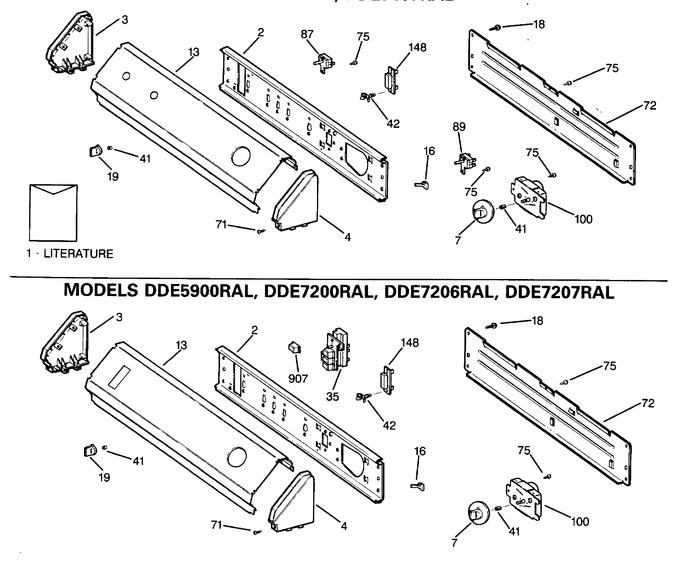

SELECT A DIAGRAM

1 - Component Group


2 - Cabinet & Top


3 - Cabinet Front


4 - Drum & Heater Asm.


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-1702		Pm Instruction Instal		Appelez-nous	-
1	31-2553		Mini-manual		Appelez-nous	-
1	49-9701		Manual Use & Care		Appelez-nous	-
2	WH46X312		Plate Mounting		Appelez-nous	-
3	WH42X2225		End Cap L.h. Bk		Appelez-nous	-
4	WH42X2226		End Cap R.h. Bk		Appelez-nous	-
7	WE1X1178		Knob & Clip Timer		Appelez-nous	-
13	WE19X924		Switch Trim		Appelez-nous	-
16	WH2X1151		Clip Ground		Appelez-nous	-
18	WH2X1152		Screw 8-16x5/8 Hx		Appelez-nous	-
19	WH1X2274		Knob & Clip Asm		Appelez-nous	-
41	WE1X980		U Clip		Appelez-nous	-
71	WH2X1153		Screw 8-18x1 Ph		Appelez-nous	-
72	WH46X311		Panel Access		Appelez-nous	-
75	WG04A00781		Scr 8-18 Ab Hxw 3/8 S   (Replaces: WH2X930)			Immediately	$ 3.97
87	WE4X781		Switch Rotary Temp		Appelez-nous	-
89	WE4X782		Switch Rotary Start		Appelez-nous	-
100	WE4X788		Timer		Appelez-nous	-
150	WZ20X0007		Hanger Cable		Appelez-nous	-
178	WH2X939		Scr 6-19 Pt Hx 1/4 S		Appelez-nous	-
391	WE20X760		Top Ha		Appelez-nous	-
395	WE10X260		Door Asm Ha		Appelez-nous	-
398	WE20X564		Cabinet Front Asm Ha		Appelez-nous	-
679	WZ05X0155		Scr 8-18 Ab Hx 3/8 Ss		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
