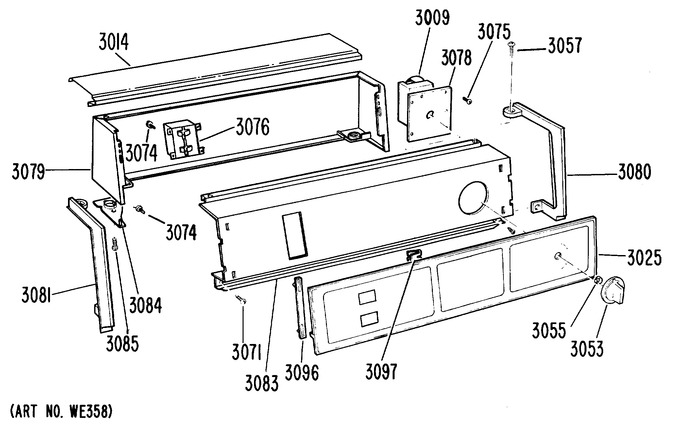

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3009 | WE4X684 | Timer |
|
- | |||||
| 3014 | WE19X810 | Trim Asm Top |
|
- | |||||
| 3025 | WE19X878 | Switch Trim |
|
- | |||||
| 3053 | WE1X1102 | Knob Timer |
|
- | |||||
| 3055 | WE1X5201 | Clip Knob |
|
- | |||||
| 3057 | WZ04X0319 | Scr 8-18 Ba Opr 1 7/16 S |
|
- | |||||
| 3060 | WZ07X0031 | Nut |
|
- | |||||
| 3067 | WE2X343 | Screw |
|
- | |||||
| 3071 | WE2X339 | Screw |
|
- | |||||
| 3074 | WZ04X0345 | Screw 8-18x5/8 Hxw |
|
- | |||||
| 3075 | WE2X342 | Screw |
|
- | |||||
| 3076 | WE4X352 | Switch Asm 2 Togl |
|
- | |||||
| 3078 | WE1X1096 | Plate Timer |
|
- | |||||
| 3079 | WE19X868 | Wrapper Backsplash Wh |
|
- | |||||
| 3080 | WE19X792 | Trim End Rh |
|
- | |||||
| 3081 | WE19X793 | Trim End Lh |
|
- | |||||
| 3083 | WE19X870 | Escutcheon |
|
- | |||||
| 3084 | WE1X553 | Gasket Insulating |
|
- | |||||
| 3085 | WE2X341 | Screw |
|
- | |||||
| 3096 | WE1X577 | Clip Trim |
|
- | |||||
| 3097 | WE1X762 | Clip Grounding |
|
- | |||||
| 9999 | 49-9585 | Use - Care Book |
|
- | |||||
| 9999 | 31-1809 | Install Instr |
|
- |
