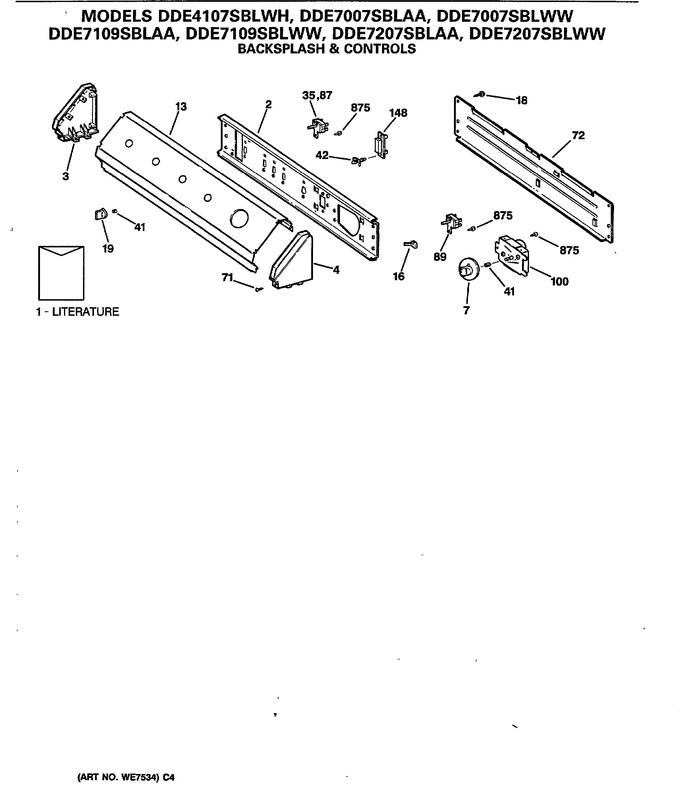

1 - Backsplash & Controls
2 - Cabinet Front
3 - Component Group
4 - Blower & Drive Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-1730 | Install Instructions |
|
- | |||||
| 1 | 31-2704-21 | Pm Sheet Mini Manual |
|
- | |||||
| 1 | 49-9796 | Pm Manual Use & Care |
|
- | |||||
| 2 | WH46X334 | Plate Mounting |
|
- | |||||
| 3 | WH42X2281 | End Cap L.h. Ad |
|
- | |||||
| 4 | WH42X2282 | End Cap R.h. Ad |
|
- | |||||
| 7 | WE1X1205 | Knob Assy Timer |
|
- | |||||
| 13 | WE19X954 | Switch Trim Asm |
|
- | |||||
| 16 | WH2X1151 | Clip Ground |
|
- | |||||
| 18 | WE2X395 | Scr 8-10 Plascrew Ihw5/8 |
|
- | |||||
| 19 | WE1X1208 | Knob & Clip Asm Ad |
|
- | |||||
| 41 | WE1X980 | U Clip |
|
- | |||||
| 42 | WE2X373 | Support Circ Board |
|
- | |||||
| 70 | WH2X937 | Screw 10-15x7/16 Hxw |
|
- | |||||
| 71 | WH2X1157 | Screw 8-18x1 Ad |
|
- | |||||
| 72 | WH46X311 | Panel Access |
|
- | |||||
| 89 | WE4X782 | Switch Rotary Start |
|
- | |||||
| 100 | WE4X831 | Timer Asm |
|
- | |||||
| 148 | WE4X799 | Resistor & Board Asm |
|
- | |||||
| 221 | WE1X1171 | Air Seal |
|
- | |||||
| 233 | WZ04X0236 | Scr |
|
- | |||||
| 292 | WE13X199 | Support Spanner |
|
- | |||||
| 293 | WE9X110 | Seal Duct Filter |
|
- | |||||
| 300 | WE18X54 | Filter Asm |
|
- | |||||
| 307 | WE14X226 | Duct, Air |
|
- | |||||
| 308 | WE9X108 | Felt Duct |
|
- | |||||
| 380 | WG03L00054 | Switch Asm Push Button (Replaces: WE4X197) |
|
Immediately | $ 40.27 | ||||
| 389 | WE10X330 | Liner Door Ad |
|
- | |||||
| 390 | WE1X1174 | Plate |
|
- | |||||
| 391 | WE20X759 | Top Ad |
|
- | |||||
| 393 | WE20X793 | Base & Wrapper Asm Ad |
|
- | |||||
| 395 | WE10X331 | Panel Door Ad |
|
- | |||||
| 398 | WE20X794 | Front Cab Ad |
|
- | |||||
| 400 | WE2X134 | Clip |
|
- | |||||
| 404 | WE1X425 | Plate |
|
- | |||||
| 405 | WE1X468 | Plate Leveling Screw |
|
- | |||||
| 413 | WE14X212 | Panel Access |
|
- | |||||
| 414 | WE1X339 | Ground Strap |
|
- | |||||
| 418 | WZ07X0031 | Nut |
|
- | |||||
| 419 | WE4X168 | Block Terminal |
|
$ 29.10 | |||||
| 420 | WH2X893 | Scr 10-16 Hx 3/8 S |
|
- | |||||
| 452 | WE1X1094 | Bracket Hinge |
|
- | |||||
| 454 | WE3X83 | Bearing, Slide |
|
- | |||||
| 457 | WE13X162 | Bracket Terminal Block |
|
- | |||||
| 460 | WZ04X0264 | Scr 10-16 Ab Hxw 1 S |
|
- | |||||
| 461 | WZ05X0158 | Screw 8-32x3/8 |
|
- | |||||
| 481 | WH2X967 | Scr 12-14 Ab Hxw 1/2 S |
|
- | |||||
| 489 | WH1X2572 | Sleeve Split |
|
- | |||||
| 501 | WE3X77 | Support Front Brg |
|
$ 111.86 | |||||
| 503 | WE21X71 | Drum Asm |
|
- | |||||
| 504 | WE14X86 | Deflector |
|
- | |||||
| 505 | WE4X730 | T'stat Asm Safety |
|
- | |||||
| 506 | WE4X813 | Thermostat Asm |
|
- | |||||
| 507 | LS2-260 | Thermostat L258-50 (Replaces: WE4X584) |
|
$ 13.53 | |||||
| 508 | WE25M40 | Shaft & Bracket Asm (Replaces: WE3X39) |
|
Immediately | $ 157.05 | ||||
| 875 | WG04A00781 | Scr 8-18 Ab Hxw 3/8 S (Replaces: WH2X930) |
|
Immediately | $ 3.97 |
