01 - Compact Exterior Parts


02 - Compact Interior Parts


03 - Compact Interior Parts


04 - Instant Mount


05 - New Automatic Mount

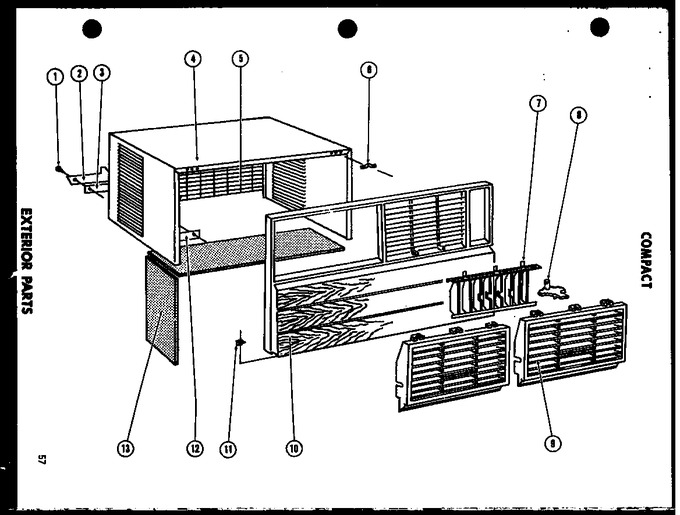

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	M0211516		Screw A K		Appelez-nous	-
2	B4115501		Nameplate		Appelez-nous	-
3	A4588701		Tap Strip		Appelez-nous	-
4	C5215704		Outer Case Weld		Appelez-nous	-
5	C5215201		Screen		Appelez-nous	-
6	M0100306		Clip		Appelez-nous	-
7	D5432801		Air Deflector Vert		Appelez-nous	-
8	B5183001		Slide		Appelez-nous	-
9	D5432702		Horiz.louver		Appelez-nous	-
10	D5462602		Cabinet Front		Appelez-nous	-
10	D5432902		Assembly, Cabinet Front		Appelez-nous	-
11	A4564801		Hook		Appelez-nous	-
12	A4085001		Backer Plate		Appelez-nous	-
13	B5124401		Insulation		Appelez-nous	-
	NOTE:		109-2g/p54390-19r These Models Have An Alternate Compressor With Related Parts Changes.		Appelez-nous	-
NI	B5183301		Filter, Air Inlet		Appelez-nous	-
NI	M0117501		Spring Tension		Appelez-nous	-
NI	A4672601		Gasket		Appelez-nous	-
NI	A4672503		Gasket		Appelez-nous	-
NI	A4672701		Gasket		Appelez-nous	-
NI	D5444901		Insulation		Appelez-nous	-
NI	A4542805		Retainer		Appelez-nous	-
NI	A4680401		Strike		Appelez-nous	-
NI	A4672501		Gasket		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
