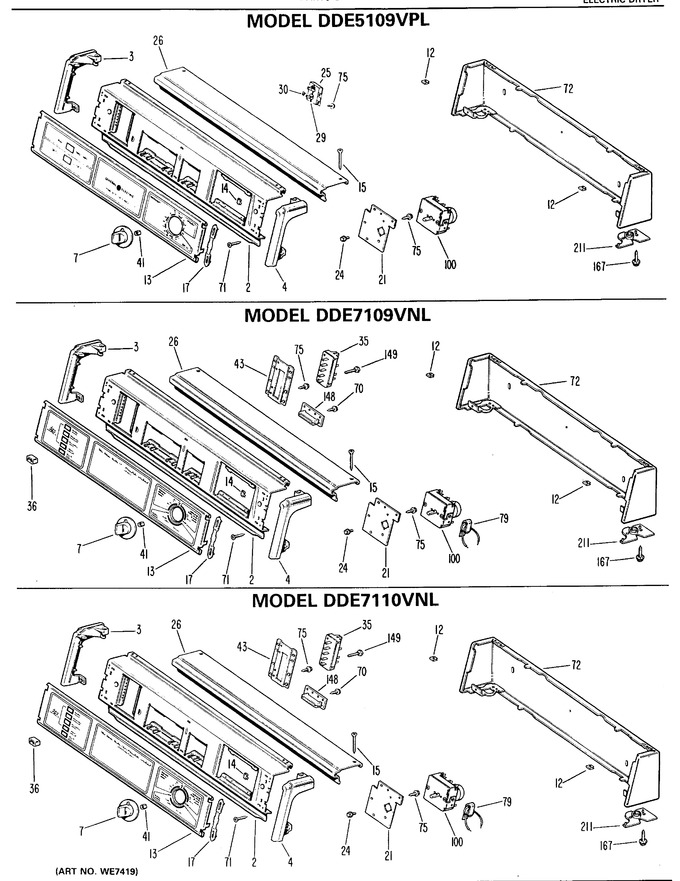

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WE19X719		Escutcheon Asm		Appelez-nous	-
3	WE19X793		Trim End Lh		Appelez-nous	-
4	WE19X792		Trim End Rh		Appelez-nous	-
7	WE1X978		Knob Clip Asm		Appelez-nous	-
12	WB1X358		Speednut		Appelez-nous	-
13	WE19X854		Switch Trim Asm		Appelez-nous	-
14	WE1X762		Clip Grounding		Appelez-nous	-
15	WZ04X0319		Scr 8-18 Ba Opr 1 7/16 S		Appelez-nous	-
17	WH1X2008		Clip Trim		Appelez-nous	-
21	WE13X76		Plate Control		Appelez-nous	-
24	WZ02X0510		Screw		Appelez-nous	-
26	WE19X810		Trim Asm Top		Appelez-nous	-
35	WE4X577		Switch Asm 5 Button		Appelez-nous	-
36	WH1X2257		Button Switch		Appelez-nous	-
41	WE1X980		Clip Knob		Appelez-nous	-
43	WH16X343		Plate Switch		Appelez-nous	-
70	WH2X937		Screw-type A		Appelez-nous	-
71	WH2X947		Screw		Appelez-nous	-
72	WH46X211		Weld Asm-housing Wh		Appelez-nous	-
72	WH46X212		Weld Asm-housing Ad		Appelez-nous	-
72	WH46X215		Weld Asm-housing Ha		Appelez-nous	-
75	WG04A00781		Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930)			Immediately	$ 3.97
79	WE1X690		Buzzer		Appelez-nous	-
100	WE4X676		Timer Asm		Appelez-nous	-
148	WE4X499		Resistor Board		Appelez-nous	-
149	WZ04X0280		Screw 8-18 Hxw		Appelez-nous	-
167	WE2X186		Screw		Appelez-nous	-
211	WE1X553		Gasket Insulating		Appelez-nous	-
481	WH2X967		Scr 12-14 Ab Hxw 1/2 S		Appelez-nous	-
9999	49-9592		Pm Manual Use & Care		Appelez-nous	-
9999	31-1814		Pm Instruction Instl		Appelez-nous	-
