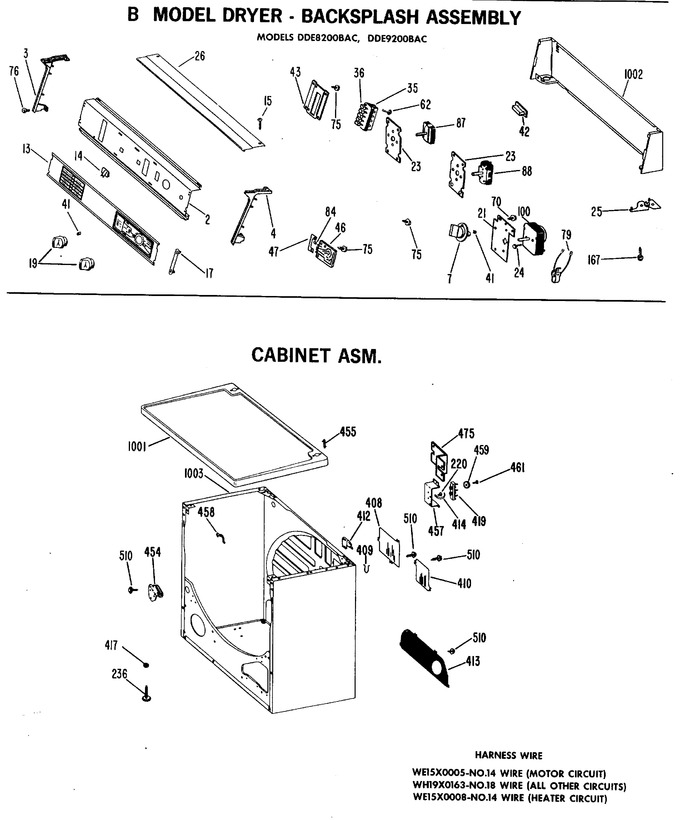

1 - B Model Dryer - Backsplash Assembly
2 - Blower & Drive Asm.
3 - Cabinet Front Asm.
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WE19X733 | Escutcheon Asm |
|
- | |||||
| 3 | WE19X793 | Trim End Lh |
|
- | |||||
| 4 | WE19X792 | Trim End Rh |
|
- | |||||
| 7 | WE1X978 | Knob Clip Asm |
|
- | |||||
| 13 | WE19X790 | Switch Trim Asm |
|
- | |||||
| 14 | WE1X762 | Clip Grounding |
|
- | |||||
| 15 | WZ04X0319 | Scr 8-18 Ba Opr 1 7/16 S |
|
- | |||||
| 17 | WH1X2008 | Clip Trim |
|
- | |||||
| 19 | WE1X979 | Knob And Clip Asm |
|
- | |||||
| 21 | WE13X76 | Plate Control |
|
- | |||||
| 23 | WH16X434 | Bracket Switch |
|
- | |||||
| 24 | WZ02X0510 | Screw |
|
- | |||||
| 25 | WE1X926 | Gasket-housing |
|
- | |||||
| 26 | WE19X791 | Trim Asm-top |
|
- | |||||
| 35 | WE4X616 | Switch Asm 5 Button |
|
- | |||||
| 36 | WE1X981 | Button Switch |
|
- | |||||
| 41 | WE1X980 | Clip Knob |
|
- | |||||
| 43 | WH16X343 | Plate Switch |
|
- | |||||
| 46 | WE4X425 | Board Asm Circuit |
|
- | |||||
| 47 | WE1X706 | Retainer |
|
- | |||||
| 62 | 8-18X3/4 | Screw 8-18 X 3/4 Hex |
|
- | |||||
| 70 | WH2X937 | Screw-type A |
|
- | |||||
| 72 | WH2X5137 | Screw 8-32 X 5/32 Pan |
|
- | |||||
| 75 | WG04A00781 | Screw 8-18 Ab Hxw 3/8 (Replaces: WH2X930) |
|
Immediately | $ 3.97 | ||||
| 76 | WZ05X0120 | Screw |
|
- | |||||
| 79 | WE1X690 | Buzzer |
|
- | |||||
| 84 | WE1X704 | Terminal Special |
|
- | |||||
| 87 | WE4X605 | Switch Asm Rotary |
|
- | |||||
| 88 | WE4X614 | Switch-selector |
|
- | |||||
| 100 | WE4X611 | Timer Asm |
|
- | |||||
| 167 | WE2X186 | Screw |
|
- | |||||
| 220 | WE2X275 | Screw 8-18 X 1/2 Hex |
|
- | |||||
| 236 | WG04L00345 | Scr 5/16-24 Lvl 2 S (Replaces: WE2X229) |
|
Immediately | $ 4.04 | ||||
| 326 | WE1X902 | Bearing |
|
- | |||||
| 408 | WE1X754 | Cover-bearing |
|
- | |||||
| 409 | WE1X353 | Hanger-cable |
|
- | |||||
| 410 | WE1X755 | Cover-terminal |
|
- | |||||
| 412 | WH1X1923 | Clip Cover |
|
- | |||||
| 413 | WE14X103 | Panel-access |
|
- | |||||
| 414 | WE1X339 | Ground Strap |
|
- | |||||
| 417 | WZ07X0038 | Nut |
|
- | |||||
| 418 | WZ07X0031 | Nut |
|
- | |||||
| 419 | WE4X168 | Block Terminal |
|
$ 29.10 | |||||
| 420 | WH2X893 | Scr 10-16 Hx 3/8 S |
|
- | |||||
| 454 | WE13X93 | Slide Asm |
|
- | |||||
| 455 | WH1X1946 | Strap Cover |
|
- | |||||
| 457 | WE13X119 | Bracket-terminal Block |
|
- | |||||
| 458 | WE1X408 | Clip Cable |
|
- | |||||
| 459 | WE2X92 | Washer Cup |
|
- | |||||
| 461 | WZ05X0158 | Screw 8-32x3/8 Grd Scr |
|
- | |||||
| 475 | WH16X317 | Shield |
|
- | |||||
| 510 | WE2X263 | Screw 10-16x1/2 Hxw |
|
- | |||||
| 545 | WB2X817 | Terminal 1/4" Female |
|
- | |||||
| 548 | WB17X151 | Terminal |
|
- | |||||
| 549 | WB17X145 | Terminal For Wb17x0147 |
|
- | |||||
| 643 | WE19X681 | Escutcheon Asm |
|
- | |||||
| 1001 | WE20X584 | Weld Asm-cover Cf |
|
- | |||||
| 1001 | WE20X586 | Weld Asm-cover Ha |
|
- | |||||
| 1001 | WE20X583 | Weld Asm-cover Ad |
|
- | |||||
| 1001 | WE20X582 | Weld Asm-cover Wh |
|
- | |||||
| 1001 | WE20X585 | Weld Asm-cover Fa |
|
- | |||||
| 1002 | WE19X703 | Backsplash Wrapper Cf |
|
- | |||||
| 1002 | WE19X701 | Backsplash Wrapper Fa |
|
- | |||||
| 1002 | WE20X441 | Backsplash Wrapper Wh |
|
- | |||||
| 1002 | WE19X702 | Backsplash Wrapper Ha |
|
- | |||||
| 1002 | WE19X704 | Backsplash Wrapper Ad |
|
- | |||||
| 1003 | WE20X536 | Base - Wrapper Asm Cf |
|
- | |||||
| 1003 | WE20X534 | Base - Wrapper Asm Fa |
|
- | |||||
| 1003 | WE20X537 | Base - Wrapper Asm Ad |
|
- | |||||
| 1003 | WE20X535 | Base - Wrapper Asm Ha |
|
- | |||||
| 1003 | WE20X507 | Base - Wrapper Asm Wh |
|
- | |||||
| 9999 | 49-9401 | Use - Care Book |
|
- | |||||
| 9999 | 49-9402 | Instruction Sheet |
|
- | |||||
| 9999 | 49-9043 | Installation Instr |
|
- |
