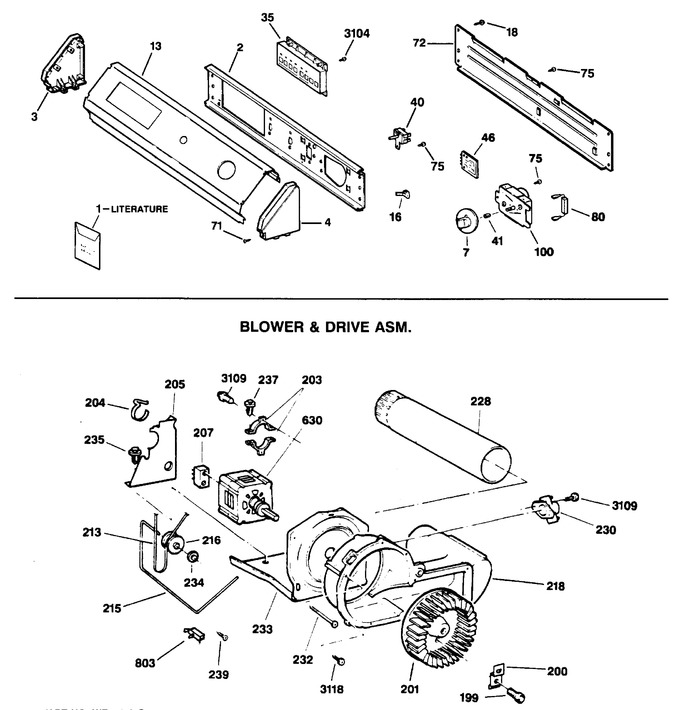

1 - Backsplash Assembly
2 - Component Group
3 - Component Group
4 - Component Group
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-2588 | Mini-manual |
|
- | |||||
| 1 | 49-9798 | Manual, Use & Care |
|
- | |||||
| 1 | 31-1733 | Install Instructions |
|
- | |||||
| 2 | WH46X330 | Plate Mounting |
|
- | |||||
| 3 | WH42X2227 | End Cap L.h. Wh |
|
- | |||||
| 4 | WH42X2228 | End Cap R.h. Wh |
|
- | |||||
| 7 | WE1X1204 | Knob Assy Timer, Wh |
|
- | |||||
| 13 | WE19M869 | Switch Trim Asm, Wh |
|
- | |||||
| 16 | WH2X1151 | Clip Ground |
|
- | |||||
| 18 | WH2X1152 | Screw 8-16x5/8 Hx |
|
- | |||||
| 35 | WE4M167 | Switch, Low Trvl Wh |
|
- | |||||
| 40 | WE1X690 | Buzzer |
|
- | |||||
| 41 | WE1X980 | U Clip |
|
- | |||||
| 46 | WE4X777 | Board Circuit |
|
- | |||||
| 71 | WH2X1155 | Screw 8-18x1 Ph, Wh |
|
- | |||||
| 72 | WH46X311 | Panel Access |
|
- | |||||
| 75 | WG04A00781 | Scr 8-18 Ab Hxw 3/8 S (Replaces: WH2X930) |
|
Immediately | $ 3.97 | ||||
| 100 | WE4X794 | Timer |
|
- | |||||
| 199 | WE2X280 | Scr 14-10 A Hx 1 S |
|
- | |||||
| 200 | WG04A01065 | Clamp (Replaces: WE1X688) |
|
$ 73.76 | |||||
| 201 | WW02A00073 | Wheel Blower (Replaces: WE16X17) |
|
Immediately | $ 64.24 | ||||
| 203 | WE13X182 | Strap Motor |
|
- | |||||
| 204 | WE1X921 | Strap Motor |
|
- | |||||
| 205 | WE13M22 | Bracket Motor |
|
- | |||||
| 207 | WW02F00346 | Switch-start Form J Mtr. (Replaces: WE4X710) |
|
Immediately | $ 112.18 | ||||
| 213 | WG03F00846 | Belt Drive (Replaces: WE12X82) |
|
Immediately | $ 52.50 | ||||
| 215 | WW02A00060 | Spring Idler (Replaces: WE3M17) |
|
$ 12.60 | |||||
| 216 | WW02F00871 | Pulley Idler (Replaces: WE12M8) |
|
Immediately | $ 5.96 | ||||
| 218 | WE14M55 | Housing Blower |
|
- | |||||
| 228 | WE14M54 | Elbow Exhaust |
|
- | |||||
| 230 | WE4M156 | Thermostat (poly) |
|
- | |||||
| 232 | WW02A00032 | Screw (Replaces: WE2M156) |
|
$ 3.97 | |||||
| 233 | WE13M24 | Bracket Motor |
|
- | |||||
| 234 | WG04A00124 | Cap Nut (Replaces: WE2M96) |
|
$ 10.12 | |||||
| 235 | WE2M155 | Screw |
|
- | |||||
| 237 | WE2M148 | Screw |
|
- | |||||
| 239 | WE2M167 | Screw |
|
- | |||||
| 630 | WG04F00726 | Motor Asm (Replaces: WE17X32) |
|
Immediately | $ 290.62 | ||||
| 803 | WW02F00249 | Switch Interlock (Replaces: WD21X557) |
|
Immediately | $ 17.47 | ||||
| 3104 | WW01A00521 | Screw (Replaces: WE1M280) |
|
$ 3.97 | |||||
| 3109 | WE2M154 | Screw |
|
- | |||||
| 3118 | WH2M342 | Screw |
|
- |
