View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

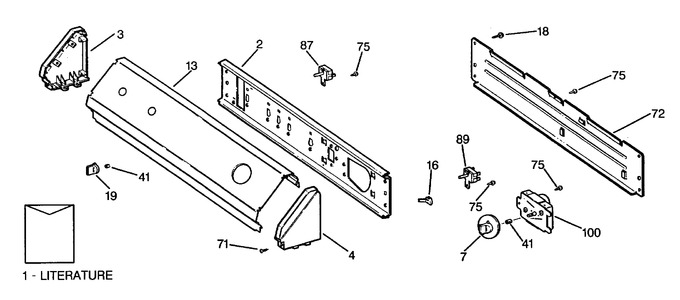

1 - Component Group
2 - Component Group
3 - Drum & Duct Assembly
4 - Cabinet Front Asm.
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 49-9701 | Manual Use & Care |
|
- | |||||
| 1 | 31-1706 | Pm Instruction Instal |
|
- | |||||
| 1 | 31-2569 | Mini-manual |
|
- | |||||
| 2 | WH46X312 | Plate Mounting |
|
- | |||||
| 3 | WH42X2227 | End Cap L.h. Wh |
|
- | |||||
| 4 | WH42X2228 | End Cap R.h. Wh |
|
- | |||||
| 7 | WG04L04237 | Knob & Clip Timer (Replaces: WE1X1179) |
|
Immediately | $ 20.65 | ||||
| 13 | WE19X943 | Switch Trim Asm |
|
- | |||||
| 16 | WH2X1151 | Clip Ground |
|
- | |||||
| 18 | WH2X1152 | Screw 8-16x5/8 Hx |
|
- | |||||
| 19 | WE1X1180 | Knob & Clip Switch |
|
- | |||||
| 41 | WE1X980 | U Clip |
|
- | |||||
| 70 | WH2X937 | Screw |
|
- | |||||
| 71 | WH2X1155 | Screw 8-18 B 0vt Is Wh |
|
- | |||||
| 72 | WH46X311 | Panel Access |
|
- | |||||
| 87 | WE4X778 | Switch Rotary Temp |
|
- | |||||
| 89 | WE4X782 | Switch Rotary Start |
|
- | |||||
| 100 | WE4X788 | Timer |
|
- | |||||
| 178 | WH2X939 | Scr 6-19 Pt Hx 1/4 S |
|
- | |||||
| 215 | WE3X69 | Spring Idler |
|
- | |||||
| 398 | WE20X500 | Weld Asm Cab Front Wh |
|
- | |||||
| 461 | WZ05X0158 | Screw 8-32x3/8 |
|
- | |||||
| 702 | WE2X319 | Nut |
|
- | |||||
| 704 | WE2X320 | Nipple Gas Valve |
|
- | |||||
| 709 | WE1X1148 | Orifice |
|
- | |||||
| 710 | WE1X1076 | Leak Limiter |
|
- | |||||
| 711 | 1/8-27 NPT | Plug Pipe (not Stocked) |
|
- | |||||
| 712 | WW02F00099 | Gas Valve Asm (Replaces: WE14X215) |
|
Immediately | $ 171.67 | ||||
| 713 | WE1X1078 | Valve Shutoff |
|
- | |||||
| 714 | WE1X1077 | Pipe & Lug Asm |
|
- | |||||
| 716 | WE1X1068 | Burner Asm |
|
- | |||||
| 717 | SDEUNIV | Igniter (Replaces: WE4X444) |
|
Immediately | $ 81.97 | ||||
| 718 | WZ04X0220 | Scr 6-20 Ab Hxw 1/2 S |
|
- | |||||
| 719 | WE1X1075 | Spring & Lead Asm |
|
- | |||||
| 721 | WE13X118 | Bracket Spacer |
|
- | |||||
| 723 | WE13X195 | Bracket Gas Valve |
|
- | |||||
| 729 | 279834 | Coil Dual (Replaces: WE4X692) |
|
Immediately | $ 32.85 | ||||
| 730 | WE2X333 | Screw (coil Mtg Brkt) |
|
- | |||||
| 731 | 279834 | Coil Main (Replaces: WE4X693) |
|
Immediately | $ 32.85 | ||||
| 732 | WE13X169 | Brkt. Coil |
|
- | |||||
| 752 | WZ04X0345 | Screw |
|
- |
