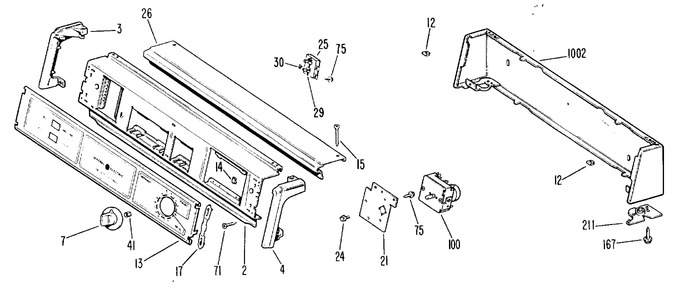

1 - Component Group


2 - Cabinet Assembly


3 - Drum & Duct Assembly


4 - Cabinet Front Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WE19X719		Escutcheon Asm		Appelez-nous	-
3	WE19X793		Trim End Lh		Appelez-nous	-
4	WE19X792		Trim End Rh		Appelez-nous	-
7	WE1X978		Knob Clip Asm		Appelez-nous	-
12	WB1X358		Speednut		Appelez-nous	-
13	WE19X867		Switch Trim Asm		Appelez-nous	-
14	WE1X762		Clip Grounding		Appelez-nous	-
15	WZ04X0319		Scr 8-18 Ba Opr 1 7/16 S		Appelez-nous	-
17	WH1X2008		Clip Trim		Appelez-nous	-
21	WE13X76		Plate Control		Appelez-nous	-
24	WZ02X0510		Screw		Appelez-nous	-
25	WE4X352		Switch Asm 2 Togl		Appelez-nous	-
26	WE19X810		Trim Asm Top		Appelez-nous	-
29	WH1X1394		Pin		Appelez-nous	-
30	WE1X835		Key Switch		Appelez-nous	-
41	WE1X980		Clip Knob		Appelez-nous	-
70	WH2X937		Screw-type A		Appelez-nous	-
71	WH2X947		Screw		Appelez-nous	-
75	WG04A00781		Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930)			Immediately	$ 3.97
100	WE4X525		Timer Asm		Appelez-nous	-
167	WE2X186		Screw		Appelez-nous	-
211	WE1X553		Gasket Insulating		Appelez-nous	-
1002	WH46X211		Weld Asm-housing Wh		Appelez-nous	-
1002	WH46X212		Weld Asm-housing Ad		Appelez-nous	-
1002	WH46X215		Weld Asm-housing Ha		Appelez-nous	-
9999	49-9524		Pm Use & Care Book		Appelez-nous	-
9999	31-1584		Pm Instruction Instl		Appelez-nous	-
