SELECT A DIAGRAM

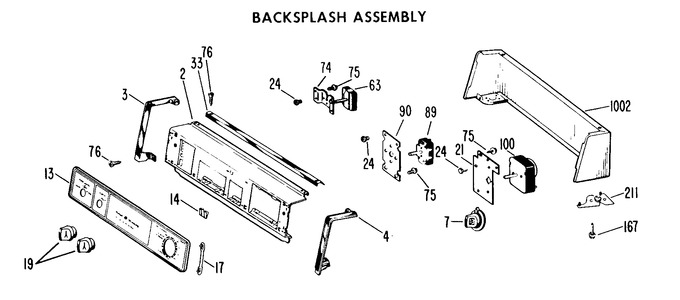

1 - Backsplash Assembly


2 - Cabinet Assembly


3 - Cabinet Front Assembly


4 - Drum & Duct Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WE19X719		Escutcheon Asm		Appelez-nous	-
3	WH42X974		Trim-end L.h.		Appelez-nous	-
4	WH42X975		Trim-end R.h.		Appelez-nous	-
7	WE1X978		Knob Clip Asm		Appelez-nous	-
12	WB1X358		Speednut		Appelez-nous	-
13	WE19X801		Switch Trim Asm		Appelez-nous	-
14	WE1X762		Clip Grounding		Appelez-nous	-
17	WE1X577		Clip Trim		Appelez-nous	-
19	WE1X979		Knob And Clip Asm		Appelez-nous	-
21	WE13X76		Plate Control		Appelez-nous	-
24	WZ02X0510		Screw		Appelez-nous	-
32	WH16X370		Strap Steel		Appelez-nous	-
33	WE19X310		Trim Rear		Appelez-nous	-
41	WE1X980		Clip Knob		Appelez-nous	-
63	WE4X606		Switch Asm Rotary		Appelez-nous	-
70	WH2X937		Screw-type A		Appelez-nous	-
71	WH2X947		Screw		Appelez-nous	-
74	WE13X137		Bracket Switch		Appelez-nous	-
75	WG04A00781		Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930)			Immediately	$ 3.57
76	WZ05X0120		Screw		Appelez-nous	-
89	WE4X679		Switch Rotary Start		Appelez-nous	-
90	WH16X434		Bracket Switch		Appelez-nous	-
100	WE4X625		Timer Asm		Appelez-nous	-
167	WE2X186		Screw		Appelez-nous	-
179	WZ04X0288		Scr 10-16 Ab Hxw 1/2s #8		Appelez-nous	-
195	WH2X885D		Nut   (Replaces: WH2X885)		Appelez-nous	-
199	WE2X280		Scr 14-10 A Hx 1 S		Appelez-nous	-
200	WG04A01065		Clamp   (Replaces: WE1X688)				$ 66.38
201	WW02A00073		Wheel Blower   (Replaces: WE16X17)			Immediately	$ 57.82
202	WE1X689		Baffle Blower Housing		Appelez-nous	-
203	WE13X51		Strap Motor		Appelez-nous	-
204	WE1X921		Strap Motor		Appelez-nous	-
205	WE13X161		Bracket Motor		Appelez-nous	-
207	WE4X344		Switch-start Form T Mtr		Appelez-nous	-
211	WE1X553		Gasket Insulating		Appelez-nous	-
213	WG03F00846		Belt Drive   (Replaces: WE12X42)			Immediately	$ 47.25
215	WE3X62		Spring Idler		Appelez-nous	-
216	WW02F00871		Pulley Asm Idler   (Replaces: WE12X47)			Immediately	$ 5.36
217	WE13X159		Bracket Idler Spring		Appelez-nous	-
218	WE14X134		Housing Blower		Appelez-nous	-
220	WE2X275		Screw 8-18 X 1/2 Hex		Appelez-nous	-
228	WE14X139		Elbow Exhaust		Appelez-nous	-
232	5366021400		Latch Door   (Replaces: WE1X1032)			Immediately	$ 55.99
233	WZ04X0236		Scr		Appelez-nous	-
234	WE2X154		Palnut				$ 49.62
235	WE2X194		Screw		Appelez-nous	-
236	WG04L00345		Scr 5/16-24 Lvl 2 S   (Replaces: WE2X229)			Immediately	$ 3.64
243	WZ05X0155		Scr 8-18 Ab Hx 3/8 Ss		Appelez-nous	-
245	WE1X1055		Shield-wire		Appelez-nous	-
247	WW02F00871		Bearing   (Replaces: WE1X759)			Immediately	$ 5.36
250	WE12X41		Pulley Drive		Appelez-nous	-
272	WE4X607		Thermostat Asm L142-24		Appelez-nous	-
273	WE4X608		Thermostat Asm L135-10		Appelez-nous	-
300	WG04F00431		Filter Asm Lint   (Replaces: WE18X26)			Immediately	$ 24.31
303	WE2X270		Scr 8-15 A Tr 1/2 S		Appelez-nous	-
305	WE1X944		Cover Thermostat		Appelez-nous	-
306	WE1X409		Clamp		Appelez-nous	-
307	WE14X144		Duct Trap		Appelez-nous	-
308	WE9X38		Seal Asm Felt				$ 58.83
310	WE1X446		Plate Closure		Appelez-nous	-
311	WE2X192		Clip		Appelez-nous	-
312	WE2X191		Rivet		Appelez-nous	-
380	WG03L00054		Switch Asm Pb Door   (Replaces: WE4X197)			Immediately	$ 36.24
400	WE2X134		Clip		Appelez-nous	-
402	WE20X347		Toeboard		Appelez-nous	-
403	WE14X37		Brace Cabinet Top		Appelez-nous	-
404	WE1X425		Plate		Appelez-nous	-
405	WE1X468		Plate Leveling Screw		Appelez-nous	-
406	WZ04X0236		Scr		Appelez-nous	-
411	WE1X426		Wrapper Cabinet Knockout		Appelez-nous	-
413	WE14X66		Box Recess		Appelez-nous	-
417	WZ07X0038		Nut		Appelez-nous	-
420	WH2X893		Scr 10-16 Hx 3/8 S		Appelez-nous	-
432	WL02X0071		Nut		Appelez-nous	-
446	WE2X279		Washer		Appelez-nous	-
452	WH16X431		Bracket Hinge		Appelez-nous	-
453	WE13X80		Support Level Screw		Appelez-nous	-
454	WE25X60		Slide Asm				$ 15.15
456	WE1X617		Clamp-pipe		Appelez-nous	-
457	WE1X937		Counterweight Dryer		Appelez-nous	-
460	WZ04X0264		Scr 10-16 Ab Hxw 1 S		Appelez-nous	-
461	WZ05X0158		Screw 8-32x3/8 Grd Scr		Appelez-nous	-
463	WE1X956		Bushing		Appelez-nous	-
481	WH2X967		Scr 12-14 Ab Hxw 1/2 S		Appelez-nous	-
500	WE1X299		Clip		Appelez-nous	-
501	WE9X30		Seal Asm		Appelez-nous	-
503	WE21X49		Drum Asm		Appelez-nous	-
504	WE14X86		Deflector		Appelez-nous	-
508	WE25M40		Shaft Bracket Asm   (Replaces: WE3X39)			Immediately	$ 157.05
510	WE2X263		Screw 10-16x1/2 Hxw		Appelez-nous	-
513	WG04A00067		Bearing Retainer   (Replaces: WE1X461)				$ 7.33
515	WE1X627		Strap Ground		Appelez-nous	-
516	WE2X169		Nut Sheet Metal		Appelez-nous	-
523	WE2X183		Washer Flat		Appelez-nous	-
524	WE1X5104		Ring Retaining		Appelez-nous	-
525	WE25X98		Pack Asm Installation		Appelez-nous	-
526	WE14X112		Chamber Combustion 6'		Appelez-nous	-
527	WE14X83		Duct Asm		Appelez-nous	-
528	WE14X72		Plate Diffuser		Appelez-nous	-
530	WE4X592		Thermostat L300-40		Appelez-nous	-
531	WE13X138		Bracket Thermostat		Appelez-nous	-
532	WE14X125		Diffuser Seal Asm		Appelez-nous	-
534	WE2X153		Screw		Appelez-nous	-
539	WE2X195		Washer		Appelez-nous	-
540	WE2X198		Washer Flat		Appelez-nous	-
543	WE3X37		Bearing-drum		Appelez-nous	-
550	WE2X281		Scr 8-18 Ab Hwx 3/8 S		Appelez-nous	-
551	WE9X44		Pad Felt		Appelez-nous	-
552	WE4X448		Detector Asm		Appelez-nous	-
555	WB17X5053		Terminal		Appelez-nous	-
556	WH12X497		Housing Terminal		Appelez-nous	-
557	WE8X31		Cordset Asm		Appelez-nous	-
559	WH12X538		Housing Terminal		Appelez-nous	-
562	WB17X5054		Terminal		Appelez-nous	-
603	WE1X257		Handle Door		Appelez-nous	-
604	WE2X227		Scr 10-24 T 13/16		Appelez-nous	-
605	WZ10X0016		Washer		Appelez-nous	-
606	WE1X1042		Strike		Appelez-nous	-
607	WE2X110		Nut Sheet Metal K		Appelez-nous	-
608	WE1X345		Bracket Asm Hinge		Appelez-nous	-
609	WE1X404		Bushing Hinge		Appelez-nous	-
610	WE9X28		Gasket Door		Appelez-nous	-
613	WE1X344		Bracket Asm Hinge		Appelez-nous	-
614	WZ04X0257		Scr 10-32 Tt T 3/8 S		Appelez-nous	-
617	WH2X782		Nut Clip		Appelez-nous	-
622	WE2X177		Scr 10-32 M Rd 1/2 S		Appelez-nous	-
630	WG04F00726		Motor Asm   (Replaces: WE17X32)			Immediately	$ 261.56
703	8-32X7/16		Scr (gas Valve Asm)		Appelez-nous	-
709	WE1X968		Orifice		Appelez-nous	-
710	WE1X606		Leak Limiter		Appelez-nous	-
712	WE14X141		Valve Asm		Appelez-nous	-
713	WE1X758		Valve Asm Shutoff		Appelez-nous	-
714	WE1X804		Pipe & Lug Asm		Appelez-nous	-
715	WD2X5063		Scr 8-18 Ph Hx 13/32 S		Appelez-nous	-
716	WE1X967		Burner Asm		Appelez-nous	-
717	SDEUNIV		Igniter   (Replaces: WE4X444)			Immediately	$ 63.58
718	WZ04X0220		Scr 6-20 Ab Hxw 1/2 S		Appelez-nous	-
719	WE1X941		Spring Asm		Appelez-nous	-
720	WE13X116		Bracket Igniter		Appelez-nous	-
721	WE13X118		Bracket Spacer		Appelez-nous	-
723	WE13X117		Bracket Valve		Appelez-nous	-
724	WZ04X0288		Scr 10-16 Ab Hxw 1/2s #8		Appelez-nous	-
725	WH12X237		Housing Terminal		Appelez-nous	-
726	6-32X7/16		Scr (gas Valve Asm)		Appelez-nous	-
727	WH1X1719		Terminal		Appelez-nous	-
728	WH12X242		Housing Terminal		Appelez-nous	-
729	WE4X560		Coil Asm Split Coil		Appelez-nous	-
730	8-32X5/8		Scr (gas Valve Asm)		Appelez-nous	-
1001	WE20X665		Weld Asm Cover Ad		Appelez-nous	-
1001	WE20X666		Weld Asm Cover Ha		Appelez-nous	-
1001	WE20X667		Weld Asm Cover Fa		Appelez-nous	-
1001	WE20X664		Weld Asm Cover Wh		Appelez-nous	-
1002	WH46X211		Weld Asm-housing Wh		Appelez-nous	-
1002	WH46X214		Weld Asm-housing Fa		Appelez-nous	-
1002	WH46X212		Weld Asm-housing Ad		Appelez-nous	-
1002	WH46X215		Weld Asm-housing Ha		Appelez-nous	-
1003	WE20X672		Cabinet Asm Wh		Appelez-nous	-
1003	WE20X670		Cabinet Asm Ad		Appelez-nous	-
1003	WE20X671		Cabinet Asm Ha		Appelez-nous	-
1005	WE10X262		Door Asm Ad		Appelez-nous	-
1005	WE10X259		Door Asm Fa		Appelez-nous	-
1005	WE10X260		Door Asm Ha		Appelez-nous	-
1005	WE10X258		Door Asm Wh		Appelez-nous	-
1008	WE20X500		Weld Asm Cab Front Wh		Appelez-nous	-
1008	WE20X567		Cabinet Front Asm Fa		Appelez-nous	-
1008	WE20X570		Weld Asm Cab Front Ad		Appelez-nous	-
1008	WE20X568		Weld Asm Cab Front Ha		Appelez-nous	-
1009	WE10X253		Door Access Fa		Appelez-nous	-
1009	WE10X254		Door Access Ha		Appelez-nous	-
1009	WE10X256		Door Access Ad		Appelez-nous	-
1009	WE10X205		Door Access Wh		Appelez-nous	-
9999	49-9422-1		Pm Instruction Sheet		Appelez-nous	-
9999	49-9066		Pm Instruction Instal		Appelez-nous	-
9999	49-9459		Pm Use & Care Book		Appelez-nous	-
