SELECT A DIAGRAM

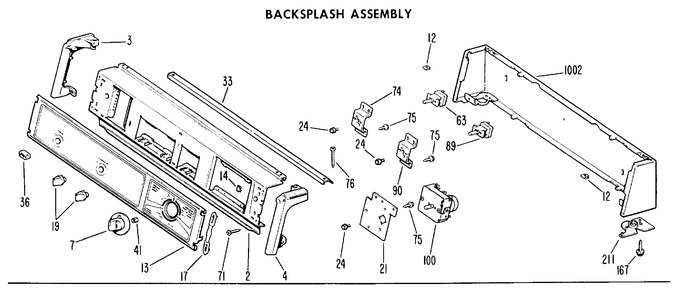

1 - Backsplash Assembly


2 - Backsplash Assembly


3 - Cabinet Assembly


4 - Drum & Duct Assembly


5 - Cabinet Front Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WE19X719		Escutcheon Asm		Appelez-nous	-
3	WE19X793		Trim End Lh		Appelez-nous	-
4	WE19X792		Trim End Rh		Appelez-nous	-
7	WE1X978		Knob & Clip Asm		Appelez-nous	-
12	WB1X358		Nut Sheet Metal		Appelez-nous	-
13	WE19X854		Switch Trim Asm		Appelez-nous	-
14	WE1X762		Clip Ground		Appelez-nous	-
17	WH1X2008		Clip Trim		Appelez-nous	-
21	WE13X76		Plate Control		Appelez-nous	-
24	WZ02X0510		Scr 8-32 M Hx 3/16 S		Appelez-nous	-
36	WH1X2257		Button Switch		Appelez-nous	-
41	WE1X980		Clip Knob		Appelez-nous	-
71	WH2X947		Scr 8-18 Ab Ov 3/4 S		Appelez-nous	-
75	WG04A00781		Scr 8-18 Ab Hxw 3/8 S   (Replaces: WH2X930)			Immediately	$ 3.97
100	WE4X676		Timer Asm		Appelez-nous	-
167	WE2X186		Scr 1/4-14 Ab Hxw 3/4 S		Appelez-nous	-
211	WE1X553		Gasket Insulating		Appelez-nous	-
1002	WH46X215		Backsplash Wrapper Ha		Appelez-nous	-
1002	WH46X212		Backsplash Wrapper Ad		Appelez-nous	-
1002	WH46X211		Backsplash Wrapper Wh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
