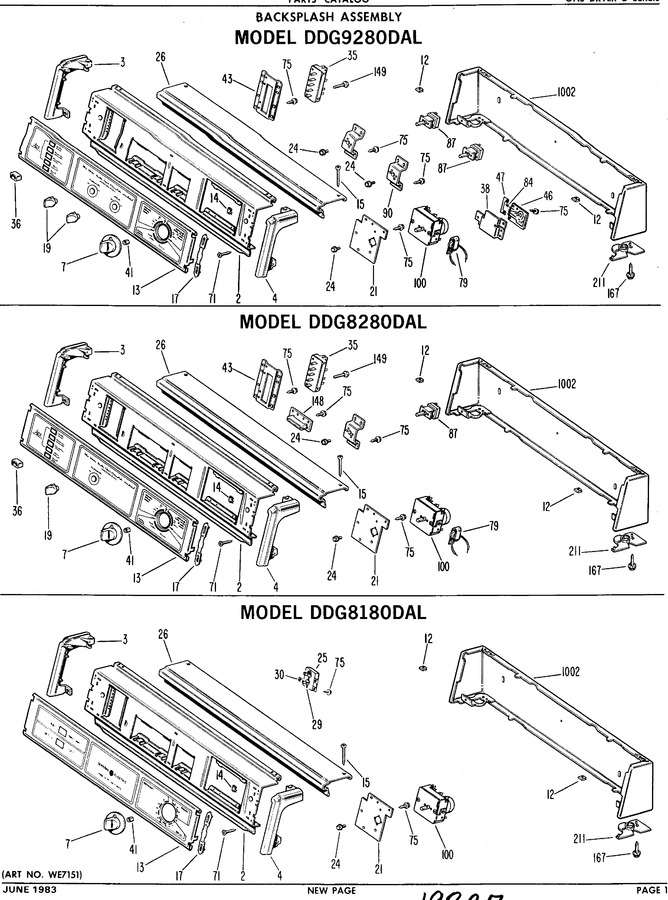

1 - Backsplash Assembly
2 - Cabinet Assembly
3 - Cabinet Front Assembly
4 - Blower & Drive Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WE19X719 | Escutcheon Asm |
|
- | |||||
| 3 | WE19X793 | Trim End Lh |
|
- | |||||
| 4 | WE19X792 | Trim End Rh |
|
- | |||||
| 7 | WE1X978 | Knob Clip Asm |
|
- | |||||
| 12 | WB1X358 | Speednut |
|
- | |||||
| 13 | WE19X833 | Switch Trim Asm |
|
- | |||||
| 14 | WE1X762 | Clip Grounding |
|
- | |||||
| 15 | WZ04X0319 | Scr 8-18 Ba Opr 1 7/16 S |
|
- | |||||
| 17 | WH1X2008 | Clip Trim |
|
- | |||||
| 19 | WE1X979 | Knob And Clip Asm |
|
- | |||||
| 21 | WE13X76 | Plate Control |
|
- | |||||
| 24 | WZ02X0510 | Screw |
|
- | |||||
| 26 | WH42X2033 | Trim Asm Top |
|
- | |||||
| 35 | WE4X612 | Switch Asm 5 Button |
|
- | |||||
| 36 | WE1X981 | Button Switch |
|
- | |||||
| 41 | WE1X980 | Clip Knob |
|
- | |||||
| 43 | WH16X343 | Plate Switch |
|
- | |||||
| 70 | WH2X937 | Screw-type A |
|
- | |||||
| 71 | WH2X947 | Screw |
|
- | |||||
| 75 | WG04A00781 | Screw 8-18 Ab Hxw 3/8 (Replaces: WH2X930) |
|
Immediately | $ 3.97 | ||||
| 79 | WE1X690 | Buzzer |
|
- | |||||
| 87 | WE4X605 | Switch Asm Rotary |
|
- | |||||
| 90 | WH16X434 | Bracket Switch |
|
- | |||||
| 100 | WE4X626 | Timer Asm |
|
- | |||||
| 149 | WZ04X0280 | Screw 8-18 Hxw |
|
- | |||||
| 167 | WE2X186 | Screw |
|
- | |||||
| 211 | WE1X553 | Gasket Insulating |
|
- | |||||
| 461 | WZ05X0158 | Screw 8-32x3/8 Grd Scr |
|
- | |||||
| 703 | 8-32X7/16 | Scr (gas Valve Asm) |
|
- | |||||
| 709 | WE1X968 | Orifice |
|
- | |||||
| 710 | WE1X606 | Leak Limiter |
|
- | |||||
| 712 | WE14X141 | Valve Asm |
|
- | |||||
| 713 | WE1X758 | Valve Asm Shutoff |
|
- | |||||
| 714 | WE1X804 | Pipe & Lug Asm |
|
- | |||||
| 715 | WD2X5063 | Scr 8-18 Ph Hx 13/32 S |
|
- | |||||
| 716 | WE1X967 | Burner Asm |
|
- | |||||
| 717 | SDEUNIV | Igniter (Replaces: WE4X444) |
|
Immediately | $ 81.97 | ||||
| 718 | WZ04X0220 | Scr 6-20 Ab Hxw 1/2 S |
|
- | |||||
| 719 | WE1X941 | Spring Asm |
|
- | |||||
| 720 | WE13X116 | Bracket Igniter |
|
- | |||||
| 721 | WE13X118 | Bracket Spacer |
|
- | |||||
| 723 | WE13X117 | Bracket Valve |
|
- | |||||
| 725 | WH12X237 | Housing Terminal |
|
- | |||||
| 726 | 6-32X7/16 | Scr (gas Valve Asm) |
|
- | |||||
| 727 | WH1X1719 | Terminal |
|
- | |||||
| 728 | WH12X242 | Housing Terminal |
|
- | |||||
| 729 | WE4X560 | Coil Asm Split Coil |
|
- | |||||
| 730 | 8-32X5/8 | Scr (gas Valve Asm) |
|
- | |||||
| 1002 | WH46X211 | Weld Asm-housing Wh |
|
- | |||||
| 1002 | WH46X215 | Weld Asm-housing Ha |
|
- | |||||
| 1002 | WH46X212 | Weld Asm-housing Ad |
|
- | |||||
| 9999 | 49-9065 | Pm Instal Instr |
|
- | |||||
| 9999 | 49-9459 | Pm Use & Care Book |
|
- | |||||
| 9999 | 49-9456 | Pm Instruction Sheet |
|
- |
