View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

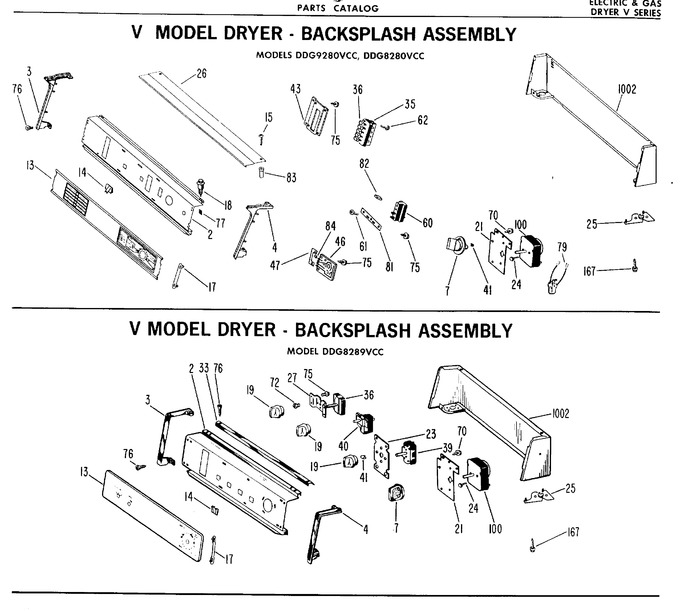

1 - V Model Dryer - Backsplash Assembly
2 - Cabinet Asm.
3 - Cabinet Front Asm.
4 - Blower & Drive Asm.
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WE19X735 | Escutcheon Asm |
|
- | |||||
| 3 | WE19X519 | End Trim Lh |
|
- | |||||
| 4 | WE19X520 | End Trim Rh |
|
- | |||||
| 7 | WE1X946 | Knob - Clip Asm |
|
- | |||||
| 13 | WE19X737 | Switch Trim Asm |
|
- | |||||
| 14 | WE1X762 | Clip Grounding |
|
- | |||||
| 15 | WZ04X0319 | Scr 8-18 Ba Opr 1 7/16 S |
|
- | |||||
| 17 | WH1X2008 | Clip Trim |
|
- | |||||
| 18 | WE2X208 | Screw |
|
- | |||||
| 21 | WE13X76 | Plate Control |
|
- | |||||
| 24 | WZ02X0510 | Screw |
|
- | |||||
| 25 | WE1X926 | Gasket-housing |
|
- | |||||
| 26 | WE19X738 | Trim Asm-top |
|
- | |||||
| 36 | WH1X2257 | Button Switch |
|
- | |||||
| 41 | WE1X5201 | Clip Knob |
|
- | |||||
| 43 | WH16X343 | Plate Switch |
|
- | |||||
| 58 | WE4X534 | Switch-selector |
|
- | |||||
| 60 | WE4X542 | Switch-selector |
|
- | |||||
| 61 | 6-20X3/8 | Screw 6-20 X 3/8 Hex |
|
- | |||||
| 62 | 8-18X3/4 | Screw 8-18 X 3/4 Hex |
|
- | |||||
| 70 | WH2X937 | Screw-type A |
|
- | |||||
| 75 | WG04A00781 | Screw 8-18 Ab Hxw 3/8 (Replaces: WH2X930) |
|
Immediately | $ 3.97 | ||||
| 76 | WZ05X0120 | Screw |
|
- | |||||
| 77 | WE2X196 | Speed Clip |
|
- | |||||
| 79 | WE1X690 | Buzzer |
|
- | |||||
| 81 | WH16X347 | Strap |
|
- | |||||
| 82 | WE1X839 | Button-switch |
|
- | |||||
| 83 | WE1X685 | Spacer |
|
- | |||||
| 100 | WE4X533 | Timer Asm |
|
- | |||||
| 167 | WE2X186 | Screw |
|
- | |||||
| 459 | WE2X92 | Washer Cup |
|
- | |||||
| 461 | WZ05X0158 | Screw 8-32x3/8 Grd Scr |
|
- | |||||
| 1002 | WE19X703 | Backsplash Wrapper Cf |
|
- | |||||
| 1002 | WE19X701 | Backsplash Wrapper Fa |
|
- | |||||
| 1002 | WE19X702 | Backsplash Wrapper Ha |
|
- | |||||
| 1002 | WE20X441 | Backsplash Wrapper Wh |
|
- | |||||
| 1002 | WE19X704 | Backsplash Wrapper Ad |
|
- | |||||
| 9999 | 49-9376 | Instruction Sheet |
|
- | |||||
| 9999 | 49-9332 | Use - Care Book |
|
- | |||||
| 9999 | 49-9016 | Installation Instr 036 |
|
- |
