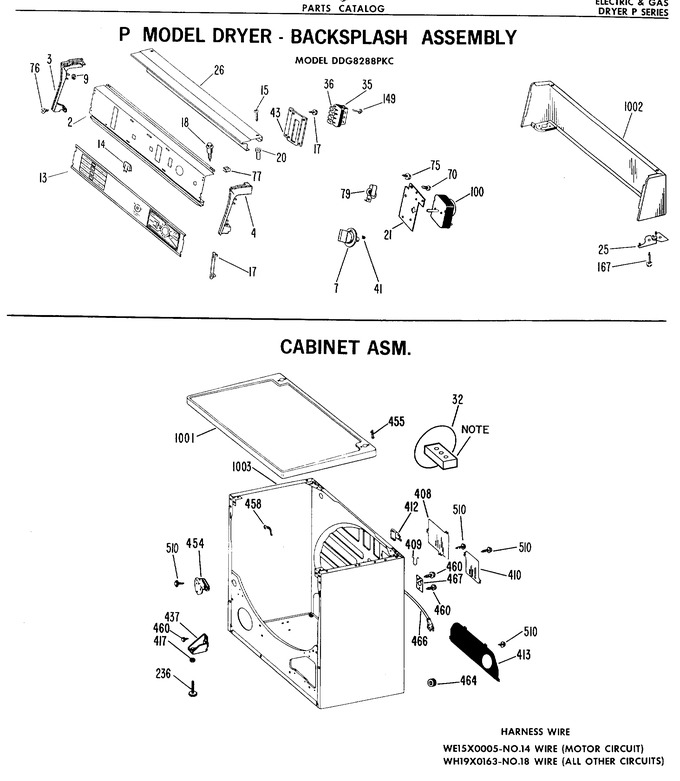

1 - P Model Dryer - Backsplash Assembly
2 - Cabinet Front Asm.
3 - Blower & Drive Asm.
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WE19X735 | Escutcheon Asm |
|
- | |||||
| 3 | WE19X519 | End Trim Lh |
|
- | |||||
| 4 | WE19X520 | End Trim Rh |
|
- | |||||
| 7 | WE1X946 | Knob - Clip Asm |
|
- | |||||
| 13 | WE19X742 | Switch Trim Asm |
|
- | |||||
| 14 | WE1X762 | Clip Grounding |
|
- | |||||
| 15 | WZ04X0319 | Scr 8-18 Ba Opr 1 7/16 S |
|
- | |||||
| 17 | WH1X2008 | Clip Trim |
|
- | |||||
| 18 | WE2X208 | Screw |
|
- | |||||
| 21 | WE13X76 | Plate Control |
|
- | |||||
| 24 | WZ02X0510 | Screw |
|
- | |||||
| 25 | WE1X926 | Gasket-housing |
|
- | |||||
| 26 | WE19X675 | Trim Asm-top |
|
- | |||||
| 32 | WH16X370 | Strap Steel |
|
- | |||||
| 36 | WH1X2257 | Button Switch |
|
- | |||||
| 41 | WE1X5201 | Clip Knob |
|
- | |||||
| 43 | WH16X343 | Plate Switch |
|
- | |||||
| 58 | WE4X534 | Switch-selector |
|
- | |||||
| 60 | WE4X542 | Switch-selector |
|
- | |||||
| 61 | 6-20X3/8 | Screw 6-20 X 3/8 Hex |
|
- | |||||
| 62 | 8-18X3/4 | Screw 8-18 X 3/4 Hex |
|
- | |||||
| 70 | WH2X937 | Screw-type A |
|
- | |||||
| 75 | WG04A00781 | Screw 8-18 Ab Hxw 3/8 (Replaces: WH2X930) |
|
Immediately | $ 3.97 | ||||
| 76 | WZ05X0120 | Screw |
|
- | |||||
| 77 | WE2X196 | Speed Clip |
|
- | |||||
| 79 | WE1X690 | Buzzer |
|
- | |||||
| 81 | WH16X347 | Strap |
|
- | |||||
| 82 | WE1X839 | Button-switch |
|
- | |||||
| 83 | WE1X685 | Spacer |
|
- | |||||
| 100 | WE4X533 | Timer Asm |
|
- | |||||
| 167 | WE2X186 | Screw |
|
- | |||||
| 236 | WG04L00345 | Scr 5/16-24 Lvl 2 S (Replaces: WE2X229) |
|
Immediately | $ 4.04 | ||||
| 408 | WE1X754 | Cover-bearing |
|
- | |||||
| 409 | WE1X353 | Hanger-cable |
|
- | |||||
| 410 | WE1X755 | Cover-terminal |
|
- | |||||
| 412 | WH1X1923 | Clip Cover |
|
- | |||||
| 413 | WE14X103 | Panel-access |
|
- | |||||
| 415 | WZ04X0345 | Screw 8-18x5/8 Hxw |
|
- | |||||
| 417 | WZ07X0038 | Nut |
|
- | |||||
| 437 | WE13X94 | Support |
|
- | |||||
| 454 | WE13X93 | Slide Asm |
|
- | |||||
| 455 | WH1X1946 | Strap Cover |
|
- | |||||
| 458 | WE1X408 | Clip Cable |
|
- | |||||
| 459 | WE2X92 | Washer Cup |
|
- | |||||
| 460 | 10-16X1/2 | Screw 10-16 X 1/2 Hex |
|
- | |||||
| 461 | WZ05X0158 | Screw 8-32x3/8 Grd Scr |
|
- | |||||
| 464 | WE1X744 | Grommet |
|
- | |||||
| 466 | WH19X5028 | Cordset Asm-grounding |
|
- | |||||
| 467 | WE1X925 | Plate-cordset |
|
- | |||||
| 510 | WE2X263 | Screw 10-16x1/2 Hxw |
|
- | |||||
| 562 | WE4X545 | Thermostat-drum Inlet |
|
- | |||||
| 1001 | WE20X583 | Weld Asm-cover Ad |
|
- | |||||
| 1001 | WE20X584 | Weld Asm-cover Cf |
|
- | |||||
| 1001 | WE20X585 | Weld Asm-cover Fa |
|
- | |||||
| 1001 | WE20X586 | Weld Asm-cover Ha |
|
- | |||||
| 1001 | WE20X582 | Weld Asm-cover Wh |
|
- | |||||
| 1002 | WE19X702 | Backsplash Wrapper Ha |
|
- | |||||
| 1002 | WE19X703 | Backsplash Wrapper Cf |
|
- | |||||
| 1002 | WE19X704 | Backsplash Wrapper Ad |
|
- | |||||
| 1002 | WE20X441 | Backsplash Wrapper Wh |
|
- | |||||
| 1002 | WE19X701 | Backsplash Wrapper Fa |
|
- | |||||
| 1003 | WE20X535 | Base - Wrapper Asm Ha |
|
- | |||||
| 1003 | WE20X534 | Base - Wrapper Asm Fa |
|
- | |||||
| 1003 | WE20X507 | Base - Wrapper Asm Wh |
|
- | |||||
| 1003 | WE20X536 | Base - Wrapper Asm Cf |
|
- | |||||
| 1003 | WE20X537 | Base - Wrapper Asm Ad |
|
- | |||||
| 9999 | 49-9016 | Installation Instr 036 |
|
- | |||||
| 9999 | 49-9256 | Instruction Sheet |
|
- | |||||
| 9999 | 49-9332 | Use - Care Book |
|
- |
