1 - Backsplash
2 - Component Group
3 - Component Group
4 - Component Group

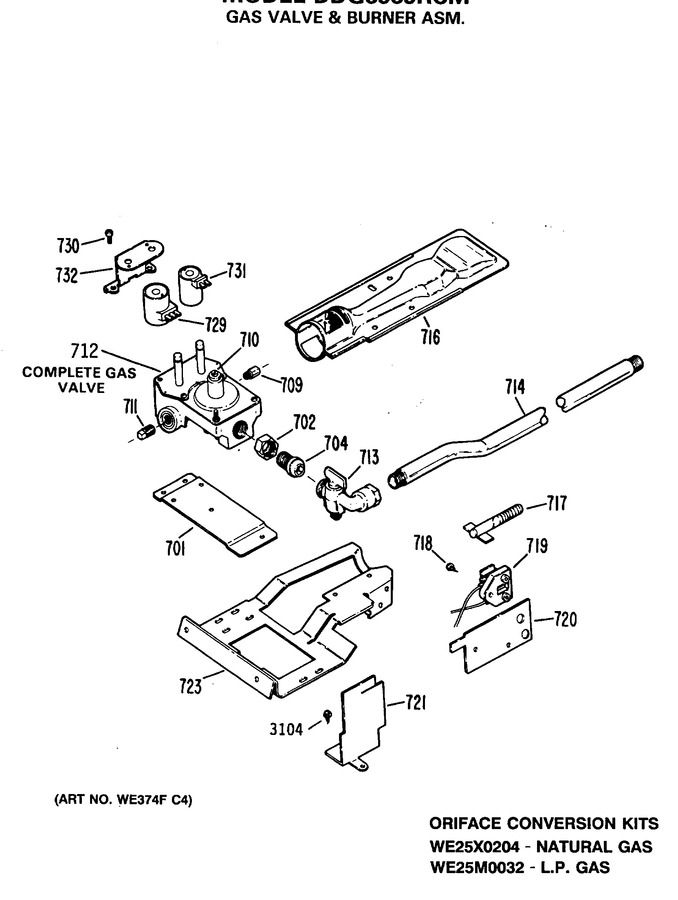

5 - Gas Valve & Burner Asm.
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 701 | WE13X166 | Bracket Gas Valve |
|
- | |||||
| 702 | WE2X319 | Nut |
|
- | |||||
| 704 | WE2X320 | Nipple Gas Valve |
|
- | |||||
| 709 | WE1X1148 | Orifice |
|
- | |||||
| 710 | WE1X1076 | Leak Limiter |
|
- | |||||
| 711 | 1/8-27 NPT | Plug Pipe (not Stocked) |
|
- | |||||
| 712 | WW02F00099 | Gas Valve Asm (Replaces: WE14X215) |
|
Immediately | $ 171.67 | ||||
| 713 | WE1X1078 | Valve Shutoff |
|
- | |||||
| 714 | WE1X1077 | Pipe & Lug Asm |
|
- | |||||
| 716 | WE1X1068 | Burner Asm |
|
- | |||||
| 717 | SDEUNIV | Igniter (Replaces: WE4X444) |
|
Immediately | $ 81.97 | ||||
| 718 | WZ04X0220 | Scr 6-20 Ab Hxw 1/2 S |
|
- | |||||
| 720 | WE13X116 | Bracket Igniter |
|
- | |||||
| 721 | WE13X118 | Bracket Spacer |
|
- | |||||
| 723 | WE13X117 | Bracket Valve |
|
- | |||||
| 729 | 279834 | Coil Dual (Replaces: WE4X692) |
|
Immediately | $ 32.85 | ||||
| 730 | WE2X333 | Screw (coil Mtg Brkt) |
|
- | |||||
| 731 | 279834 | Coil Main (Replaces: WE4X693) |
|
Immediately | $ 32.85 | ||||
| 732 | WE13X169 | Brkt. Coil |
|
- |
