SELECT A DIAGRAM

1 - V Model Dryer - Backsplash Assembly

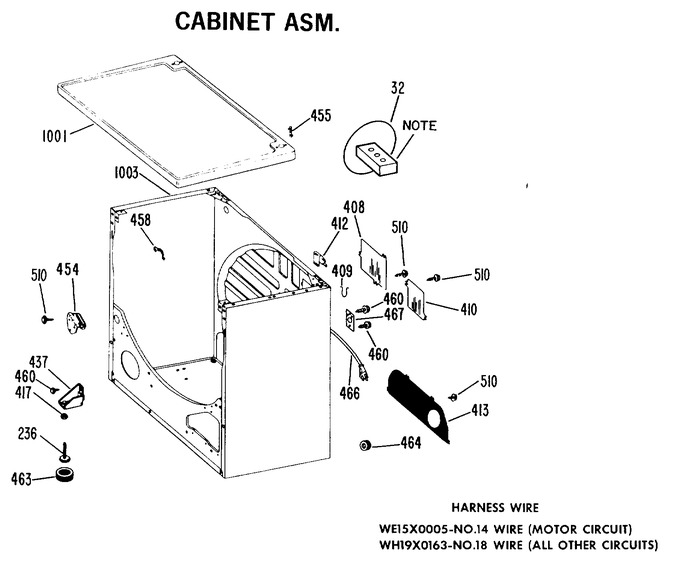

2 - Cabinet Asm.


3 - Cabinet Front Asm.


4 - Blower & Drive Asm.


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
32	WH16X370		Strap-steel		Appelez-nous	-
236	WG04L00345		Screw 5/16-24x2 3/16 Lvl   (Replaces: WE2X229)			Immediately	$ 4.04
408	WE1X754		Cover-bearing		Appelez-nous	-
409	WE1X353		Hanger-cable		Appelez-nous	-
410	WE1X755		Cover-terminal		Appelez-nous	-
412	WH1X1923		Clip-cover		Appelez-nous	-
413	WE14X103		Panel-access		Appelez-nous	-
417	WZ07X0038		Nut		Appelez-nous	-
437	WE13X94		Support		Appelez-nous	-
454	WE13X93		Slide Asm		Appelez-nous	-
455	WH1X1946		Strap-cover		Appelez-nous	-
458	WE1X408		Clip		Appelez-nous	-
460	10-16X1/2		Screw 10-16 X 1/2 Hex		Appelez-nous	-
464	WE1X744		Grommet		Appelez-nous	-
466	WH19X5028		Cordset Asm-grounding		Appelez-nous	-
467	WE1X925		Plate-cordset		Appelez-nous	-
510	WE2X263		Screw 10-16 X 1/2 Hex		Appelez-nous	-
1001	WE20X582		Weld Asm-cover Wh		Appelez-nous	-
1001	WE20X583		Weld Asm-cover Ad		Appelez-nous	-
1001	WE20X584		Weld Asm-cover Cf		Appelez-nous	-
1001	WE20X585		Weld Asm-cover Fa		Appelez-nous	-
1001	WE20X586		Weld Asm-cover Ha		Appelez-nous	-
1003	WE20X536		Base & Wrapper Asm Cf		Appelez-nous	-
1003	WE20X537		Base & Wrapper Asm Ad		Appelez-nous	-
1003	WE20X507		Base & Wrapper Asm Wh		Appelez-nous	-
1003	WE20X534		Base & Wrapper Asm Fa		Appelez-nous	-
1003	WE20X535		Base & Wrapper Asm Ha		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
