SELECT A DIAGRAM

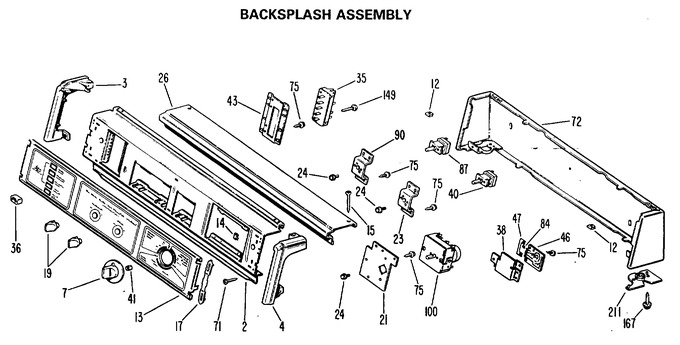

1 - Backsplash Assembly


2 - Cabinet Assembly


3 - Cabinet Front Asm.


4 - Blower & Drive Asm.


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WE19X719		Escutcheon Asm		Appelez-nous	-
3	WH42X2199		Trim End L.h.		Appelez-nous	-
4	WH42X2200		Trim End R.h.		Appelez-nous	-
7	WE1X978		Knob Clip Asm		Appelez-nous	-
12	WB1X358		Speednut		Appelez-nous	-
13	WE19X903		Switch Trim Asm		Appelez-nous	-
14	WE1X762		Clip Grounding		Appelez-nous	-
15	WE2X367		Scr 8-18 Ab Opr 3/4 S		Appelez-nous	-
17	WH1X2008		Clip Trim		Appelez-nous	-
19	WE1X1069		Knob Clip Asm		Appelez-nous	-
21	WE13X76		Plate Control		Appelez-nous	-
23	WH16X401		Bracket Switch		Appelez-nous	-
24	WZ02X0510		Screw		Appelez-nous	-
26	WH42X2201		Trim Top		Appelez-nous	-
35	WE4X613		Switch Asm 5 Button		Appelez-nous	-
36	WE1X981		Button Switch		Appelez-nous	-
38	WE13X156		Bracket Circuit Board		Appelez-nous	-
40	WE1X916		Buzzer (signal)		Appelez-nous	-
41	WE1X980		Clip Knob		Appelez-nous	-
43	WE13X192		Plate Switch		Appelez-nous	-
46	WE4X425		Board Asm Circuit		Appelez-nous	-
46	WZ04X0238		Scr 8-18 Ab Hw 1/2 S		Appelez-nous	-
47	WE1X706		Retainer		Appelez-nous	-
71	WH2X947		Screw		Appelez-nous	-
72	WH46X215		Weld Asm-housing Ha		Appelez-nous	-
72	WH46X212		Weld Asm-housing Ad		Appelez-nous	-
72	WH46X211		Weld Asm-housing Wh		Appelez-nous	-
75	WG04A00781		Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930)			Immediately	$ 3.97
84	WE1X704		Terminal Special		Appelez-nous	-
87	WE4X605		Switch Asm Rotary		Appelez-nous	-
90	WH16X434		Bracket Switch		Appelez-nous	-
100	WE4X766		Timer Asm		Appelez-nous	-
149	WZ04X0280		Screw 8-18 Hxw		Appelez-nous	-
167	WE2X186		Screw		Appelez-nous	-
211	WE1X553		Gasket Insulating		Appelez-nous	-
461	WZ05X0158		Screw 8-32x3/8 Grd Scr		Appelez-nous	-
9999	31-2377		Mini Manual		Appelez-nous	-
9999	31-1822		Pm Instruction Instal		Appelez-nous	-
9999	49-9670		Pm Manual Use & Care		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
