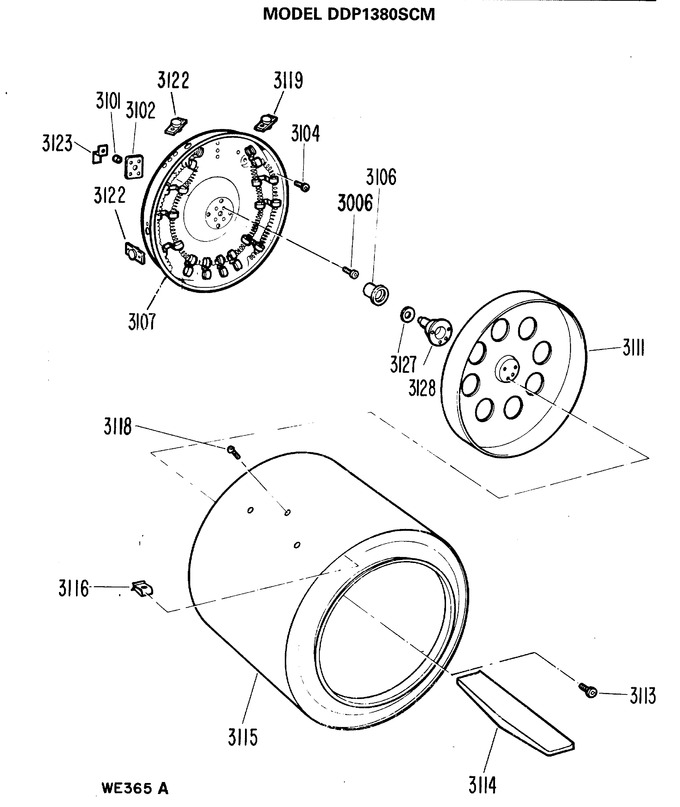

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3006 | WE2X263 | Scr |
|
- | |||||
| 3102 | WG04A00067 | Retainer Bearing (Replaces: WE1M300) |
|
$ 8.14 | |||||
| 3104 | WW01A00521 | Screw (Replaces: WE1M280) |
|
$ 3.97 | |||||
| 3106 | WE3X65 | Sleeve Bearing |
|
- | |||||
| 3107 | WE11X21 | Heater & Housing Asm |
|
- | |||||
| 3111 | WE14X173 | Deflector |
|
- | |||||
| 3113 | WE2X153 | Screw |
|
- | |||||
| 3114 | WE1X1093 | Baffle Drum |
|
- | |||||
| 3115 | WE21X61 | Drum |
|
- | |||||
| 3116 | WE2X326 | Clip |
|
- | |||||
| 3118 | WH2M342 | Screw |
|
- | |||||
| 3119 | WE4M133 | Thermostat Non-reset |
|
- | |||||
| 3122 | WE4M160 | Thermostat Sfty 210/180 |
|
- | |||||
| 3122 | WE4M173 | Thermostat,sfty 128/100 |
|
- | |||||
| 3123 | WE1X627 | Strap Ground |
|
- | |||||
| 3127 | WE2X195 | Washer |
|
- | |||||
| 3128 | WE03X0039R | Shaft & Brkt Drum |
|
- |
