View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

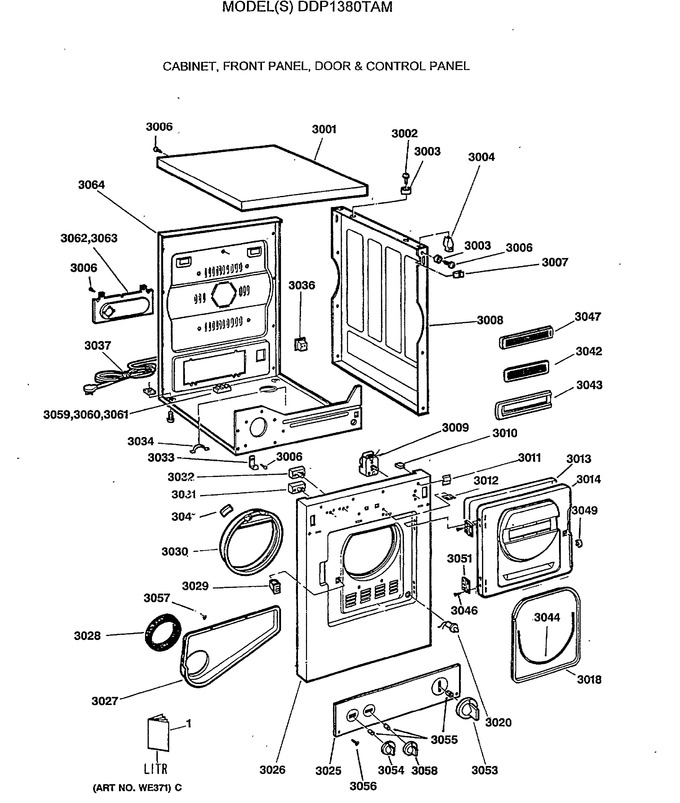

1 - Cabinet, Front Panel, Door & Control Panel
2 - Drum
3 - Blower
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-1819 | Install Instructions |
|
- | |||||
| 1 | 31-10043 | Mini Manual |
|
- | |||||
| 1 | 49-9888 | Use & Care Book |
|
- | |||||
| 80 | WE4M198 | Resistor |
|
- | |||||
| 100 | WE1M364 | Terminal, "u" |
|
- | |||||
| 3001 | WE20X695 | Top, Cover Ad |
|
- | |||||
| 3001 | WE20X694 | Top, Cover Wh |
|
- | |||||
| 3002 | BUY LOCAL | Screw 10-12x1&3/8 Ph Pan |
|
- | |||||
| 3003 | WE1X1079 | Bumper |
|
- | |||||
| 3004 | WE1X1080 | Clip Top Cover |
|
- | |||||
| 3006 | WE2X263 | Scr |
|
- | |||||
| 3007 | WE2X196 | Speed Clip |
|
- | |||||
| 3008 | WE20X696 | Panel Side Wh |
|
- | |||||
| 3008 | WE20X697 | Panel Side Ad |
|
- | |||||
| 3009 | WE4M197 | Timer |
|
$ 433.96 | |||||
| 3010 | WE1X408 | Clip Cable |
|
- | |||||
| 3011 | WE2X321 | Speed Clip |
|
- | |||||
| 3012 | WE1M317 | Retainer Bottom Trim |
|
- | |||||
| 3013 | WW02L00171 | Door Panel Outer Wh (Replaces: WE10M86) |
|
$ 61.04 | |||||
| 3013 | WE10M87 | Door Panel Outer Ad |
|
- | |||||
| 3014 | WE10M99 | Door Panel Inner Ad |
|
- | |||||
| 3014 | WE10M98 | Door Panel Inner Wh |
|
- | |||||
| 3018 | WW03L00119 | Gasket Door (Replaces: WE9M16) |
|
Immediately | $ 24.11 | ||||
| 3020 | WG03L00054 | Switch Door (Replaces: WE4X197) |
|
Immediately | $ 40.27 | ||||
| 3025 | WE19M980 | Switch Trim Asm. |
|
- | |||||
| 3026 | WE20M279 | Front Cabinet Wh |
|
- | |||||
| 3026 | WE20M280 | Front Cabinet Ad |
|
- | |||||
| 3027 | WE14M60 | Duct Air |
|
- | |||||
| 3028 | WE9X38 | Seal Felt (Replaces: WE9X35) |
|
$ 58.83 | |||||
| 3029 | 5366021400 | Latch Door (Replaces: WE1X1032) |
|
Immediately | $ 62.21 | ||||
| 3030 | WE3M21 | Bearing Drum |
|
- | |||||
| 3031 | WE4M145 | Switch Start |
|
$ 77.15 | |||||
| 3032 | WE4M175 | Switch Temp |
|
- | |||||
| 3033 | WE13X167 | Bracket Cab Front |
|
- | |||||
| 3034 | WE1X408 | Clip Cable |
|
- | |||||
| 3036 | WE4X721 | Receptacle |
|
- | |||||
| 3037 | WE26M329 | Cord Set |
|
- | |||||
| 3041 | WE1M404 | Slide |
|
- | |||||
| 3042 | WW02L00754 | Grid (Replaces: WE1M406) |
|
Immediately | $ 49.25 | ||||
| 3043 | WW02L00754 | Slide Grid (Replaces: WE1M407) |
|
Immediately | $ 49.25 | ||||
| 3044 | WW02L00178 | Gasket Door Short (Replaces: WE9M17) |
|
Immediately | $ 19.56 | ||||
| 3046 | WW02A00097 | Screw (Replaces: WE2M153) |
|
$ 3.97 | |||||
| 3047 | WG04F00431 | Filter (Replaces: WE18M20) |
|
Immediately | $ 26.73 | ||||
| 3049 | 5366021400 | Strike (Replaces: WE1M314) |
|
Immediately | $ 62.21 | ||||
| 3051 | WE1M315 | Hinge Door |
|
- | |||||
| 3053 | WE1M357 | Knob Timer |
|
- | |||||
| 3054 | WG04L00314 | Knob (Replaces: WE1M356) |
|
$ 13.10 | |||||
| 3055 | WE1X980 | U Clip |
|
- | |||||
| 3056 | WH2M385 | Screw |
|
- | |||||
| 3057 | WE2M150 | Screw Ad |
|
- | |||||
| 3057 | WE2M149 | Screw Wh |
|
- | |||||
| 3058 | WE1M355 | Knob, Sel Switch |
|
- | |||||
| 3059 | WE4X168 | Block Terminal |
|
$ 29.10 | |||||
| 3060 | WZ07X0031 | Nut |
|
- | |||||
| 3061 | WE1X339 | Ground Strap |
|
- | |||||
| 3062 | WE1X1087 | Knockout |
|
- | |||||
| 3063 | WE1X1088 | Cover Knockout |
|
- | |||||
| 3064 | WE20M278 | Cabinet Base & Rear |
|
- |
