SELECT A DIAGRAM

1 - Controls & Backsplash


2 - Front Panel


3 - Door


4 - Cabinet


5 - Blower & Motor


6 - Gas Valve & Burner Assembly


7 - Drum

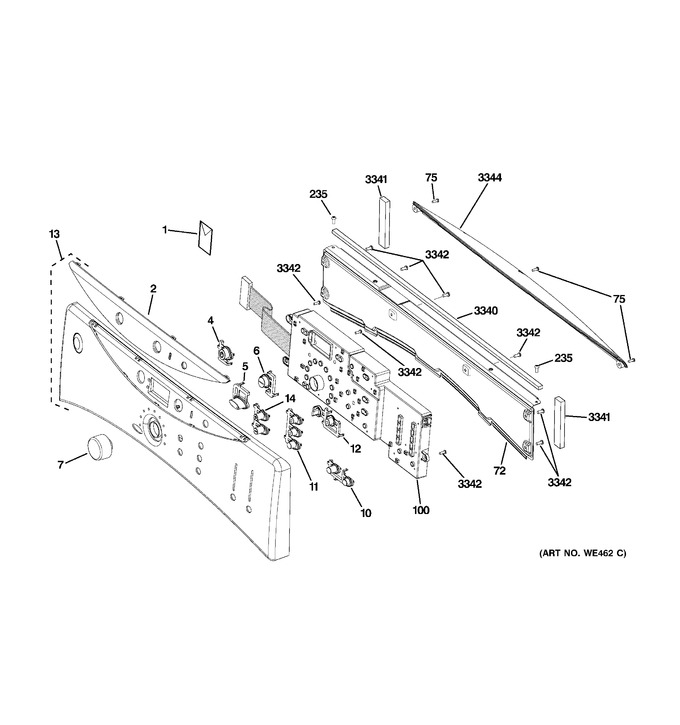

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	49-90208		Use & Care		Appelez-nous	-
1	31-16125		Install Instruction Gas		Appelez-nous	-
1	31-16123		Mini-manual Wiring Gas		Appelez-nous	-
2	WE19M1425		Lexan Window English		Appelez-nous	-
4	WG04L04010		Power Button   (Replaces: WE1M557)				$ 18.37
5	WE1M558		My Cycle Button		Appelez-nous	-
6	WE1M559		Start Pause Button		Appelez-nous	-
7	WG04L00306		Rotary Knob   (Replaces: WE1M592)				$ 26.71
10	WE1M560		Bar Graph Buttons		Appelez-nous	-
11	WE1M561		Option Buttons		Appelez-nous	-
12	WE1M562		Lock Button		Appelez-nous	-
13	WE19M1428		Control Panel Asm Wh		Appelez-nous	-
14	WE1M563		Plus Minus Buttons		Appelez-nous	-
72	WE1M564		Front Sheild		Appelez-nous	-
75	WE2M210		Screw Back Housing		Appelez-nous	-
100	WE4M328		User Interface Board Asm		Appelez-nous	-
235	WE2X263		Screw		Appelez-nous	-
3340	WG04L01698		Gasket Seal Top Front Sh   (Replaces: WE1M565)				$ 4.20
3341	WE1M566		Gasket Seal Side Front S		Appelez-nous	-
3342	WE2M211		Screw Front		Appelez-nous	-
3344	WE19M1437		Back Housing Wh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
