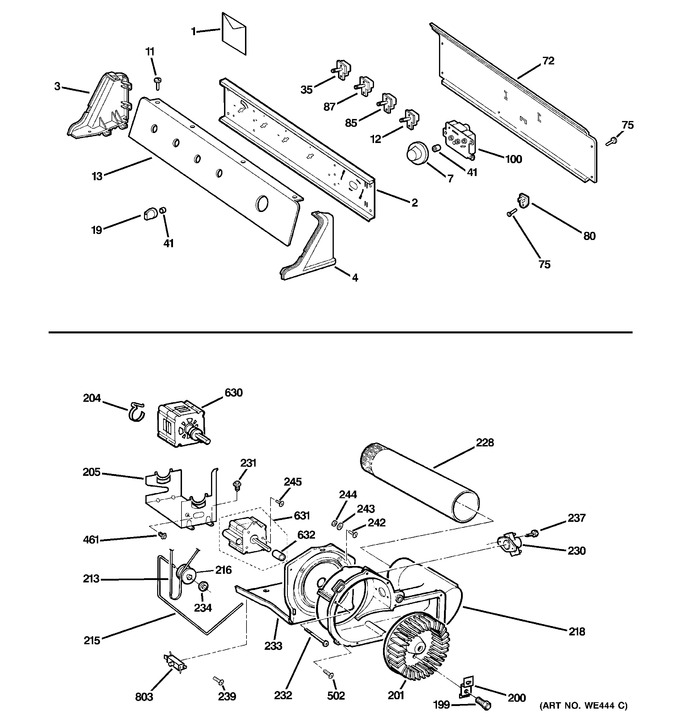

1 - Backsplash, Blower & Motor Assembly
2 - Front Panel & Door
3 - Cabinet
4 - Drum
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 49-90173-1 | Use & Care |
|
- | |||||
| 1 | 31-16109 | Install Instruction Elec |
|
- | |||||
| 1 | 31-16107 | Mini-manual |
|
- | |||||
| 2 | WH46X10046 | Support Switch |
|
- | |||||
| 3 | WE19M1238 | End Cap Lh Bq |
|
- | |||||
| 4 | WE19M1239 | End Cap Rh Bq |
|
- | |||||
| 7 | WE1M483 | Knob Asm Dryer Bq |
|
- | |||||
| 11 | WH02X10089 | Scr 8-18 Ab Flt 9/16 Sn |
|
- | |||||
| 12 | WE4M257 | Buzzer Variable |
|
- | |||||
| 13 | WE19M1378 | Switch Trim Bq |
|
- | |||||
| 19 | WH01X10140 | Knob & Clip Asm Bq |
|
- | |||||
| 35 | WG04F03522 | Switch Rotary Start (Replaces: WE4X881) |
|
Immediately | $ 134.04 | ||||
| 41 | WE1X980 | U Clip |
|
- | |||||
| 72 | WE20X811 | Rear Panel |
|
- | |||||
| 75 | WE2M173 | Screw |
|
- | |||||
| 80 | WE04X10029 | Resistor 4500 Ohm |
|
- | |||||
| 85 | WE4M177 | Sw Rotary X-tra Care |
|
- | |||||
| 87 | WE04X10084 | Switch-temp 4 Pos |
|
- | |||||
| 100 | WE4M316 | Timer |
|
- | |||||
| 199 | WE2M98 | Screw |
|
- | |||||
| 200 | WW02A00038 | Blower Clamp (Replaces: WE00M111) |
|
$ 3.64 | |||||
| 200 | WW02A00039 | Blower Clamp (Replaces: WE00M112) |
|
$ 3.64 | |||||
| 201 | WE1X306 | Blower Wheel |
|
- | |||||
| 204 | WE1X921 | Strap Motor |
|
- | |||||
| 205 | WE13M38 | Motor Plate |
|
- | |||||
| 213 | WW02F00854 | Belt Drive (Replaces: WE12M22) |
|
Immediately | $ 26.44 | ||||
| 215 | WE3M24 | Idler Arm |
|
- | |||||
| 216 | WW02F00871 | Pulley Idler (Replaces: WE12M8) |
|
Immediately | $ 5.36 | ||||
| 218 | WE1M473 | Gasket Seal, Hsng Exh. |
|
- | |||||
| 218 | WE14M93 | Blower Housing |
|
- | |||||
| 228 | WW02L00148 | Pipe Exaust (Replaces: WE14M90) |
|
$ 14.02 | |||||
| 230 | WG04F01127 | T'stat Outlet Ctrl (Replaces: WE4M317) |
|
Immediately | $ 14.92 | ||||
| 231 | WE2M187 | Screw |
|
- | |||||
| 232 | WW02A00032 | Screw (Replaces: WE2M156) |
|
$ 3.57 | |||||
| 233 | WE13M37 | Mtr Plate Long Vent |
|
- | |||||
| 234 | WG04A00124 | Cap Nut (Replaces: WE2M96) |
|
$ 9.11 | |||||
| 237 | WE2M154 | Screw |
|
- | |||||
| 239 | WE2M167 | Screw |
|
- | |||||
| 242 | WE2M207 | Screw |
|
- | |||||
| 243 | WH2M283 | Washer Steel |
|
- | |||||
| 244 | WE2M206 | Rubber Grommet |
|
- | |||||
| 245 | WZ05X0250 | Scr 8-32 T Hxw 5/16 S |
|
- | |||||
| 461 | WZ05X0158 | Screw 8-32x3/8 Grd Scr |
|
- | |||||
| 502 | WW02A00031 | Screw #10 (Replaces: WE2M174) |
|
Immediately | $ 3.57 | ||||
| 630 | WE17M29 | Mtr/pulley Asm L.vent |
|
- | |||||
| 631 | WE17M30 | Mtr/cap/shaft Asm |
|
- | |||||
| 632 | 160.60000.01 | Shaft Adapter |
|
- | |||||
| 803 | WW02F00249 | Switch Interlock (Replaces: WD21X557) |
|
Immediately | $ 15.72 |
