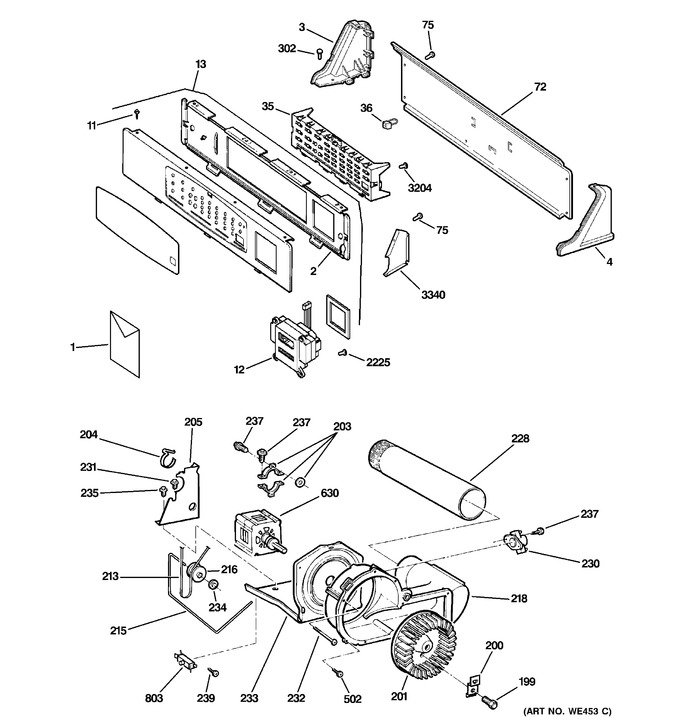

1 - Backsplash, Blower & Motor Assembly
2 - Front Panel & Door
3 - Cabinet
4 - Drum
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-16060 | Install/warranty Instr |
|
- | |||||
| 1 | 31-15475 | Install Instructions |
|
- | |||||
| 1 | 31-16055 | Mini-manual |
|
- | |||||
| 2 | WH46X10074 | Support Switch |
|
- | |||||
| 3 | WE19M938 | End Cap Lh Bk |
|
- | |||||
| 4 | WE19M939 | End Cap Rh Bk |
|
- | |||||
| 11 | WH2X1233 | Scr 8-18 Ab Trt 5/8 S |
|
- | |||||
| 12 | WH12X10217 | Reader Card Asm |
|
- | |||||
| 13 | WE19M1232 | Control Panel Asm. Chr/b |
|
- | |||||
| 35 | WE4M302 | L3 Electronic Board |
|
- | |||||
| 36 | WD21X10068 | Harness Control |
|
- | |||||
| 36 | WD21X10026 | Harness |
|
- | |||||
| 72 | WE20X811 | Rear Panel |
|
- | |||||
| 75 | WE2M173 | Screw |
|
- | |||||
| 75 | WE2M175 | Screw # 8 |
|
- | |||||
| 199 | WE2M98 | Screw |
|
- | |||||
| 200 | WW02A00038 | Blower Clamp (Replaces: WE00M111) |
|
$ 3.64 | |||||
| 200 | WW02A00039 | Blower Clamp (Replaces: WE00M112) |
|
$ 3.64 | |||||
| 201 | WW02A00073 | Blower Wheel (Replaces: WE16M15) |
|
Immediately | $ 57.82 | ||||
| 203 | WE2M176 | Washer Rubber |
|
- | |||||
| 203 | WE13X200 | Strap Motor |
|
- | |||||
| 204 | WE1X921 | Strap Motor |
|
- | |||||
| 205 | WE13M39 | Motor Support |
|
- | |||||
| 213 | WW02F00854 | Belt Drive (Replaces: WE12M22) |
|
Immediately | $ 26.44 | ||||
| 215 | WW02A00060 | Idler Arm (Replaces: WE3M25) |
|
$ 11.34 | |||||
| 216 | WW02F00871 | Pulley Idler (Replaces: WE12M8) |
|
Immediately | $ 5.36 | ||||
| 218 | WE14M93 | Blower Housing |
|
- | |||||
| 228 | WW02L00148 | Pipe Exaust (Replaces: WE14M90) |
|
$ 14.02 | |||||
| 230 | WG04F01127 | T'stat Bias Drum Out (Replaces: WE4M216) |
|
Immediately | $ 14.92 | ||||
| 231 | WE2M187 | Screw |
|
- | |||||
| 232 | WW02A00032 | Screw (Replaces: WE2M202) |
|
$ 3.57 | |||||
| 233 | WD2M174 | Absorber-foam |
|
- | |||||
| 233 | WE13M35 | Motor Plate (e-coat) |
|
- | |||||
| 234 | WG04A00124 | Cap Nut (Replaces: WE2M96) |
|
$ 9.11 | |||||
| 235 | WW01A00521 | Screw (Replaces: WE1M280) |
|
$ 3.57 | |||||
| 237 | WE2M154 | Screw |
|
- | |||||
| 239 | WE2M167 | Screw |
|
- | |||||
| 302 | WE2M189 | Screw |
|
- | |||||
| 502 | WW02A00031 | Screw #10 (Replaces: WE2M174) |
|
Immediately | $ 3.57 | ||||
| 630 | WG04F00726 | Motor & Pulley Asm. (Replaces: WE17M22) |
|
Immediately | $ 261.56 | ||||
| 803 | WW02F00249 | Switch Interlock (Replaces: WD21X557) |
|
Immediately | $ 15.72 | ||||
| 2225 | WR1X1966 | Screw 6-32 Pl Ihw 3/8 |
|
- | |||||
| 3204 | WH2M270 | Screw |
|
- | |||||
| 3340 | WE1M556 | Sheild Plate |
|
- |
