1 - Backsplash, Blower & Motor
2 - Front Panel
3 - Cabinet
4 - Drum
5 - Gas Valve & Burner Assembly
SELECT A DIAGRAM
New Model Search:

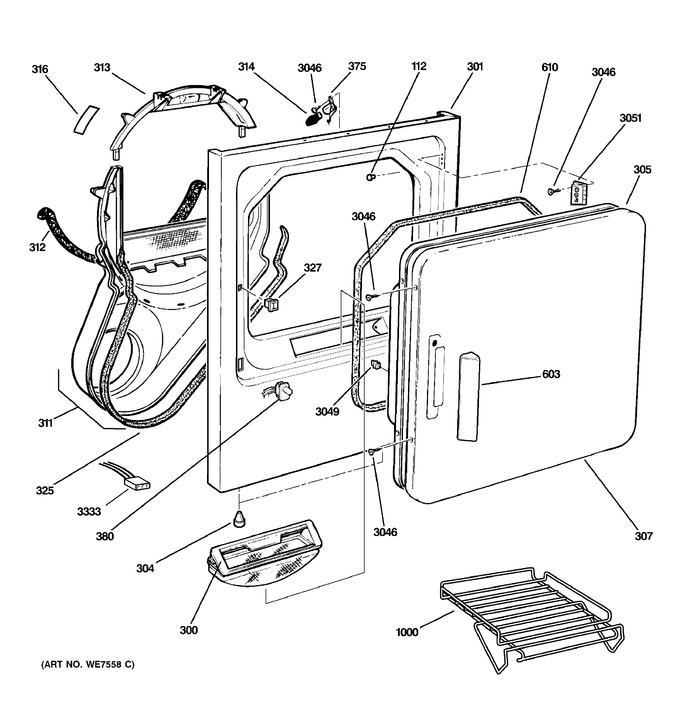

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 112 | WR02X10459 | Plug Door Rvsbl Bq |
|
- | |||||
| 300 | WG04F00416 | Trap Lint (Replaces: WE18M19) |
|
Immediately | $ 45.26 | ||||
| 301 | WE20M308 | Cabinet Front Bq |
|
- | |||||
| 301 | WE1M400 | Plate Dampening Cab Frnt |
|
- | |||||
| 304 | WG04L00345 | Front Stabilizing Legs (Replaces: WE2M188) |
|
Immediately | $ 4.04 | ||||
| 305 | WE10M105 | Panel Door Inner Bq |
|
- | |||||
| 307 | WE10M104 | Panel Outer Bq |
|
- | |||||
| 311 | WW02F00592 | Duct Air (Replaces: WE14M92) |
|
Immediately | $ 188.15 | ||||
| 312 | WE9M15 | Felt |
|
- | |||||
| 313 | WW02L00517 | Bearing Drum (Replaces: WE3M20) |
|
Immediately | $ 97.59 | ||||
| 314 | WW03F00458 | Lamp (Replaces: WE4X718) |
|
Immediately | $ 13.37 | ||||
| 316 | WG04L00096 | Slide Drum (wh) (Replaces: WE1M333) |
|
Immediately | $ 3.97 | ||||
| 316 | WW02A00129 | Slide Drum (blue) (Replaces: WE1M316) |
|
Immediately | $ 17.47 | ||||
| 325 | WE1M376 | Gasket |
|
$ 26.89 | |||||
| 327 | 5366021400 | Latch (Replaces: WE1X903) |
|
Immediately | $ 62.21 | ||||
| 375 | WE5M5 | Socket Asm |
|
- | |||||
| 380 | W10169313 | Switch Door (Replaces: WE4M157) |
|
Immediately | $ 35.24 | ||||
| 603 | WE1M482 | Handle Door Wh |
|
- | |||||
| 610 | WG01L00271 | Gasket Door (Replaces: WE9M13) |
|
$ 16.97 | |||||
| 1000 | WE1M396 | Rack Drying |
|
- | |||||
| 3046 | WW02A00097 | Screw (Replaces: WE2M153) |
|
$ 3.97 | |||||
| 3049 | 5366021400 | Strike (Replaces: WE1M314) |
|
Immediately | $ 62.21 | ||||
| 3051 | WW02L00028 | Hinge Door (Replaces: WE1M394) |
|
Immediately | $ 9.92 | ||||
| 3333 | WE5M11 | Harness Sensor Rods |
|
- |
