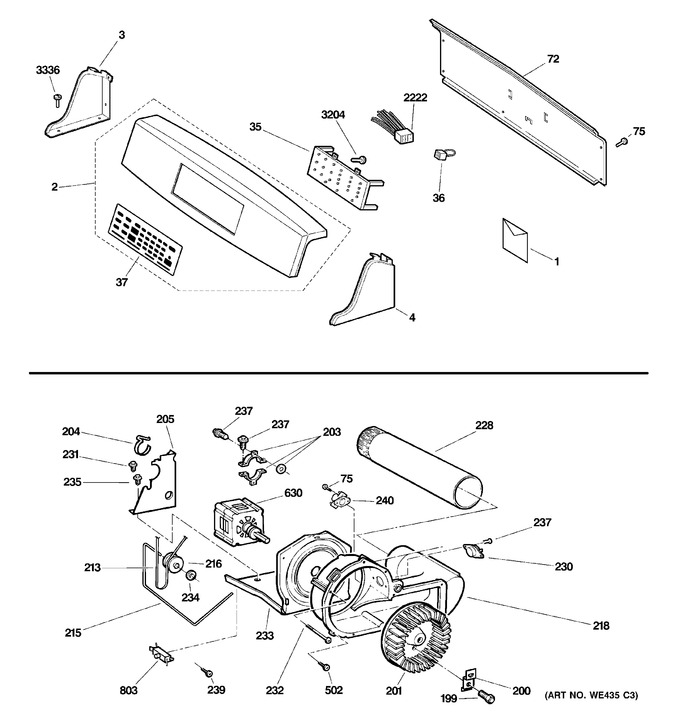

1 - Backsplash, Blower & Motor
2 - Front Panel & Door
3 - Cabinet
4 - Drum
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-15475 | Install Instructions |
|
- | |||||
| 1 | 49-90160 | Use & Care |
|
- | |||||
| 1 | 31-16103 | Mini Manual |
|
- | |||||
| 2 | WE19M1363 | Backsplash Asm |
|
- | |||||
| 3 | WE19M1314 | Dryer End Cap Lh Bq |
|
- | |||||
| 4 | WE19M1313 | Dryer End Cap Rh Bq |
|
- | |||||
| 35 | WE4M296 | L3 Electronic Module |
|
- | |||||
| 36 | WD21X10024 | Connector Model Select |
|
- | |||||
| 37 | WE19M1367 | Overlay Asm |
|
- | |||||
| 72 | WE19M1310 | Back Panel |
|
- | |||||
| 75 | WE2M173 | Screw |
|
- | |||||
| 75 | WE2M175 | Screw # 8 |
|
- | |||||
| 199 | WE2M98 | Screw |
|
- | |||||
| 200 | WW02A00039 | Blower Clamp (Replaces: WE00M112) |
|
$ 3.64 | |||||
| 200 | WW02A00038 | Blower Clamp (Replaces: WE00M111) |
|
$ 3.64 | |||||
| 201 | WE1X306 | Blower Wheel |
|
- | |||||
| 203 | WE2M176 | Washer Rubber |
|
- | |||||
| 203 | WE13X200 | Strap Motor |
|
- | |||||
| 204 | WE1X921 | Strap Motor |
|
- | |||||
| 205 | WE13M39 | Motor Support |
|
- | |||||
| 213 | WW02F00854 | Belt Drive (Replaces: WE12M22) |
|
Immediately | $ 26.44 | ||||
| 215 | WW02A00060 | Idler Arm (Replaces: WE3M25) |
|
$ 11.34 | |||||
| 216 | WW02F00871 | Pulley Idler (Replaces: WE12M8) |
|
Immediately | $ 5.36 | ||||
| 218 | WE1M473 | Gasket Seal, Hsng Exh |
|
- | |||||
| 218 | WE14M89 | Blower Housing |
|
- | |||||
| 228 | WW02L00148 | Pipe Exaust (Replaces: WE14M90) |
|
$ 14.02 | |||||
| 230 | WG04F01127 | T'stat Bias Drum Out (Replaces: WE4M216) |
|
Immediately | $ 14.92 | ||||
| 231 | WE2M187 | Screw |
|
- | |||||
| 232 | WW02A00032 | Screw (Replaces: WE2M202) |
|
$ 3.57 | |||||
| 233 | WD2M174 | Absorber-foam |
|
- | |||||
| 233 | WE13M35 | Motor Plate (e-coat) |
|
- | |||||
| 234 | WG04A00124 | Cap Nut (Replaces: WE2M96) |
|
$ 9.11 | |||||
| 235 | WW01A00521 | Screw (Replaces: WE1M280) |
|
$ 3.57 | |||||
| 237 | WE2M154 | Screw |
|
- | |||||
| 239 | WE2M167 | Screw |
|
- | |||||
| 240 | WE4M299 | Thermistor , Outlet Cntr |
|
- | |||||
| 502 | WW02A00031 | Screw # 10 (Replaces: WE2M174) |
|
Immediately | $ 3.57 | ||||
| 630 | WG04F00726 | Motor & Pulley Asm. (Replaces: WE17M22) |
|
Immediately | $ 261.56 | ||||
| 803 | WW02F00249 | Switch Interlock (Replaces: WD21X557) |
|
Immediately | $ 15.72 | ||||
| 2222 | WE5M9 | Harness Sensors |
|
- | |||||
| 3204 | WH2M270 | Screw |
|
- | |||||
| 3336 | WE2M189 | Screw |
|
- |
