SELECT A DIAGRAM
1 - Backsplash, Blower & Motor
2 - Front Panel & Door

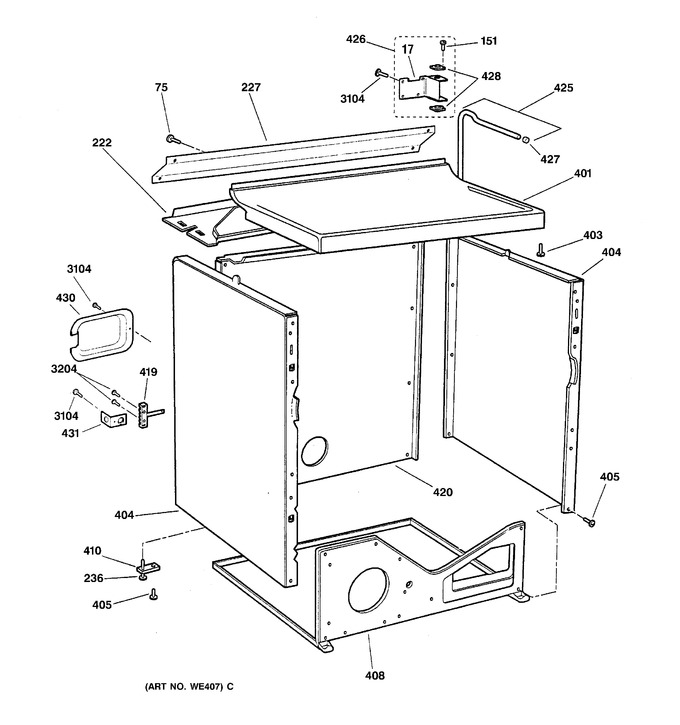

3 - Cabinet
4 - Drum
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 75 | WE2M180 | Screw |
|
- | |||||
| 75 | WE2M173 | Screw |
|
- | |||||
| 151 | WE2M175 | Screw |
|
- | |||||
| 222 | WE20M253 | Cover Bottom |
|
- | |||||
| 227 | WE13M26 | Shield |
|
- | |||||
| 236 | WE1M368 | Levelling Screw |
|
- | |||||
| 401 | WE1M401 | Plate Dampening Top Cvr |
|
- | |||||
| 401 | WG04L00116 | Top Cover Wh (Replaces: WE20M286) |
|
$ 11.91 | |||||
| 403 | WE2M160 | Screw |
|
- | |||||
| 404 | WE20M260 | Panel Side Wh |
|
- | |||||
| 405 | WH2M388 | Screw |
|
- | |||||
| 408 | WE20M293 | Base Cabinet |
|
- | |||||
| 410 | WG04L00183 | Brkt Lvl Screw Frnt (Replaces: WE1M467) |
|
$ 6.09 | |||||
| 410 | WW02F00139 | Brkt Lvl Screw Rear (Replaces: WE1M468) |
|
$ 21.93 | |||||
| 419 | WE4M266 | Term Block & Grnd Strap |
|
- | |||||
| 420 | WE20M300 | Panel Rear 7 Cu Ft |
|
- | |||||
| 425 | WE1M447 | Hanger Pole Asm. Cplt. |
|
- | |||||
| 426 | WE1M448 | Bracket Pole Asm Cplt |
|
- | |||||
| 427 | WE1M441 | End Bumper Pole |
|
- | |||||
| 428 | WE1M442 | Bushing Pole Bracket |
|
- | |||||
| 430 | WE1M458 | T-block Cover |
|
- | |||||
| 431 | WE1M457 | Strain Relief Bracket |
|
- | |||||
| 3104 | WW01A00521 | Screw (Replaces: WE1M280) |
|
$ 3.97 | |||||
| 3204 | WH2M270 | Screw |
|
- |
