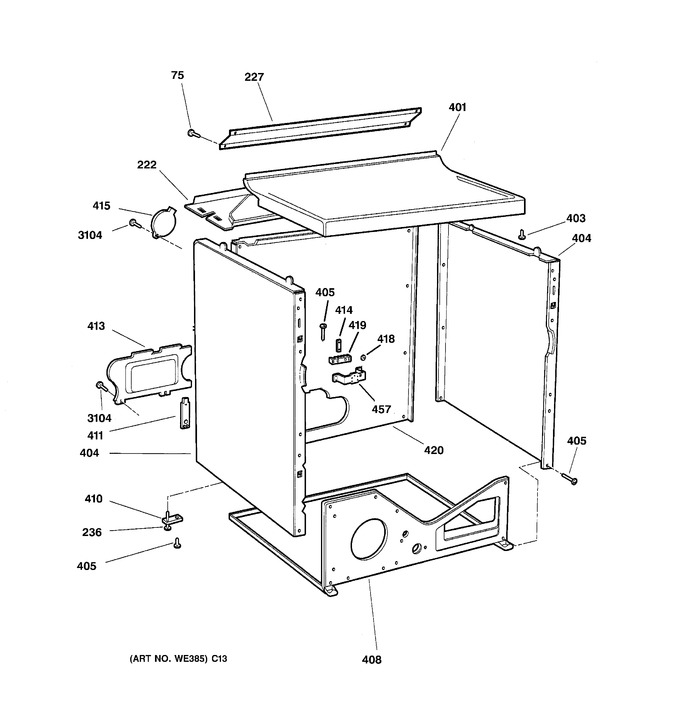

1 - Backsplash, Blower & Motor Assembly


2 - Front Panel & Door


3 - Cabinet


4 - Drum


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
75	WE2M173		Screw		Appelez-nous	-
222	WE20M253		Cover Bottom		Appelez-nous	-
227	WE13M26		Shield		Appelez-nous	-
236	WE1M368		Levelling Screw		Appelez-nous	-
401	WG04L00116		Top Cover Wh   (Replaces: WE20M286)				$ 11.91
401	WE1M401		Plate Dampening Top Cvr		Appelez-nous	-
403	WE2M160		Screw		Appelez-nous	-
404	WE1M399		Plate Dampening Side Pnl		Appelez-nous	-
404	WE20M260		Panel Side Wh		Appelez-nous	-
405	WH2M388		Screw		Appelez-nous	-
408	WE20M293		Base Cabinet		Appelez-nous	-
410	WE1M379		Brkt Lvl Screw Rear		Appelez-nous	-
410	WE1M378		Brkt Lvl Screw Frnt		Appelez-nous	-
411	WE1M341		Cover Plate		Appelez-nous	-
413	WE1M392		Panel Access		Appelez-nous	-
414	WE1X339		Ground Strap		Appelez-nous	-
415	WE1M393		Knockout		Appelez-nous	-
418	WZ07X0031		Nut		Appelez-nous	-
419	WE4X168		Block Terminal				$ 29.10
420	WE20M258		Panel Rear		Appelez-nous	-
457	WE1M340		Bracket Term Block		Appelez-nous	-
3104	WW01A00521		Screw   (Replaces: WE1M280)				$ 3.97
