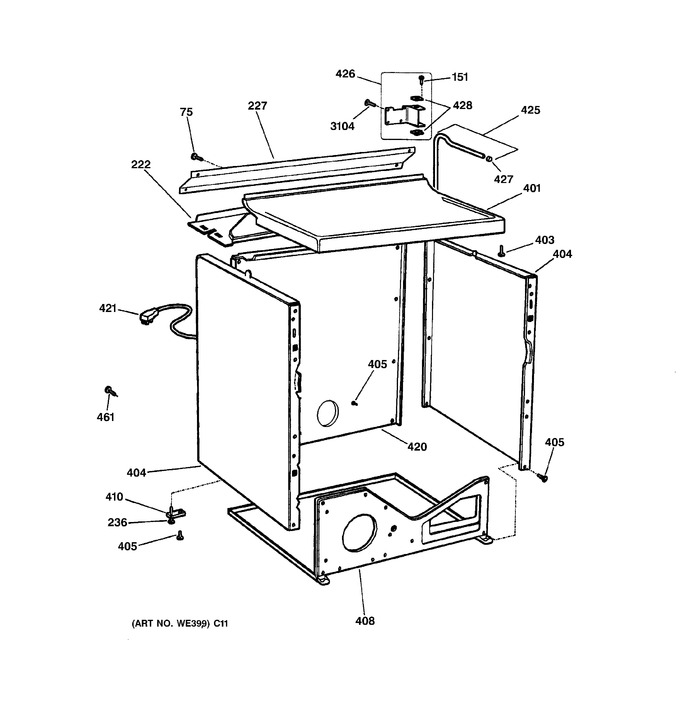

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Backsplash, Blower & Motor
2 - Front Panel & Door
3 - Cabinet
4 - Drum
5 - Gas Valve & Burner Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 75 | WE2M173 | Screw |
|
- | |||||
| 151 | WE2M175 | Screw |
|
- | |||||
| 222 | WE20M253 | Cover Bottom |
|
- | |||||
| 227 | WE13M26 | Shield |
|
- | |||||
| 236 | WE1M368 | Leveling Screw |
|
- | |||||
| 401 | WE20M287 | Top Cover Ad |
|
- | |||||
| 401 | WE1M401 | Plate Dampening Top Cvr |
|
- | |||||
| 403 | WE2M160 | Screw |
|
- | |||||
| 404 | WE20M261 | Panel Side Ad |
|
- | |||||
| 405 | WH2M388 | Screw |
|
- | |||||
| 408 | WE20M304 | Cabinet Base |
|
- | |||||
| 410 | WW02F00139 | Brkt Lvl Screw Rear (Replaces: WE1M468) |
|
$ 21.93 | |||||
| 410 | WG04L00183 | Brkt Lvl Screw Frnt (Replaces: WE1M467) |
|
$ 6.09 | |||||
| 420 | WE20M300 | Panel Rear 7 Cu Ft |
|
- | |||||
| 421 | WE26M335 | Cordset |
|
- | |||||
| 425 | WE1M447 | Hanger Pole Asm. Cplt. |
|
- | |||||
| 426 | WE1M448 | Bracket Pole Asm Cplt |
|
- | |||||
| 427 | WE1M441 | End Bumper Pole |
|
- | |||||
| 428 | WE1M442 | Bushing Pole Bracket |
|
- | |||||
| 461 | WZ05X0158 | Screw, Ground |
|
- |
