SELECT A DIAGRAM

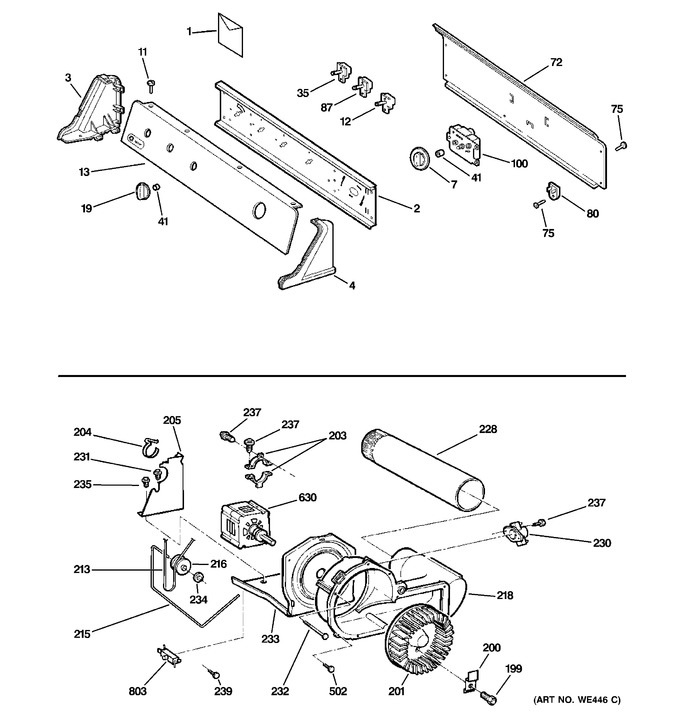

1 - Controls, Backsplash, Blower & Motor
2 - Front Panel & Door
3 - Cabinet
4 - Drum
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 49-90203 | Use & Care |
|
- | |||||
| 1 | 31-15475 | Install Instructions |
|
- | |||||
| 1 | 31-16093 | Mini Manual |
|
- | |||||
| 2 | WE19M1286 | Support Switch |
|
- | |||||
| 2 | WE2M201 | Screw Ground |
|
- | |||||
| 3 | WE19M940 | End Cap Lh Wh |
|
- | |||||
| 4 | WE19M941 | End Cap Rh Wh |
|
- | |||||
| 7 | WW02L00247 | Knob Asm Dryer Wh (Replaces: WE1M443) |
|
Immediately | $ 10.54 | ||||
| 11 | WH02X10089 | Scr 8-18 Ab Flt 9/16 Sn |
|
- | |||||
| 12 | WE4M257 | Buzzer Variable |
|
- | |||||
| 13 | WE19M1413 | Switch Trim Panel Asm |
|
- | |||||
| 19 | WH01X10107 | Knob & Clip Asm Wh |
|
- | |||||
| 35 | WW02F00230 | Start Switch (Replaces: WE4M315) |
|
Immediately | $ 40.01 | ||||
| 41 | WE1X980 | U Clip |
|
- | |||||
| 72 | WE20X811 | Rear Panel |
|
- | |||||
| 75 | WE2M175 | Screw # 8 |
|
- | |||||
| 75 | WE2M173 | Screw |
|
- | |||||
| 80 | WE04X10029 | Resistor 4500 Ohm |
|
- | |||||
| 87 | WE04X10084 | Switch-temp 4 Pos |
|
- | |||||
| 100 | WG04F03502 | Timer Dryer (Replaces: WE4M271) |
|
$ 114.38 | |||||
| 199 | WE2M98 | Screw |
|
- | |||||
| 200 | WW02A00039 | Blower Clamp (Replaces: WE00M112) |
|
$ 3.64 | |||||
| 200 | WW02A00038 | Blower Clamp (Replaces: WE00M111) |
|
$ 3.64 | |||||
| 201 | WW02A00073 | Blower Wheel (Replaces: WE16M15) |
|
Immediately | $ 57.82 | ||||
| 203 | WE13X200 | Strap Motor |
|
- | |||||
| 204 | WE1X921 | Strap Motor |
|
- | |||||
| 205 | WE13M39 | Motor Support |
|
- | |||||
| 213 | WW02F00854 | Belt Drive (Replaces: WE12M22) |
|
Immediately | $ 26.44 | ||||
| 215 | WW02A00060 | Idler Arm (Replaces: WE3M25) |
|
$ 11.34 | |||||
| 216 | WW02F00871 | Pulley Idler (Replaces: WE12M8) |
|
Immediately | $ 5.36 | ||||
| 218 | WE1M473 | Gasket Seal, Hsng Exh |
|
- | |||||
| 218 | WE14M93 | Blower Housing |
|
- | |||||
| 228 | WW02L00148 | Pipe Exaust (Replaces: WE14M90) |
|
$ 14.02 | |||||
| 230 | WG04F01127 | T'stat Bias Drum Out (Replaces: WE4M216) |
|
Immediately | $ 14.92 | ||||
| 231 | WE2M187 | Screw |
|
- | |||||
| 232 | WW02A00032 | Screw (Replaces: WE2M202) |
|
$ 3.57 | |||||
| 233 | WE13M35 | Motor Plate (e-coat) |
|
- | |||||
| 234 | WG04A00124 | Cap Nut (Replaces: WE2M96) |
|
$ 9.11 | |||||
| 235 | WW01A00521 | Screw (Replaces: WE1M280) |
|
$ 3.57 | |||||
| 237 | WE2M154 | Screw |
|
- | |||||
| 239 | WE2M167 | Screw |
|
- | |||||
| 502 | WW02A00031 | Screw #10 (Replaces: WE2M174) |
|
Immediately | $ 3.57 | ||||
| 630 | WG04F00726 | Motor & Pulley Asm. (Replaces: WE17M22) |
|
Immediately | $ 261.56 | ||||
| 803 | WW02F00249 | Switch Interlock (Replaces: WD21X557) |
|
Immediately | $ 15.72 |
